Product Details:
|
| Product Name: | Air Operated Diaphragm Pump | Pressure: | Low Pressure |
|---|---|---|---|
| Place Of Origin: | Shanghai, China | Model Number: | RVS-64355-T |
| Head: | 230 FT / 70meter | Warranty: | 1 Year Except Easy Wear Parts |
| Material Of Diaphragm: | Hytrel | Weight: | 6.8 Kg |
| High Light: | 3/4" Pneumatic Diaphragm Pump,Pneumatic Diaphragm Pump for Acid,Solvents aodd pump capacity 15 gpm |
||

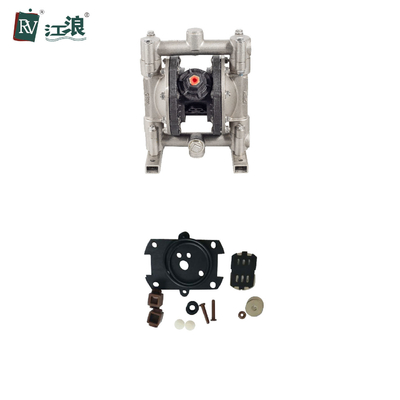

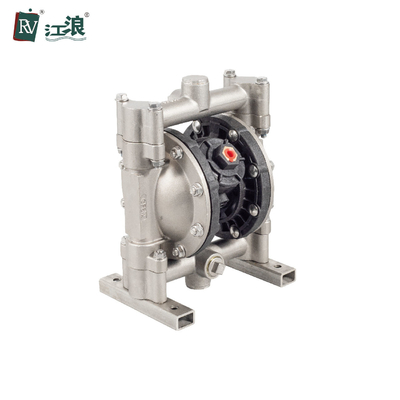

3/4" Pneumatic Diaphragm Pump For Acid Solvents Aodd Pump Capacity 15 Gpm
Air Operated Diaphragm Pump Application:
Air Operated Diaphragm Pumps can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
Product Specification
| Horsepower: | 100 psi(0.7Mpa, 7bar) |
| Max Capacity | 15 gpm(57lpm) |
| Application | World Water Solutions |
| Structure | Diaphragm Pump |
| Max Head | 70 m |
| Advantages: | Explosion-proof |
| Air Inlet Size | 1/4 in.npt(f) |
| Air Outlet Size | 3/8 in.npt(f) |
| Fluid Inlet Size | 3/4 in. |
| Fluid Outlet Size | 3/4 in. |
| Single Package | 300×200×350mm |
Air Operated Diaphragm Pump Application
The air diaphragm pumps use compressed air as power source, and it is the most advanced type of air diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
Industrial and Chemical
The selection of available housing and elastomer materials make our air operated diaphragm pumps adaptable for most highly aggressive or corrosive media. RV air operated diaphragm pumps’ outstanding chemical resistance and robust design contribute to a reliable and safe operation.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: The use of products have?
A: The air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
The air diaphragm pump can suck the paint, pigment, glue and adhesive etc.
The air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
The air diaphragm pump can suck various toxin and flammable or volatility liquid etc.
The air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How product quality and service?
A: Our pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
