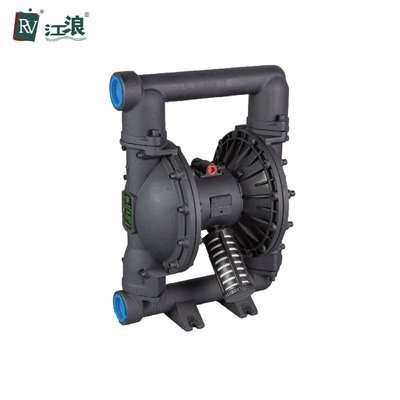

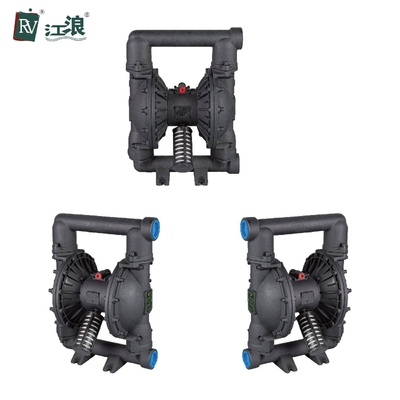

Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity

Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity
Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity

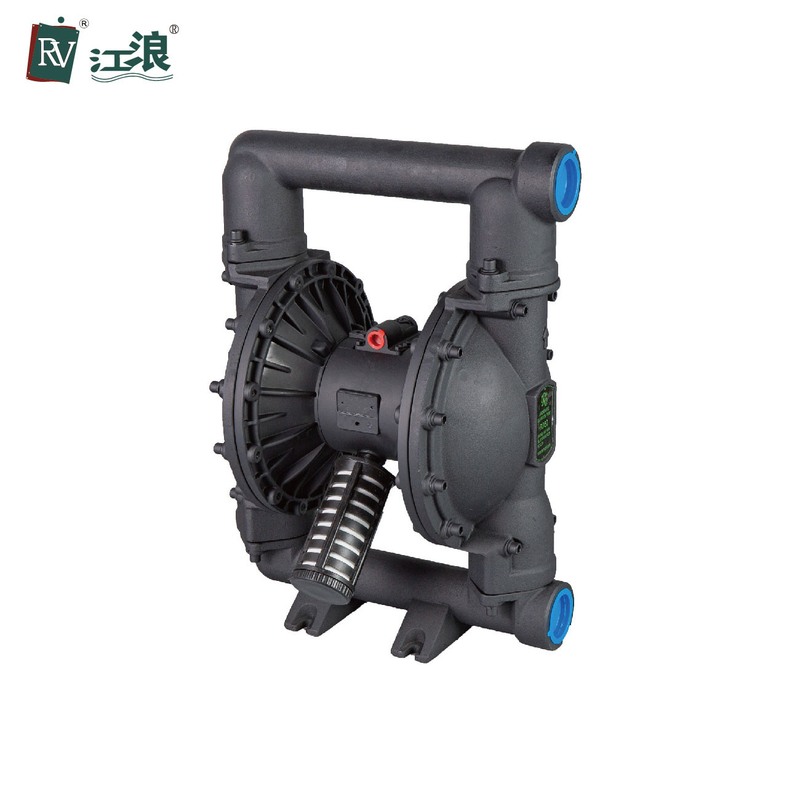

Large Image :  Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-F6355-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity

Description
Pump Materal: Ductile Iron Typical Fluids Handled: Building Wastewater
Typical Application: Mining Max. Free Flow Delivery: 570 Lpm
Max. Pump Speed: 145 Cpm Displacement Per Cycle: 2.0 Gallon (7.6 Liter)
Size: 2 Inch Noise Level: Lower Than 75 Db
Max. Fluid Working Pressure: 120 Psi
High Light:

air operated dosing pump

,

Air Operated Double Diaphragm Dosing Pump

,

diaphragm type dosing pump

50mm Ductile Iron Pneumatic Diaphragm Pump Medium Viscosity Double Pump

Pneumatic Diaphragm Pumps Tailored to Your Application

RV pneumatic diaphragm pump are available with many flow rates and sizes, allowing you to vary the flow outlet and discharge pressure. Our pneumatic diaphragm pump can run as slow as 0.26 gallons (1 liter) per minute and up to 275 gallons (1079 liters) per minute for larger pump sizes. Adjust fluid pressure up to 120 p.si. (8.4 bar) by using an air filter / regulator and a needle valve.
Each pneumatic diaphragm pump can be customized for your fluid transfer needs. Choose from a wide range of pneumatic diaphragm pump materials, casing options and accessories. Find metal or plastic fluid sections and housings that can handle any fluid, including corrosives and abrasive.


Max Working Pressure120 psi(0.84Mpa, 8.4bar)
Max Flow Rate150 gpm ( 570 lpm )
Max Reciprocating Speed145 cpm
Max Suction Height (Dry Sucking)5m
Max Permitted Grain0.24 in ( 6mm)
Max Air Consumption140scfm(70L/s)
Air Inlet Size1/2 in.npt(f)
Air Outlet Size3/4 in.npt(f)
Fluid Inlet Size2 in.
Fluid Outlet Size2 in.
Net WeightDuctile Iron 57.5 kg




Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity 0


Features

1Ceramic material for main valve and reversing valve ensures longer life, more stability and working in dirty compressed air ( most occasions, air filter become option).
2Without ice with the muffler. Innovative design with the exhaust space of the pump, some of muffler inside, this makes the air outlet smooth.)
3Outward parts of the pump are all die casted aluminum and special environment-protected painting, makes the pump with elegant appearance.
4Large flow capacity. Innovative design of chamber maximizes the flow capacity. Seamless adjustment with inlet valve, or even close the valve, without damaging the pump.
5Low consumption compressed air. Innovative design of the air flow system, minimizes the usage of compressed air to achieve maximum performance.
6Light and small size, movable.
7Modularization of main valve and air motor. No broken, easy to disassemble and repair.


Packing & Shipping:
Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity 1Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity 2
DIAPHRAGM OPTIONS

PTFE
Santoprene
Buna-N
Hytrel

Neoprene

VERSATILITY

This pneumatic diaphragm pump handles viscous fluids, slurries, solid laden fluids, no priming needed, no foaming of fluid pumped, no stall damages, portable

Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity 3Air Operated Double Diaphragm Dosing Pump 50mm Ductile Iron Medium Viscosity 4

INSTALLATION
Be sure the mounting can support the weight of the pneumatic diaphragm pump, hoses, and accessories, as well as the stress during operation progress.

During installation, make sure that the air diaphragm pump has been fixed with bolts on the mounting feet.

In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the pneumatic diaphragm pump.

While fastening the pneumatic diaphragm pump, rubber pad can be padded to reduce the noise and vibration during operation.
