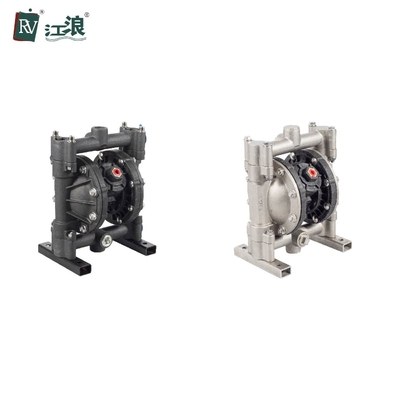

3/4 Inch Metallic Diaphragm Pump For Air With Hytrel Membrane 100 Psi

3/4 Inch Metallic Diaphragm Pump For Air With Hytrel Membrane 100 Psi
3/4 Inch Metallic Diaphragm Pump For Air With Hytrel Membrane 100 Psi

Large Image :  3/4 Inch Metallic Diaphragm Pump For Air With Hytrel Membrane 100 Psi

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-63355-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3/4 Inch Metallic Diaphragm Pump For Air With Hytrel Membrane 100 Psi

Description
Product Name: Air Diaphragm Pump Fuel: Air Driven
Brand Name: RV Model Number: RVA-63355-T
Lift: 230 FT / 70meter Application: Oil • Water • Most Solvents
Material Of Diaphragm: Hytrel Weight: 4.5kg
High Light:

3/4 inch Metallic Diaphragm Pump

,

3/4 inch diaphragm pump

,

hytrel diaphragm pump

3/4 Inch Metallic Diaphragm Pump For Air With Hytrel Membrane 120 Psi



DESCRIPTION



RV pneumatic diaphragm pump are suitable for aggressive liquids, even with viscosity and solids in suspension. They are built with an anti-stalling pneumatic circuit which ensures the highest possible level of security and efficiency and doesn’t require lubricated air.

RV pneumatic diaphragm pump are available in several materials and dimensions and the ATEX version can work in potentially explosive atmosphere.



MAIN FEATURES

  • Available in PP, PVDF and AISI316
  • Suitable for high viscosity fluids and solids in suspension
  • Suitable for corrosive atmospheres
  • Suitable for potentially explosive atmospheres in their ATEX
  • New generation PTFE diaphragms with embodied in/out piston
  • Ecological design ensuring a reduction of air consumption
  • Manufactured with anti-stalling circuit and ice barrier protectives to keep performances unaltered over time
  • Individually tested before shipment
  • Easy assembling and disassembling



Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
Max Capacity 15 gpm ( 57lpm )
Max Reciprocating Speed 400 cpm
Power Pnuematic
Max Permitted Grain 3/32 in ( 2.5mm )
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt (f)
Air Outlet Size 3/8 in.npt (f)
Fluid Inlet Size 3/4 in.
Fluid Outlet Size 3/4 in.
Net Weight 4.5kg






3/4 Inch Metallic Diaphragm Pump For Air With Hytrel Membrane 100 Psi 0




Air Operated Diaphragm Pump Application



The pneumatic diaphragm pumps use compressed air as power source, and it is the most advanced type of pneumatic diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.





Spraying And Cleaning



Pneumatic Diaphragm pumps are perfect for spraying paint, cleaning roofs and spraying conveyers / bottles for anti-static. These pneumatic diaphragm pump are suited for these types of applications due to their durability and the volume produced by each pneumatic diaphragm pump. The pneumatic diaphragm pump, combined with the power of an air compressor, allows cleaning chemicals, paints and other fluids to be dispensed at a constant rate.




FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of pneumatic diaphragm pump have?

A: pneumatic diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

pneumatic diaphragm pump can suck the paint, pigment, glue and adhesive etc.

pneumatic diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

pneumatic diaphragm pump can suck various toxin and flammable or volatility liquid etc.

pneumatic diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How pneumatic diaphragm pump quality and service?

A: Our pneumatic diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
