Product Details:
|
| Pump Materal: | Ductile Iron | Typical Fluids Handled: | Waste Water |
|---|---|---|---|
| Typical Application: | Mining Industry | Max. Free Flow Delivery: | 570 Lpm |
| Max. Pump Speed: | 145 Cpm | Membrane: | Santoprene Diaphragm |
| Size: | 2 Inch | Noise Level: | Lower Than 75 Db |
| Max. Fluid Working Pressure: | 120 Psi | ||
| High Light: | Medium Viscosity diaphragm pump,Air double diaphragm pump repair 2",Double air powered diaphragm pump |
||

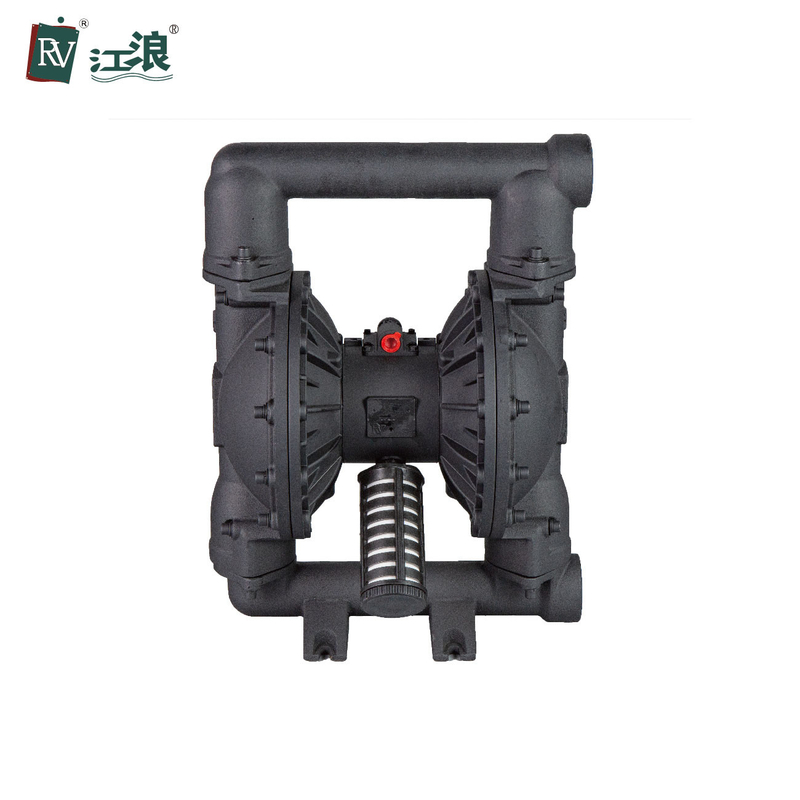

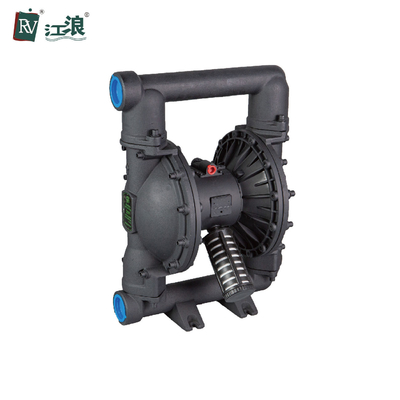

2" Ductile Iron Air Diaphragm Pump High Viscosity Double Pump
RV air diaphragm pump are available with many flow rates and sizes, allowing you to vary the flow outlet and discharge pressure. Our air diaphragm pump can run as slow as 0.26 gallons (1 liter) per minute and up to 275 gallons (1079 liters) per minute for larger pump sizes. Adjust fluid pressure up to 120 p.si. (8.4 bar) by using an air filter / regulator and a needle valve.
Each air diaphragm pump can be customized for your fluid transfer needs. Choose from a wide range of air diaphragm pump materials, casing options and accessories. Find metal or plastic fluid sections and housings that can handle any fluid, including corrosives and abrasive.
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 150 gpm ( 570 lpm ) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.24 in ( 6 mm) |
| Max Air Consumption | 140scfm ( 70L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in. |
| Net Weight | Ductile Iron 57.5 kg |
| 1 | Ceramic material for main valve and reversing valve ensures longer life, more stability and working in dirty compressed air ( most occasions, air filter become option). |
| 2 | Without ice with the muffler. Innovative design with the exhaust space of the pump, some of muffler inside, this makes the air outlet smooth.) |
| 3 | Outward parts of the pump are all die casted aluminum and special environment-protected painting, makes the pump with elegant appearance. |
| 4 | Large flow capacity. Innovative design of chamber maximizes the flow capacity. Seamless adjustment with inlet valve, or even close the valve, without damaging the pump. |
| 5 | Low consumption compressed air. Innovative design of the air flow system, minimizes the usage of compressed air to achieve maximum performance. |
| 6 | Light and small size, movable. |
| 7 | Modularization of main valve and air motor. No broken, easy to disassemble and repair. |
Packing & Shipping:
DIAPHRAGM OPTIONS
PTFE
Santoprene
Buna-N
Hytrel
Neoprene
VERSATILITY
This air diaphragm pump handles viscous fluids, slurries, solid laden fluids, no priming needed, no foaming of fluid pumped, no stall damages, portable
INSTALLATION
Be sure the mounting can support the weight of the air diaphragm pump, hoses, and accessories, as well as the stress during operation progress.
During installation, make sure that the air diaphragm pump has been fixed with bolts on the mounting feet.
In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the air diaphragm pump.
While fastening the air diaphragm pump, rubber pad can be padded to reduce the noise and vibration during operation.
