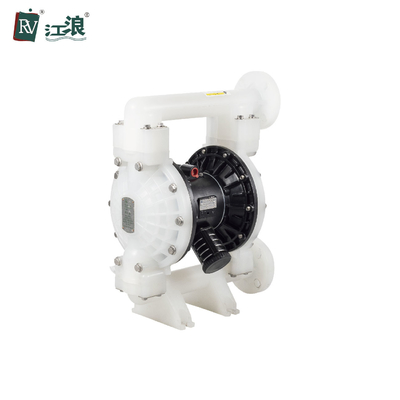

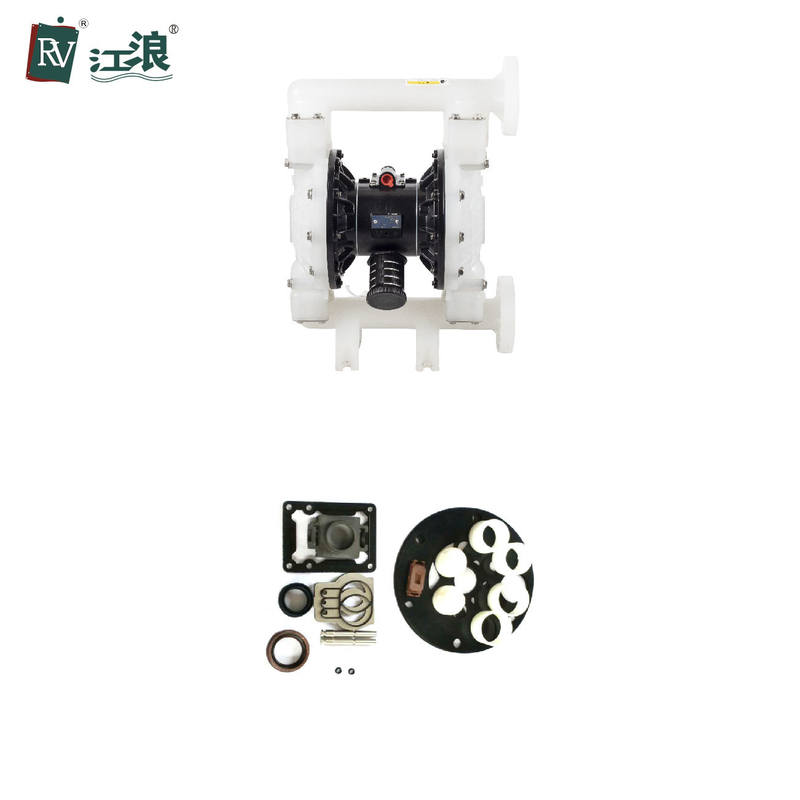

Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm

Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm
Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm

Large Image :  Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-B2A66-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm

Description
Materal: PP Brand: RV
Color: White Flow Rate: 446L/M
Weight: 15kgs Carton Size: 49*28*66cm
Size: 1 1/2 Inch Model: RVP-B2A66-F
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

chemical diaphragm pump gas powered

,

Pneumatic Chemical Diaphragm Pump

,

Chemical air driven diaphragm pump

Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm



How Do Air Diaphragm Pump Work?



As the name implies, air diaphragm pump use compressed air to operate, rather than an electrical motor. This unique operating characteristic allows them to be used in situations where an electrically powered pump would not be advisable (e.g., when pumping flammable liquids). By their very nature, though, these types of air diaphragm pump must be installed and maintained properly to function as designed.


Air Diaphragm Pump HS CODE : 8413501090

Air Diaphragm Pump Packing Status:


- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free



Usage Air Pump
Max Flow Rate 90 gpm(340 lpm)
Structure Air Diaphragm Pump
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.2 in(5mm)
Warranty 12 months
Air Inlet Size 1/2 in.npt(f)
Wetted End PP
Fluid Inlet Size 1 1/2 in.
Fluid Outlet Size 1 1/2 in.
Net Weight 15 KG





Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm 0


Packing & Shipping:

Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm 1Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm 2
Our service


Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.

Company Introduction:



We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"

Connection type:
-Threaded connection: Plastic air diaphragm pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic air diaphragm pump from 1/2" to 3".



Pneumatic Chemical Diaphragm Pump Gas Powered Polypropylene 1-1/2'' 340 Lpm 3

FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
