Product Details:
|
| Materal: | PVDF | Brand: | RV |
|---|---|---|---|
| Max Solid Passage: | 0.37 In (9.4 Mm) | Pump Weight: | 79 Kgs |
| Max. Flow Rate: | 1022 LPM | Carton Size: | 840×480×800mm |
| Size: | 3 Inch | Air Disctibution System: | Three-way Pilot Valve |
| Ball / Seats: | PTFE | ||
| High Light: | RV chemical diaphragm pump 3 inch,RV Oil Free Chemical Diaphragm Pumps,RV air operated chemical transfer pumps |
||

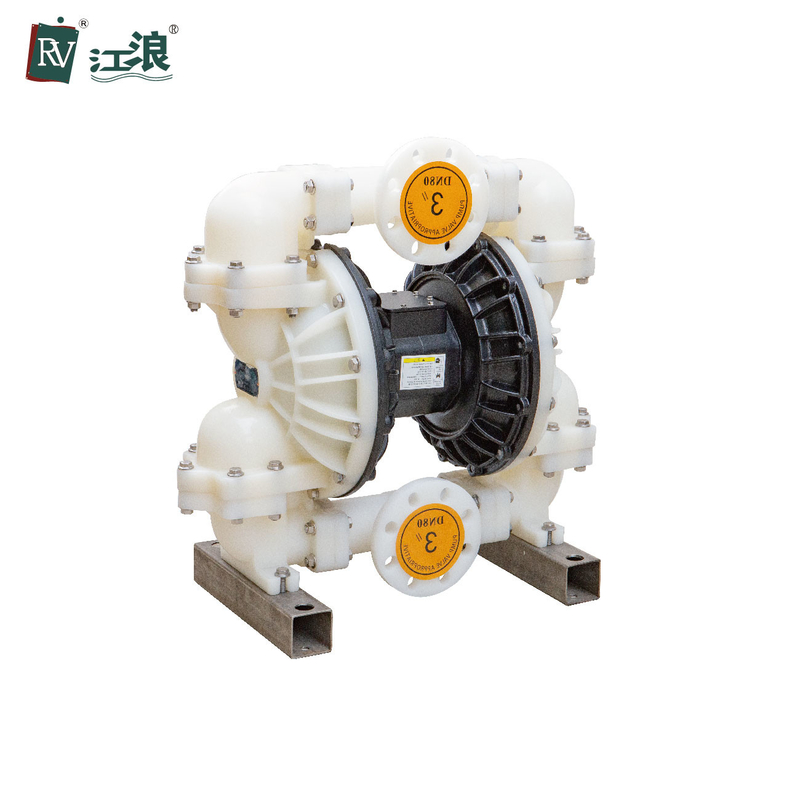

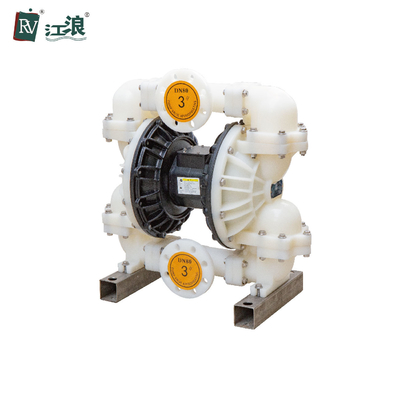

Oil Free Chemical Diaphragm Pumps 3 inch Pneumatic PVDF Acid
Chemical Diaphragm Pump Advantages
Chemical industry: acid, alkali, solvent, suspension, dispersion system.
Petrochemical industry: crude oil, heavy oil, grease, mud, sludge, etc.
Coating industry: resin, solvent, colorant, paint, etc.
Daily chemical industry: detergent, shampoo, emulsion, emulsion, hand cream, surfactant.
Ceramic industry: mud, porcelain pulp, lime pulp, clay pulp.
Mining: coal slurry, magma, mud, mortar, explosive slurry, lubricating oil, etc.
Water treatment: lime slurry, soft sediment, sewage, chemicals, wastewater.
Food industry: liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood.
Beverage industry: yeast, syrup, concentrate, mixture of gas and liquid, wine, juice, corn pulp, etc.
Pharmaceutical industry: solvent, acid, alkali, plant extract and refining liquid, ointment, plasma and other pharmaceutical material liquid.
Paper industry: binder, resin, paint, ink, pigment, hydrogen peroxide, etc.
Electronic industry: solvent, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acid, corrosive acid, polishing fluid.
Textile industry: dyestuff chemicals, resins, adhesives, etc.
Construction industry: cement slurry, ceramic tile binder, rock slurry, ceiling paint, etc.
Automotive industry: polishing emulsion, oil, coolant, automotive primer, oil emulsion, varnish, varnish additives, degreasing fluid, paint, etc.
Furniture industry: binder, varnish, dispersion system, solvent, color agent, white wood glue, epoxy resin, starch binder.
Metallurgy, casting and dyeing industries: metal pulp, hydroxide and carbonized pulp, dust washing pulp, etc
Features
3 in (76.2 mm) ANSI center-porting that is internally threaded 3 npt or bspt
• Bolted leak-free, flanged connections — no clamp bands used
• Large flow paths for high viscosities
• Easy air valve maintenance
• Heavy-duty construction
• Fluid flow up to 270 gpm (1022 lpm)
REPAIR KITS FOR WET END
| Part No. | Part Code | Part Name | Qty |
| 1 | 8001-TF | Valve Ball | 4 pcs |
| 2 | 8002-PVDF | Valve Seat | 4 pcs |
| 3 | 8003-FCP | Seat O-ring | 8 pcs |
| 4 | 8005-TF | Diaphragm | 2 pcs |
| 5 | 8006-ST | Backup Diaphragm | 2 pcs |
| 6 | 8008-TF | Plate O-ring | 4 pcs |
Packing & Shipping:
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
