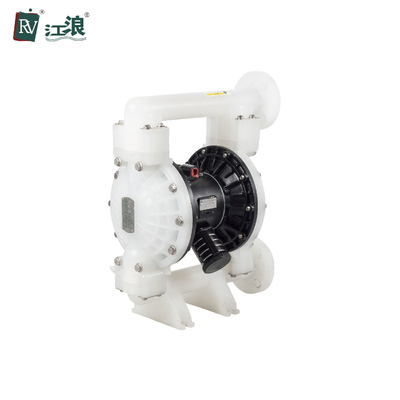

1-1/2" Air Operated Diaphragm Drum Pump Material Plastic Wastewater

1-1/2" Air Operated Diaphragm Drum Pump Material Plastic Wastewater
1-1/2" Air Operated Diaphragm Drum Pump Material Plastic Wastewater 1-1/2" Air Operated Diaphragm Drum Pump Material Plastic Wastewater

Large Image :  1-1/2" Air Operated Diaphragm Drum Pump Material Plastic Wastewater

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-B2A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1-1/2" Air Operated Diaphragm Drum Pump Material Plastic Wastewater

Description
Materal: PP Brand: RV
Color: White Flow Rate: 446L/M
Weight: 15kgs Packing Dimension: 49*28*66cm
Inlet Size: 1 1/2 Inch Pump Model: RVP-B2A11-F
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

1-1/2" Air Operated Diaphragm Drum Pump

,

Diaphragm Pump Wastewater

,

diaphragm pump material

1-1/2" Air Operated Diaphragm Drum Pump Material Plastic Wastewater

Main Advantages of Pneumatic Diaphragm Pump :


- Due to the use of air power, the flow automatically changed according to export resistance. Which is suitable for high viscosity fluid.
- In inflammable and explosive environment, the pneumatic diaphragm pump is reliable and low cost, won't produce spark and not overheat,
- The
pneumatic diaphragm  pump volume is small, easy to move, no foundation needed, convenient installation and economy. Can be used as mobile conveying pump.
- Where there are dangers, corrosive materials processing, pneumatic diaphragm pump can be separated completely with outside.
- The
pneumatic diaphragm pump shearing force is low, physical effect to medium is small, can be used for conveying unstable chemistry fluid.



Function Description:


A    Simple structure,reliable connection ,easy assembly and disassembly.
B  Modular design,low air consumption,no dead spots and no need lubrication.
C  Enhanced the chamber strength,has long_term durability.
D  Bolts connection design,good seal.
E  Adopt special grinding machine to process in high roundness and good seal.
F  Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm.




Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 90 gpm(340lpm)
Max Reciprocating Speed 200 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.2 in(5mm)
Max Air Consumption 80scfm(40L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 1 1/2 in.
Fluid Outlet Size 1 1/2 in.
Net Weight PP pump 15kg; PVDF pump20kg

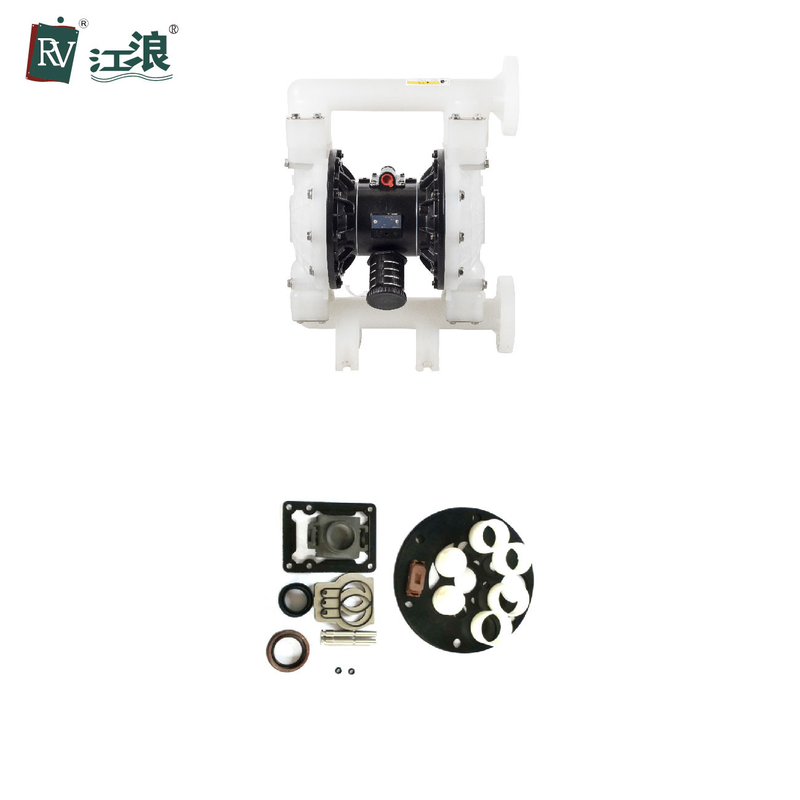

1-1/2" Air Operated Diaphragm Drum Pump Material Plastic Wastewater 01-1/2" Air Operated Diaphragm Drum Pump Material Plastic Wastewater 1
Company Information:


Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are pneumatic diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Pneumatic Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products
.

Pneumatic Diaphragm Pump and Control Valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.
Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.


1-1/2" Air Operated Diaphragm Drum Pump Material Plastic Wastewater 2
Our service

* All of the enquiry will be replied within 24 working hours
* Professional air diaphragm pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service


FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time for pneumatic diaphragm pump?
A: Depend on the quantity.
4. Q: What about package for pneumatic diaphragm pump?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty for pneumatic diaphragm pump?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
