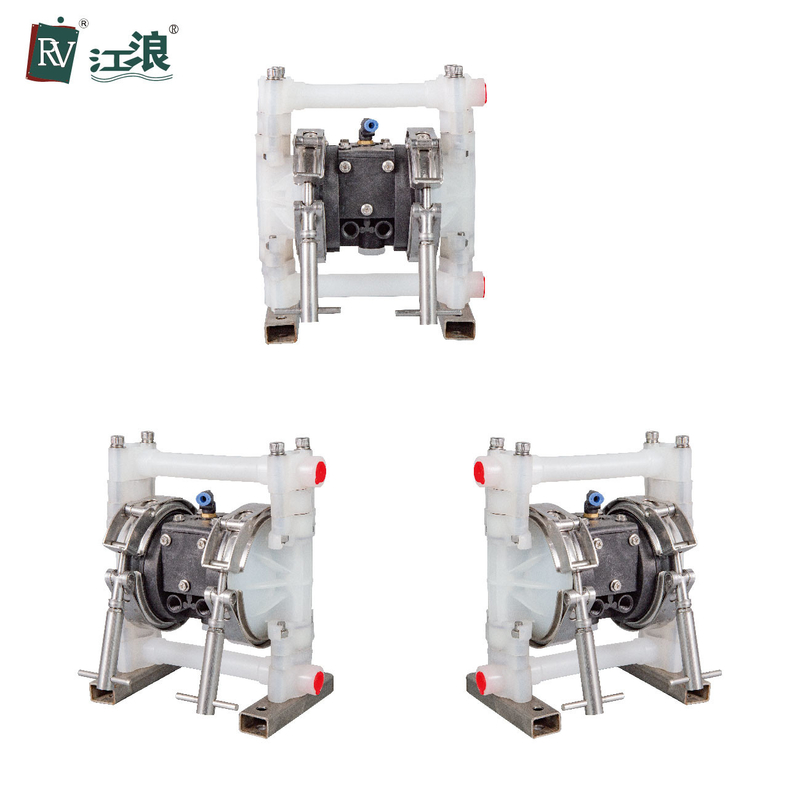

3/8" PTFE Ptfe Diaphragm Pump Air Operated For Acid Alkali Industry

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

3/8" PTFE Ptfe Diaphragm Pump Air Operated For Acid Alkali Industry

3/8" PTFE Ptfe Diaphragm Pump Air Operated For Acid Alkali Industry
3/8" PTFE Ptfe Diaphragm Pump Air Operated For Acid Alkali Industry 3/8" PTFE Ptfe Diaphragm Pump Air Operated For Acid Alkali Industry

Large Image :  3/8" PTFE Ptfe Diaphragm Pump Air Operated For Acid Alkali Industry

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-32A11-T(S)
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3/8" PTFE Ptfe Diaphragm Pump Air Operated For Acid Alkali Industry

Description
Pump Housing: PP Brand: RV
Valve Seat: PVDF Valve Ball: PTFE
Diaphragm: PTFE Carton Size: 25*20*36cm
Size: 3/8 Inch Model: RVP-32A11-T(S)
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
Usage: Chemical, Water
Highlight:

PTFE diaphragm pump

,

3/8" ptfe diaphragm pump air operated

,

3/8 air diaphragm pump

3/8" PTFE Ptfe Diaphragm Pump Air Operated For Acid Alkali Industry



Application of Pneumatic Diaphragm Pumps:



The Pneumatic diaphragm pumps are widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.



Working Principle:



In the two symmetrical pump chamber equipped with a diaphragm, which is connected by a center couplet stem. Compressed air comes in from pump inlet valve, and enter into one cavity, push the diaphragm movement, and gases emitted from another cavity. Once to the destination, gas distribution components will automatically compressed air into another chamber, push the diaphragm to the opposite direction, thus make two diaphragm continuous synchronization to reciprocating movement.

Compressed air goes into the valve, make the diaphragm to the right movement, and chamber suction make medium enter into, push the ball into the room, ball valve shuts down due to inhalation, Mediums discharged by extrusion, and opened the ball valve and at the same time close the ball valve, prevent back flow, thus to make medium ceaseless from the entrance inhaled, exit eduction.





Type RV10
Inlet size 3/8"
Outlet size 3/8"
Air inlet size 1/4"
Suction lift (dry) 3m
Max. working pressure 7bar ; 0.7MPa
Max. flow rate 26.5 l/min(1.56m³/h)
Max. delivery lift 70m
Max. grain diameter 1.6mm
Weight PP: 3kgs
PVDF: 3.5kgs
Acetal: 4kgs
Available body material PP. Acetal. PVDF





3/8" PTFE Ptfe Diaphragm Pump Air Operated For Acid Alkali Industry 0



Packing & Shipping:



3/8" PTFE Ptfe Diaphragm Pump Air Operated For Acid Alkali Industry 1


Overview


Pneumatic diaphragm pump is a new type of conveyor machinery, adopts compressed air as power source, suitable for various corrosive liquid, with particles liquid, high viscosity and volatile, inflammable, poisonous liquid. The main characteristic of this pump is no priming water needed, can pumping the medium that easy to transport. High suction head, adjustable delivery head, fire and explosion proof.



FAQ



1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time for pneumatic diaphragm pump?
A: Depend on the quantity.

4. Q: What about package for pneumatic diaphragm pump?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty for pneumatic diaphragm pump?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need
