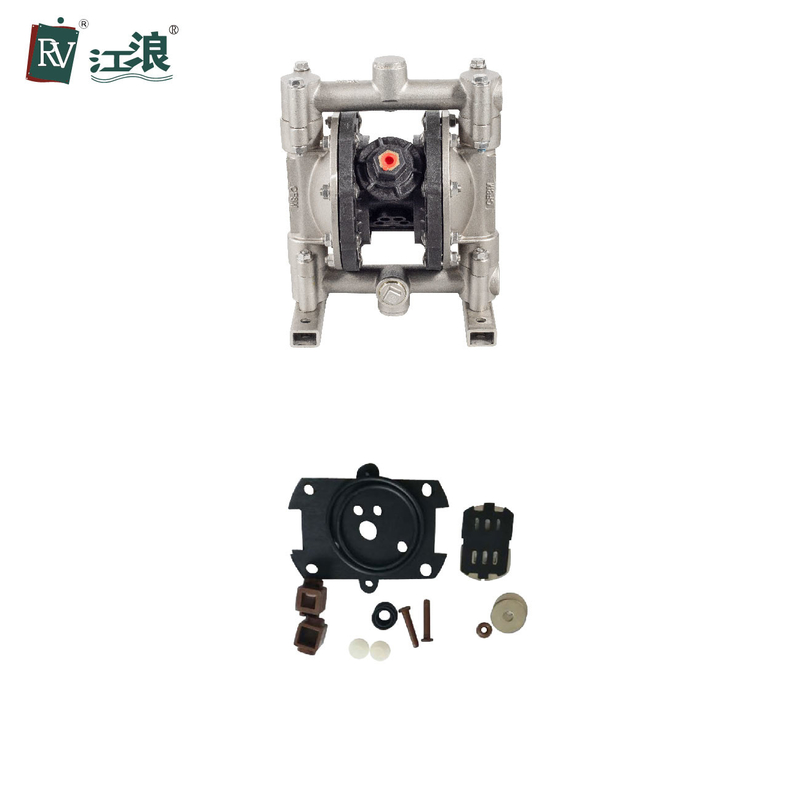

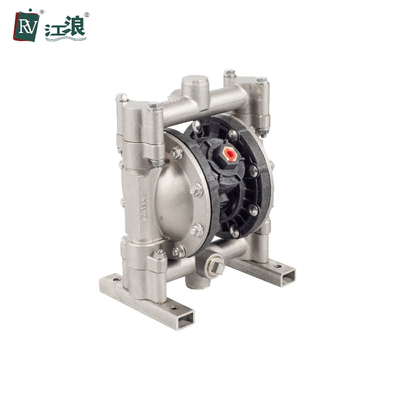

1/2 Air Operated Diaphragm Pump Wastewater Treatment PP Air Center Block

1/2 Air Operated Diaphragm Pump Wastewater Treatment PP Air Center Block
1/2 Air Operated Diaphragm Pump Wastewater Treatment PP Air Center Block 1/2 Air Operated Diaphragm Pump Wastewater Treatment PP Air Center Block

Large Image :  1/2 Air Operated Diaphragm Pump Wastewater Treatment PP Air Center Block

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-54311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1/2 Air Operated Diaphragm Pump Wastewater Treatment PP Air Center Block

Description
Product Name: Air Diaphragm Pump Type: Sump Pump
Pump Casting: Stainless Steel 304 Theory: Reciprocating Pump
Lift: 230 FT / 70meter Application: Dinking Water Treatment, Raw Water Intake
Advantages: Explosion-proof Zero Leak Weight: 8.9kg
High Light:

1/2 Air Operated Diaphragm Pump

,

Air Operated Diaphragm Pump Wastewater

,

waste water diaphragm pump

1/2" Stainless Steel Pneumatic Diaphragm Pump With PP Air Center for Waste Water Industry



Pneumatic Diaphragm Pump Advantages:

  • Idling ,Self-priming , Submerse capability.
  • Provide stall-free, ice-free zero leak operation.
  • Epoxy-coated air section for tough environmental conditions.
  • Low shear force , not easy to damage the material structure.
  • Bolt joint design provides even sealing pressure for optimal performance
  • Modular air valve,low pulsation operation,providing smooth and rapid changeover.
  • No electricity . It's safe and realiable while using in the flammable and explor place .
  • Diversity of material,no rotating parts,applicable to various erosive situations.
  • Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
  • Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.



Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
Max Capacity 15 gpm ( 57lpm )
Max Reciprocating Speed 400 cpm
Power Pneumatic
Max Permitted Grain 3/32 in ( 2.5mm )
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt (f)
Air Outlet Size 3/8 in.npt (f)
Fluid Inlet Size 1/2 in.
Fluid Outlet Size 1/2 in.
Net Weight 8.9kg






1/2 Air Operated Diaphragm Pump Wastewater Treatment PP Air Center Block 0



Performance curve diagram



1/2 Air Operated Diaphragm Pump Wastewater Treatment PP Air Center Block 1







Packing & Shipping:
1/2 Air Operated Diaphragm Pump Wastewater Treatment PP Air Center Block 21/2 Air Operated Diaphragm Pump Wastewater Treatment PP Air Center Block 3
Company Introduction:


Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air diaphragm pump and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The pneumatic diaphragm pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.




FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of pneumatic diaphragm pump have?

A: Pneumatic diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Pneumatic diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Pneumatic diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Pneumatic diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Pneumatic diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air operated diaphragm pump quality and service?

A: Our pneumatic diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
