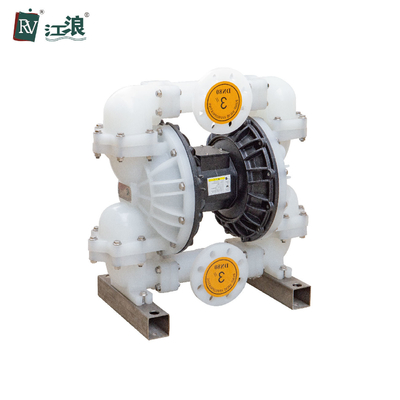

3 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

3 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection

3 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection
3 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection 3 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection

Large Image :  3 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-K2955-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection

Description
Materal: Polypropylene Brand: RV
Max Solid Passage: 0.37 In (9.4 Mm) Pump Weight: 66 Kg
Max. Flow Rate: 1022 LPM Carton Size: 560×350×750mm
Size: 3 Inch Air Disctibution System: Three-way Pilot Valve
Ball / Seats: Hytrel
High Light:

3 inch Polypropylene Diaphragm Pump

,

Polypropylene Diaphragm Pump Chemical

,

Polypropylene aod pump

3 inch Polypropylene Chemical Air Operated Diaphragm Pump With Flange Connection



Product Description



80mm plastic irrigation pneumatic duplex diaphragm pump pumping liquid medium is not only the flow of liquid, but also can transport some not easy to flow of liquid medium, 3 inch Polypropylene air driven diaphragm pump has self-priming pump, mud pump, impurities pump and other comprehensive advantages.

Polypropylene Diaphragm Pump Features

1. Polypropylene pump in PP-H material, wearing resistance, chemical resistance much better than PP. 2. The pump with PP center block, be full plastic pump, excellent chemical resistance.
3. Four bolts connection design, good seal and good dry suction.
4. PP and PVDF pump size from 1/4" to 3".
5. The bolts of plastic pump are of Stainless steel 304.
6. Three section manifold, Flexible installation. Also can change to be 4 ports pump.

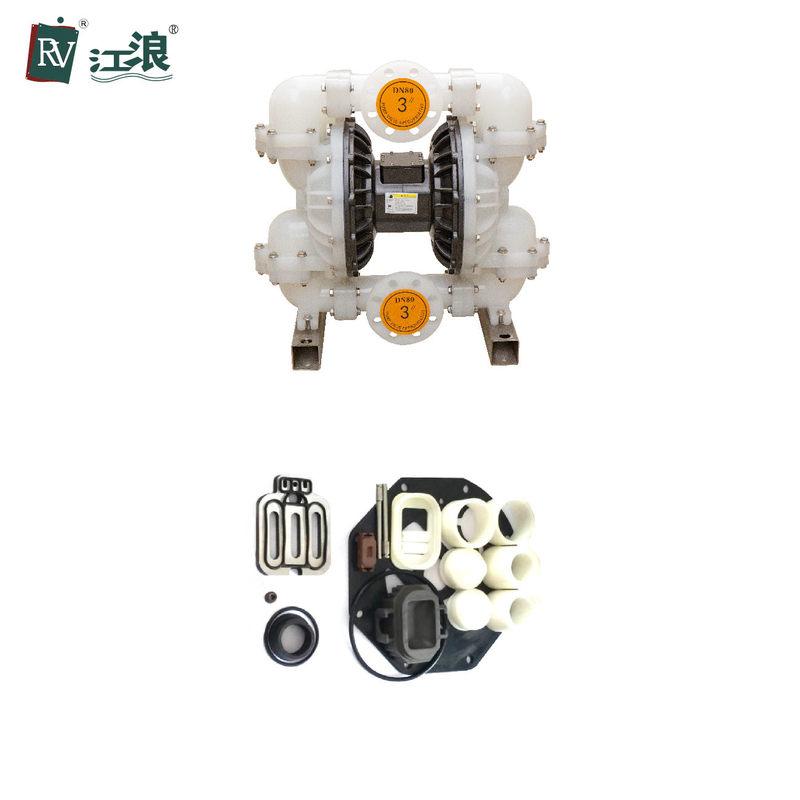

REPAIR KITS FOR WET END

Part No. Part Code Part Name Qty
1 8001-TF Valve Ball

4 pcs



2 8002-PV Valve Seat

4 pcs



3 8003-FCP Seat O-ring

8 pcs



4 8005-TF Diaphragm

2 pcs



5 8006-ST Backup Diaphragm

2 pcs



6 8008-TF Plate O-ring

4 pcs







3 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection 0



3 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection 1


Packing & Shipping:

3 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection 23 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection 3



3 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection 43 Inch Polypropylene Diaphragm Pump Chemical With Flange Connection 5






RV80 is a large air operated double diaphragm pump, which is powered by air and is suitable for medium and high viscosity fluids. It has the characteristics of simple structure, few wearing parts, convenient installation and maintenance, and high performance.


FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
