Motor Driven Diaphragm Pump With Electric Motor 3 Inch PVDF Fuel 5.5KW

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

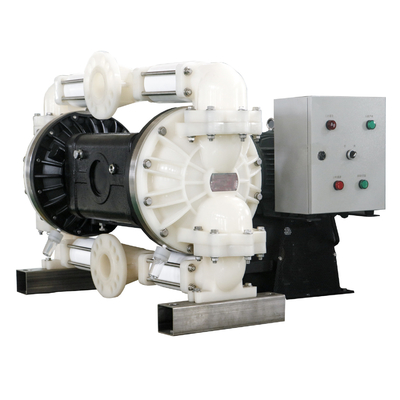

Motor Driven Diaphragm Pump With Electric Motor 3 Inch PVDF Fuel 5.5KW

Motor Driven Diaphragm Pump With Electric Motor 3 Inch PVDF Fuel 5.5KW
Motor Driven Diaphragm Pump With Electric Motor 3 Inch PVDF Fuel 5.5KW

Large Image :  Motor Driven Diaphragm Pump With Electric Motor 3 Inch PVDF Fuel 5.5KW

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVE-K5A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Motor Driven Diaphragm Pump With Electric Motor 3 Inch PVDF Fuel 5.5KW

Description
Materal: PVDF Brand: RV
Max. Working Pressure: 0.6 Mpa, 6 Bar Pump Weight: 300 Kg
Max. Flow Rate: 16 M³/h Carton Size: 1160×1070×970mm
Size: 3 Inch Motor: 5.5 Kw
Ball: PTFE
Highlight:

motor driven diaphragm pump 3 inch

,

motor driven diaphragm pump with electric motor

,

diaphragm pump with motor

Motor Driven Diaphragm Pump With Electric Motor 3 Inch PVDF Fuel 5.5KW



RV New Design Motor Diaphragm Pump Features:



1. Diaphragm pump moving system and reducer components are installed in the same box.

2. The output shaft of reducer can function simultaneously as input shaft of back-and-forth motion, thereby to get a compact structure.

3. The installation datum is uniformly set on the shell; the motor and the shell are connected by flange

4. Larger motion chamber for more storage of lubricating oil, which is better for heat radiation

5. Back-and -forth motion is supported by linear bearing, to get less friction resistance and easier replacement.

6. Inner placed ventilation pipe help better air changeover between diaphragm and inner splint.



Technical Specification:



Max Outlet Pressure 0.6Mpa , 6bar
Max Flow Rate 16 m³/h
Max Suction Lift 3m
Motor Power 5.5 KW in standard (Senior 7.5KW as options
)
Motor Speed 1450r/min
Fluid Inlet Size 3 inch Flange



Exterior dimension drawing



Motor Driven Diaphragm Pump With Electric Motor 3 Inch PVDF Fuel 5.5KW 0



Motor Driven Diaphragm Pump With Electric Motor 3 Inch PVDF Fuel 5.5KW 1


Company Introduction:



Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are air diaphragm pump and control valves, including: Air Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Air Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

The air diaphragm pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.



Motor Driven Diaphragm Pump With Electric Motor 3 Inch PVDF Fuel 5.5KW 2Motor Driven Diaphragm Pump With Electric Motor 3 Inch PVDF Fuel 5.5KW 3



HOW IT WORKS



The motor drives the diaphragm on the plungers on the back-and-forth ends through the reducer to make reciprocating motions from back to forth, Inside the back-and -forth pump cavities, there are 4 upper and lower non -return ball valves making motions to change volumes of the working cavities and drive the 4 non-return ball valves to open and close alternately, thus sucking and discharging the liquid continually.


FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
