Product Details:
|
| Weight: | 8.2kg~15.7Kgs | Max. Working Pressure:: | 120 Psi ( 0.84Mpa, 8.4bar) |
|---|---|---|---|
| Max. Flow Rate: | 40 Gpm (150 Lpm) | Max Air Consumption: | 140scfm (70L/s) |
| Max Suction Height (Dry Sucking): | 5m | Max Permitted Grain: | 4mm / 0.16 Inch |
| Air Inlet Size: | 1/2 In.npt(f) | Air Outlet Size: | 3/4 In.npt(f) |
| Fluid Inlet Size: | 1 In.npt(f) | Fluid Outlet Size: | 1 In.npt(f) |
| Connect Type: | BSP/NPT Thread（other Standard Thread Accept） | ||
| High Light: | 1" aodd pumps air consumption 22.5L/s,aodd pump Pneumatic 22.5L/s,aodd pump 1 22.5L/s |
||

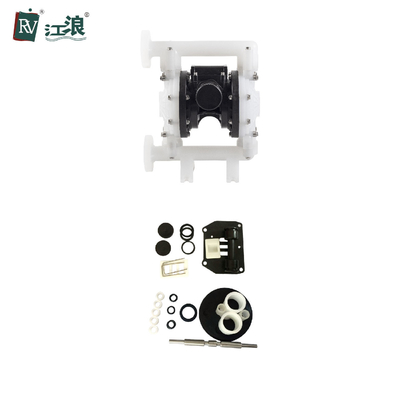

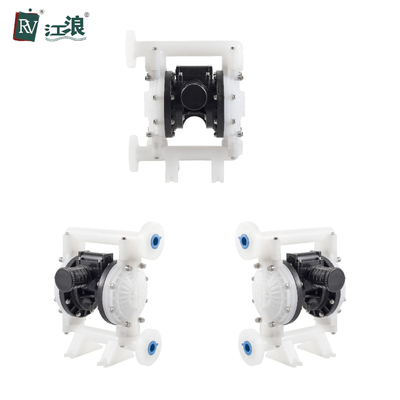

1" aodd pump air consumption 22.5L/s Pneumatic Diaphragm Pump With PP Center Block
Technicial Date
| Max Working Pressure | 120 psi(0.8Mpa, 8.4bar) |
| Max Flow Rate | 40 gpm(151lpm) |
| Max Reciprocating Speed | 276 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.16 in(4mm) |
| Max Air Consumption | 45scfm(22.5L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Net Weight | PP pump 10kg |
Model Selection Instruction
Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.
Available inlet/outlet size: 1", 1-1/2", 2",3"
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
