Product Details:
|
| Material: | Alumium | Color: | Gray |
|---|---|---|---|
| Weight: | 120Kgs | Max. Working Pressure:: | Psi(0.6Mpa, 6bar) |
| Max. Flow Rate: | 3.5m³/h | Motor Power: | 1.5kw In Standard（senior 2.2 Kw As Options） |
| Connect Type: | BSP/NPT Thread（other Standard Thread Accept） | ||
| High Light: | diy fuel electric motor diaphragm pump,Electric Motor Diaphragm Pump Fluids 1,diaphragm pump with electric motor |
||

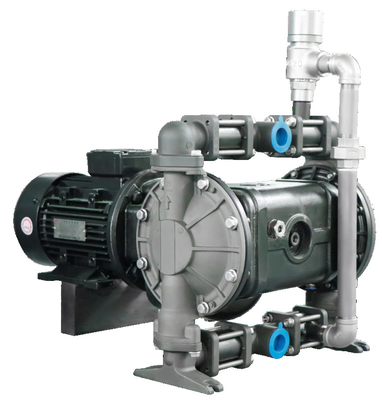

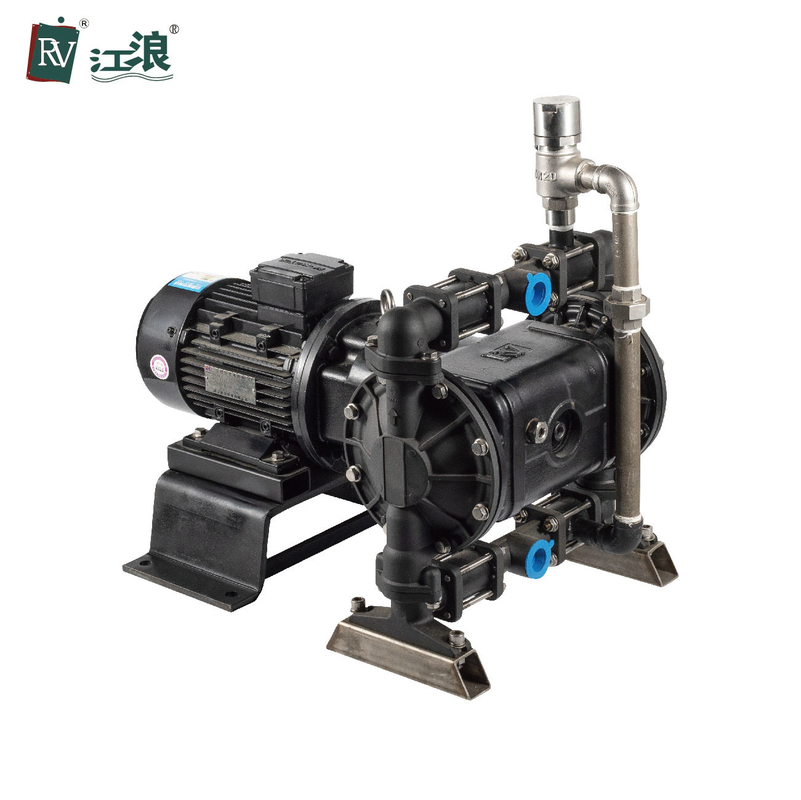

Diy Fuel Electric Motor Diaphragm Pump Fluids Abrasive Transfer 1 Inch
What is EODD Motor Diaphragm Pump?
Less common in the chemical metering world is the electric operated double diaphragm (EODD) pump. A relatively new technology, EODD motor diaphragm pumps are establishing themselves as an alternative to peristaltic pumps in metering applications. When used with the proper electronic controls, the cycle rate on an EODD pump is monitored to ensure flow matches the required metered rate.
Technical Specification:
| Max Outlet Pressure | 0.7Mpa , 7bar |
| Max Flow Rate | 22m³/h |
| Max Suction Lift | 3m |
| Motor Power | 5.5 KW in standard (Senior 7.5KW as options
)
|
| Motor Speed | 1450r/min |
| Fluid Inlet Size | 3 inch Flange |
,
Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.
Available inlet/outlet size: 1", 1-1/2", 2", 3"
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
