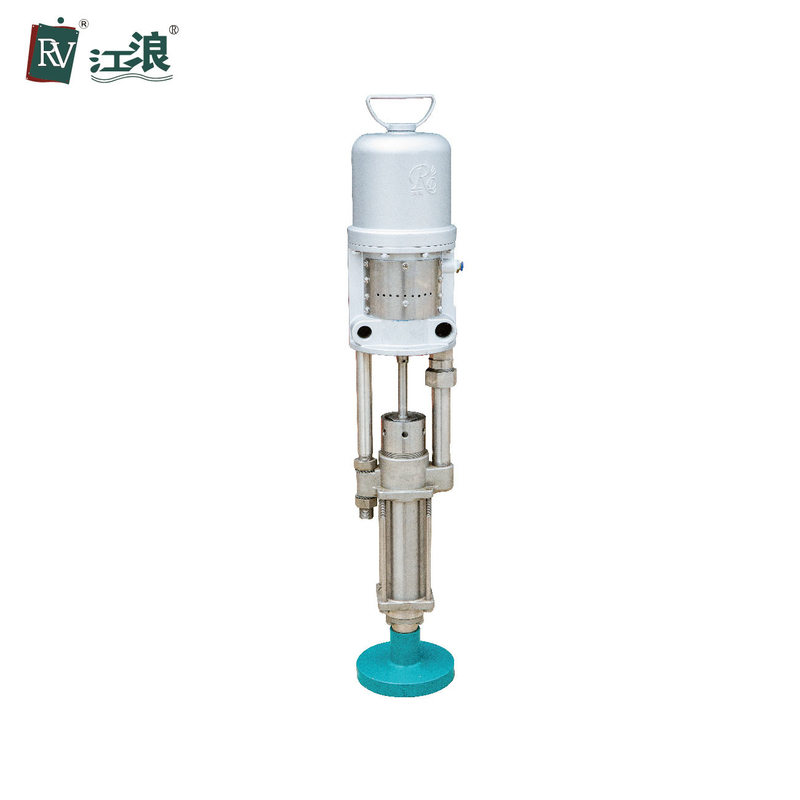

Pneumatic Piston Oil Pump Air Powered 5 1 Ratio Handles Viscosity Liquid

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

Pneumatic Piston Oil Pump Air Powered 5 1 Ratio Handles Viscosity Liquid

Pneumatic Piston Oil Pump Air Powered 5 1 Ratio Handles Viscosity Liquid
Pneumatic Piston Oil Pump Air Powered 5 1 Ratio Handles Viscosity Liquid

Large Image :  Pneumatic Piston Oil Pump Air Powered 5 1 Ratio Handles Viscosity Liquid

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: 5:1 RV Piston Pump
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Pneumatic Piston Oil Pump Air Powered 5 1 Ratio Handles Viscosity Liquid

Description
Product: Air-Operated Piston Transfer Pumps Structure: Reciprocating Plunger Pump
Body Material: SS304, SS316 Working Pressure: Maxminum 725 Psi (5.0Mpa,50 Bar)
Flow Rate: Maxminum 14.4gpm ( 15 Lpm) Air Inlet: Maxminum 725 Psi (5.0Mpa,50 Bar)
Connection Type: Female Thread Max. Air Consumption: 34 Scfm (17 L/S)
Max. Suction Lift: 6m
High Light:

air powered piston oil pump

,

Pneumatic Piston Oil Pump Air Powered

,

Pneumatic Piston Oil Pump 5 1 Ratio

4:1 Pneumatic Diaphragm Pump Piston Pump Ideal for Lower Viscosity Fluid



4:1 PNEUMATIC PISTON PUMPS

Designed for high production applications, RV pneumatic diaphragm pump and piston pumps provides uniform and easily controlled delivery with its reliable air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes.

  • Positive displacement, piston design provides uniform and easily controlled delivery
  • Stainless steel or carbon steel models available to handle various fluids
  • Fluid return stanchion for circulation back to the pump
  • Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids







Max Working Pressure 725 psi(5.0Mpa, 50bar)
Max Flow Rate 14.4gpm ( 15lpm )
Fluid Inlet Size 1-1/2 in
Max Suction Height (Dry Sucking) 6m
Max Permitted Grain 3.0 mm
Max Air Consumption 34 scfm ( 17 L/s )
Air Inlet Size 1/2 in.npt(f)
Connection Type Female Thread
Ratio 5 : 1

Pneumatic Piston Oil Pump Air Powered 5 1 Ratio Handles Viscosity Liquid 0


Company Information:

Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are pneumatic diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Pnuematic Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.



Pneumatic Piston Oil Pump Air Powered 5 1 Ratio Handles Viscosity Liquid 1Pneumatic Piston Oil Pump Air Powered 5 1 Ratio Handles Viscosity Liquid 2

PISTON PUMP SYSTEM

RV pneumatic diaphragm pumps and piston pump have a special sealless design that is suitable for pumping high viscosity liquids thanks to the high chemical resistance and to the absence of leakage and emissions. The structure is really simple and it requires very little maintenance with consequent savings in terms of repairing, spare parts and machine downtime costs during the pneumatic diaphragm piston pump life.



FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
