Product Details:
|
| Air Inlet Size (in): | Piston Transfer Pump | Air Inlet Thread Gender: | Female |
|---|---|---|---|
| Body Material: | SS304, SS316 | Maximum Fluid Working Pressure: | 435 Psi (3.0Mpa, 30 Bar) |
| Max. Flow Rate: | 24gpm ( 53 Lpm) | Maximum Air Input Pressure: | 435 Psi (3.0Mpa, 30 Bar) |
| Application: | Supply | Max. Air Consumption: | 34 Scfm (17 L/S) |
| Max. Suction Lift: | 6m | ||
| High Light: | Ball Pneumatic air powered piston pump,air powered piston pump 3 1 ratio,air powered piston oil pump |
||

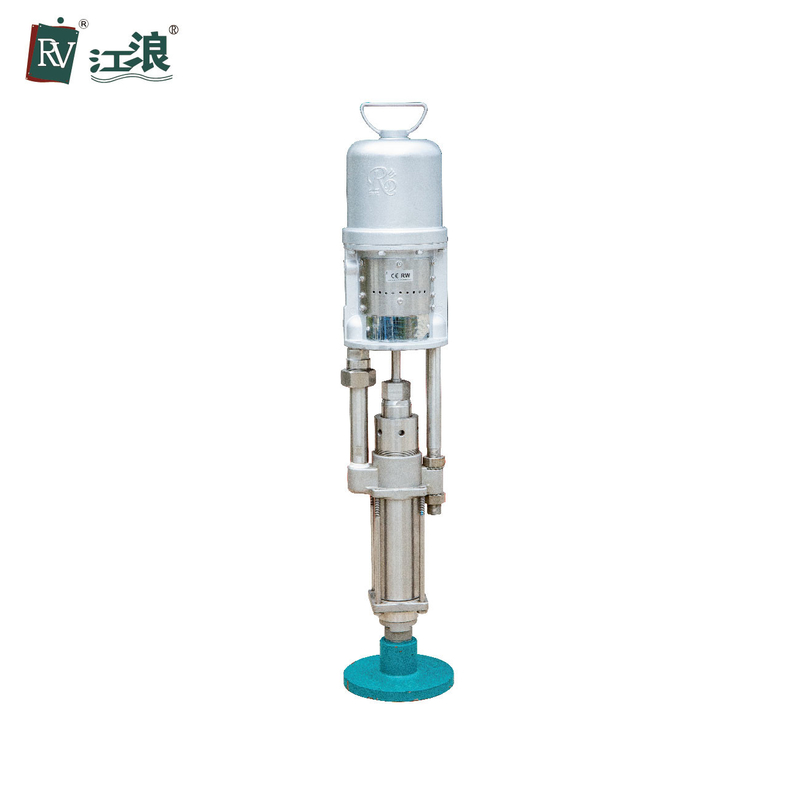

3:1 Ball Pneumatic Diaphragm Pump Piston Pumps for A Wide Range Of Applications
RV pneumatic piston pumps and are designed for transferring low, medium and high viscosity liquids depending on the model and configuration specified, these pumps can be either hand operated or air driven.The RV pneumatic diaphragm pump ( piston pump ) range is available in a huge variety of designs and capacities, from 1.25:1 to 5:1 ratios these pneumatic diaphragm pump ( piston pumps ) are suitable for all kind of applications from simple small distance low viscosity oil transfer to industrial high viscosity oil distribution at long distances. These pneumatic diaphragm pumps are available in several different materials such as carbon steel and stainless steel, t
| Max Working Pressure | 435 psi(3.0Mpa, 30bar) |
| Max Flow Rate | 24 gpm ( 53lpm ) |
| Fluid Inlet Size | 1-1/2 in |
| Max Suction Height (Dry Sucking) | 6m |
| Max Permitted Grain | 3.0 mm |
| Max Air Consumption | 34 scfm ( 17 L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Connection Type | Female Thread |
| Ratio | 3 : 1 |
Company Information:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are pneumatic diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Pnuematic Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
PISTON PUMP SYSTEM
RV pneumatic diaphragm pump ( piston pumps) have a special sealless design that is suitable for pumping high viscosity liquids thanks to the high chemical resistance and to the absence of leakage and emissions. The structure is really simple and it requires very little maintenance with consequent savings in terms of repairing, spare parts and machine downtime costs during the pneumatic diaphragm piston pump life.
