Product Details:
|
| Product: | Air-Operated Piston Transfer Pumps | Structure: | Reciprocating Plunger Pump |
|---|---|---|---|
| Body Material: | SS304, SS316 | Fluid Working Pressure: | Max. 580 Psi (4.0Mpa, 40 Bar) |
| Flow Rate: | Max. 18gpm ( 38 Lpm) | Air Input Pressure: | Max. 580 Psi (4.0Mpa, 40 Bar) |
| Maximum Operating Temperature: | 120 °F (49 °C) | Max. Air Consumption: | 34 Scfm (17 L/S) |
| Max. Suction Lift: | 6m | ||
| High Light: | Air Operated Piston Pump Pneumatic,Pneumatic Plunger Pump 4 1 Ratio,air powered piston pump |
||

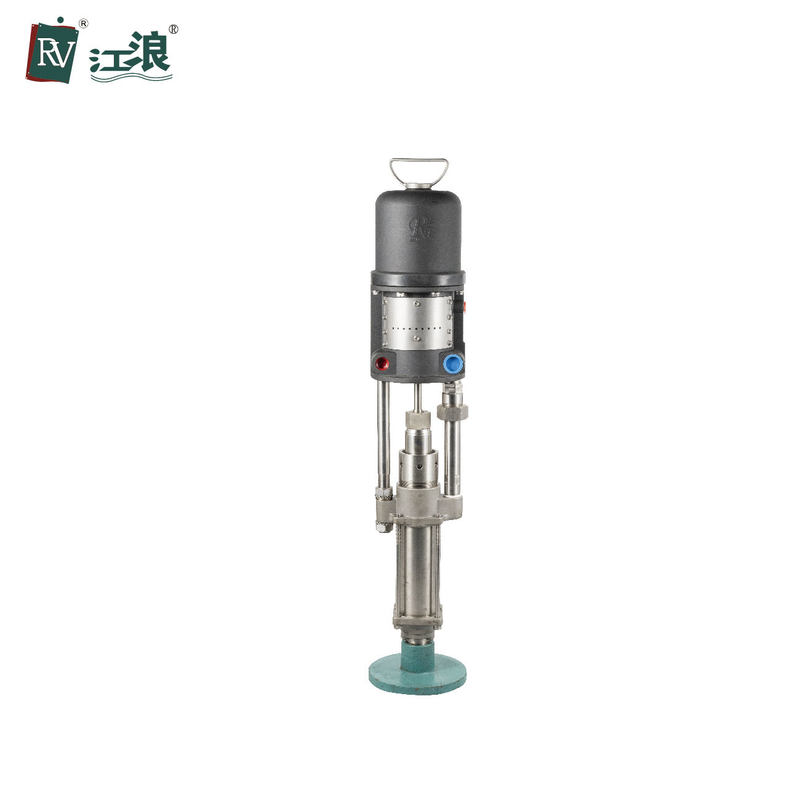

4:1 Pneumatic Diaphragm Pump Piston Pump Ideal for Lower Viscosity Fluid
RV 5:1 Air Operated Piston Transfer Pumps are designed to operate at air input pressures up to 580 psi (40 bar, 4.0 MPa) and deliver a smooth, reliable flow. Drum lengths model is available for drum transfer applications. Ideal for lower viscosity fluids.
Typical Application
• Foam chemical supply
• Spray gun supply
• Dispensing valve supply
• Cleaning chemical supply
Fluid transfer Typical Fluids Handled
• Solvents
• Adhesives
• Resins
• Catalysts
• Chemical
| Max Working Pressure | 580 psi(4.0Mpa, 40bar) |
| Max Flow Rate | 18 gpm ( 38lpm ) |
| Fluid Inlet Size | 1-1/2 in |
| Max Suction Height (Dry Sucking) | 6m |
| Max Permitted Grain | 3.0 mm |
| Max Air Consumption | 34 scfm ( 17 L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Connection Type | Female Thread |
| Ratio | 4 : 1 |
Company Information:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are pneumatic diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Pnuematic Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
PISTON PUMP SYSTEM
RV pneumatic piston pumps have a special sealless design that is suitable for pumping high viscosity liquids thanks to the high chemical resistance and to the absence of leakage and emissions. The structure is really simple and it requires very little maintenance with consequent savings in terms of repairing, spare parts and machine downtime costs during the pneumatic diaphragm piston pump life.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
