Product Details:
|
| Name: | Piston Transfer Pump | Structure: | Reciprocating Plunger Pump |
|---|---|---|---|
| Body Material: | SS304, SS316 | Maximum Fluid Working Pressure: | 290 Psi (2.0Mpa, 20 Bar) |
| Max. Flow Rate: | 36gpm ( 75 Lpm) | Maximum Air Input Pressure: | 290 Psi (2.0Mpa, 20 Bar) |
| Maximum Operating Temperature: | 120 °F (49 °C) | Max. Air Consumption: | 34 Scfm (17 L/S) |
| Max. Suction Lift: | 5m | ||
| High Light: | air powered Pneumatic Piston Pump,Pneumatic Piston Pump Hydraulic 2 1 ratio,air powered piston pump |
||

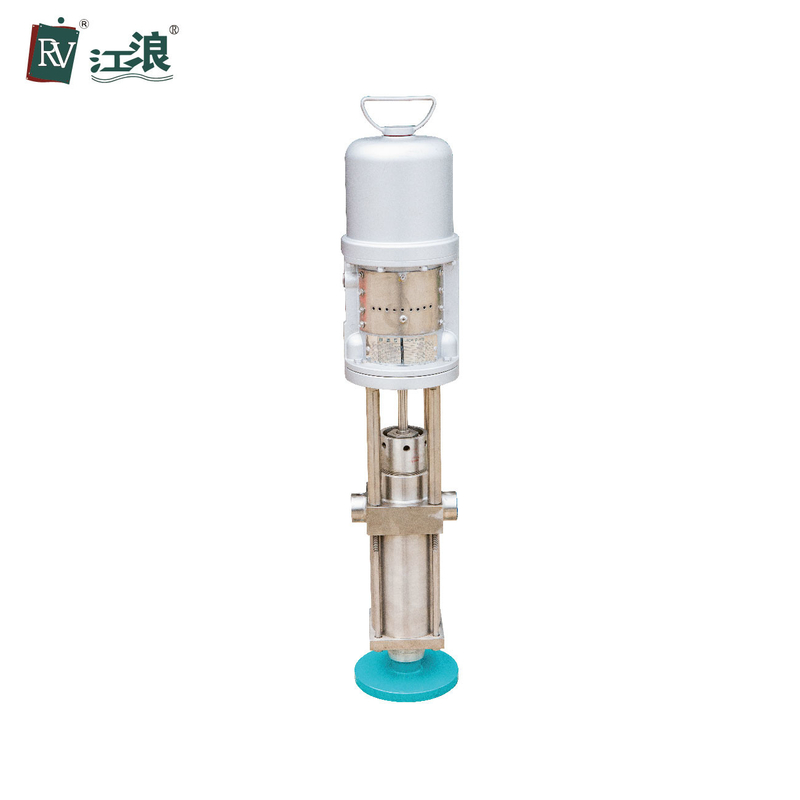

2:1 Pneumatic And Hydraulic Piston Transfer Pnuematic Diaphragm Pump
With higher pump pressures and flow rates, RV priming piston pumps handle a broad range of inks and high viscosity fluids with ease. These pneumatic diaphragm piston pumps offer durability, power and reliability for any ink manufacturing or printing application. Choose from reliable pneumatic motor, each capable of generating high pressures to meet your manufacturing demands.
CHARACTERISTICS
■Piston pump material is 304(316),ZL101,Sealing material is PTFE and high molecular polymer.
■Control the size or control the outlet valve flow of compressed air flow, which can adjust outlet flow of the piston pump.
■When the piston pump outlet is blocked or closed, the piston pump will automatically stop because of the balance of the pressure, avoiding the waste of energy.
■Using high quality Pneumatic motor, long-term forced tight gap seal and new type of mechanism, can prolong the life of pump, reduce faults occur, improve production efficiency, reduce operating costs.
■The piston pump has a long self-priming ability.
| Max Working Pressure | 290 psi(2.0Mpa, 20bar) |
| Max Flow Rate | 36 gpm ( 75lpm ) |
| Fluid Inlet Size | 1-1/2 in |
| Max Suction Height (Dry Sucking) | 6m |
| Max Permitted Grain | 3.0 mm |
| Max Air Consumption | 34 scfm ( 17 L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Connection Type | Female Thread |
| Ratio | 2 : 1 |
Company Information:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are pneumatic diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Pnuematic Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
PISTON PUMP SYSTEM
RV pneumatic piston pumps have a special sealless design that is suitable for pumping high viscosity liquids thanks to the high chemical resistance and to the absence of leakage and emissions. The structure is really simple and it requires very little maintenance with consequent savings in terms of repairing, spare parts and machine downtime costs during the pneumatic diaphragm piston pump life.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
