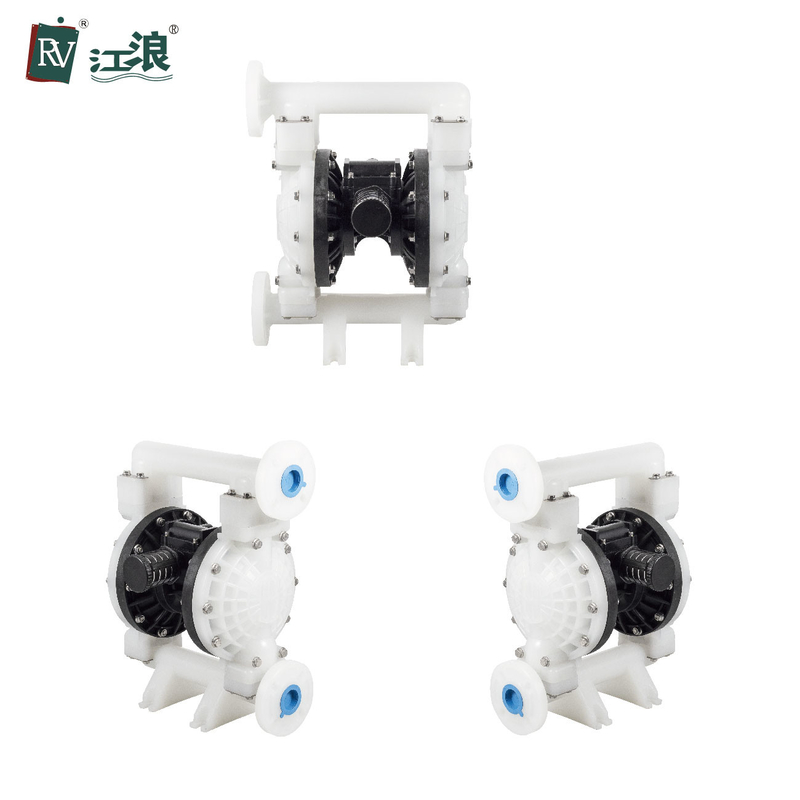

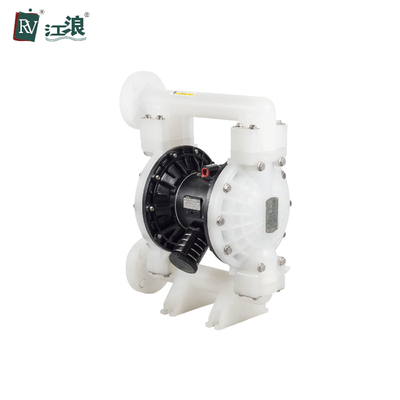

Gas Liquid Chemical Air Diaphragm Pump1.5 inch Low Pressure
How Do Air Diaphragm Pump Work?
As the name implies, air diaphragm pump use compressed air to operate, rather than an electrical motor. This unique operating characteristic allows them to be used in situations where an electrically powered pump would not be advisable (e.g., when pumping flammable liquids). By their very nature, though, these types of air diaphragm pump must be installed and maintained properly to function as designed.
Chemical Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free
| Usage |
Air Pump |
| Max Flow Rate |
90 gpm(340 lpm) |
| Structure |
Air Diaphragm Pump |
| Max Suction Height (Dry Sucking) |
5m |
| Max Permitted Grain |
0.2 in(5mm) |
| Warranty |
12 months |
| Air Inlet Size |
1/2 in.npt(f) |
| Wetted End |
Aluminum |
| Fluid Inlet Size |
1 1/2 in. |
| Fluid Outlet Size |
1 1/2 in. |
| Net Weight |
15 KG |
Packing & Shipping:
Our service
Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.
Company Introduction:
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
-Threaded connection: Plastic air diaphragm pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic air diaphragm pump from 1/2" to 3".
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
