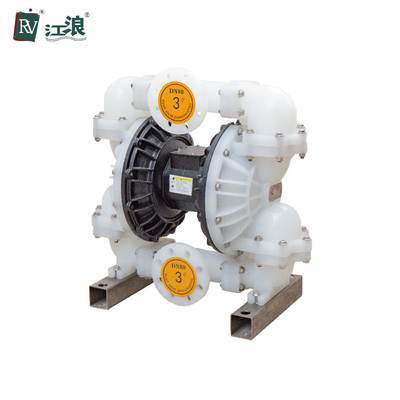

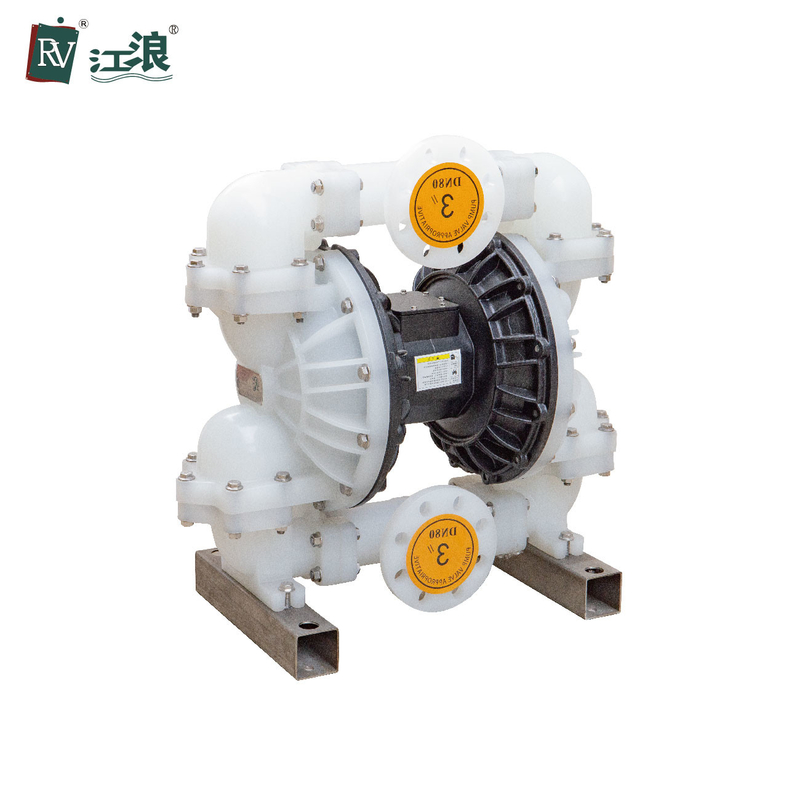

3" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

3" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection

3" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection
3" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection 3" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection

Large Image :  3" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-K2911-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection

Description
Materal: Polypropylene Brand: RV
Max Solid Passage: 0.37 In (9.4 Mm) Pump Weight: 51 Kg
Max. Flow Rate: 1022 LPM Carton Size: 840×480×800mm
Size: 3 Inch Air Disctibution System: Three-way Pilot Valve
Ball / Seats: PTFE
High Light:

3 chemical diaphragm pumps 90L/s

,

chemical diaphragm pumps air consumption 90L/s

,

diaphragm pump for chemical transfer 90L/s

3" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection



Chemical Diaphragm Pump Advantages



1.Idling ,Self-priming , Submerse capability.

2.Provide stall-free, ice-free zero leak operation.

3.Epoxy-coated air section for tough environmental conditions.

4.Bolt joint design provides even sealing pressure for optimal performance.

5.Diversity of material,no rotating parts,applicable to various erosive situations.

6.Modular air valve,low pulsation operation,providing smooth and rapid changeover.

7.No electricity . It's safe and realiable while using in the flammable and explor place .



Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 270 gpm ( 1022lpm )
Max Reciprocating Speed 135 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37 in ( 9.4mm)
Max Air Consumption 180scfm(90L/s)
Air Inlet Size 3/4 in.npt(f)
Air Outlet Size 1 in.npt(f)
Fluid Inlet Size 3 in.
Fluid Outlet Size 3 in.
Net Weight PP 51 kgs









3" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection 0






Packing & Shipping:



3" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection 13" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection 2

WHAT ARE CHEMICAL DIAPHRAGM PUMPS USED FOR?

Chemical diaphragm pump have good suction lift characteristics, are self priming in most fluids, and can run dry. These chemical diaphragm pump can handle low to medium viscosity fluids with ease (including those containing large suspended solids) and may be used to air diaphragm pump both corrosive and flammable liquids. There’s a saying in the processing industries that if a material can be poured into an chemical diaphragm pump, these types of chemical diaphragm pump can generally pump it.

Due to their simple design, air operated chemical diaphragm pump are relatively inexpensive to both purchase and operate, and coupled with their efficiency and accuracy, stainless steel versions are well suited for certain food grade sanitary processing applications, including filling, dispensing, and metering fluids,as well as water removal.

Common uses in the food & beverage processing and biopharmaceutical manufacturing industries include:

  • Additive injection
  • Sampling
  • Dosing
  • Coating
  • Raw material unloading
  • Filling
  • Shear-sensitive processes
  • Filter presses
  • Aseptic transfer of proteins and cells

3" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection 33" Chemical Diaphragm Pump Air Consumption 90L/S PP Flange Connection 4

FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
