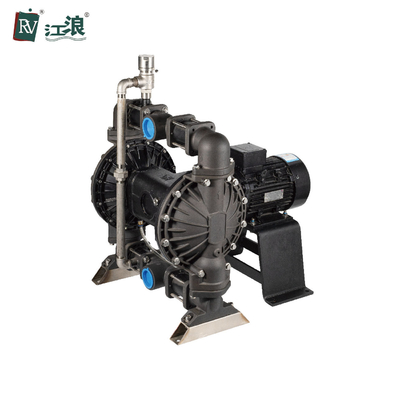

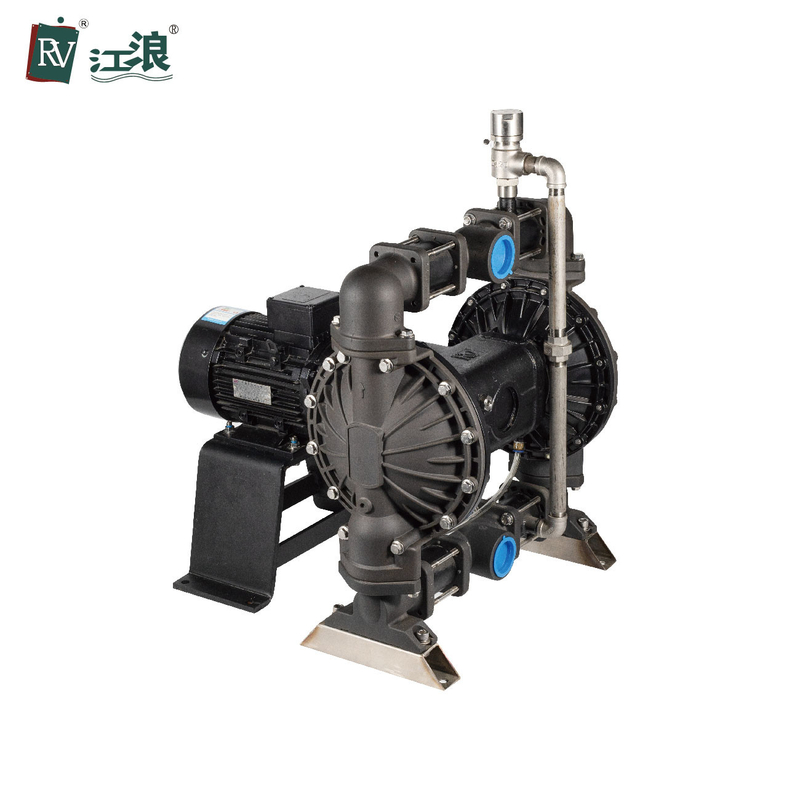

Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch

Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch
Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch

Large Image :  Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVE-F3355-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch

Description
Pump: Electric Double Diaphragm Pump Type: Positive Displacement Pump
Application: Municipal Sludge, Pastes Ect Max. Pressure: 0.6 Mpa
Max. Vapacity: 10.5 M³/h Suction Lift: 3 M
Motor Power: 3 Kw Moto Speed: 1450 R/min
Inet & Outlet: 2"inch Thread Or Flange Diaphragm: Hytrel
High Light:

electric motor driven diaphragm pump for Paint

,

electric motor driven double diaphragm pump

,

electric motor driven diaphragm pump for Paint 2

Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch



Motor Diaphragm Pump Introduction:



Motor diaphragm pump is a new type of transport device, used to transport various materials like liquid, slurry, powder, even of high viscosity, volatile, flammable, highly toxic liquid.



Motor diaphragm pump for powder is featured of high transportation efficiency, non-blocking, excellent sealing, various materials etc. The powder pump supplied by us can be applied in various dry powder like coating material, carbon powder, clay/kaolin, limestone powder, plastic particles, flour, grain particles etc light powder and particles. The pneumatic diaphragm pump is of total sealing pumping mode to transport the powder directly from containers to reaction tanks, reducing the dust pollution.



Advantages:


1) can work under bad air source, the reversing valve is reliable, not easy broken.
2) smooth air path, no air path obstacle from 1/2'to 3'pump,ensuring a flexible reversing.
3) Reversing valve totally externally maintainable.
4) Less moving parts compared to other diaphragms pumps.
5) pilot type reversing valve with long working life, ensuring the continuous running.
6) one reversing valve suits to different size pumps.



Product Details



Max Outlet Pressure
0.6Mpa , 6bar
Max Flow Rate
10.5m³/h
Max Suction Lift
3m
Motor Power
3KW in standard (Senior4.0KW as options
)
Motor Speed
1450r/min
Fluid Inlet Size
2  inch Threaded or Flange
Fluid Outlet Size
2  inch Threaded or Flange
Weight
Stainless steel pump: 122 KGS Aluminum pump: 77KGS Carbon steel pump: 115KGS





Exterior dimension drawing



Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch 0



Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch 1



Packing & Shipping:


Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch 2Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch 3



Diaphragm: longer life time

1. Our raw material, Hytrel from Dupont, Santoprene from Exxon, PTFE from Daikin and Saint-Gobain etc.

2. Increase the height of the diaphragm's arch portion, ensure to reduce the force to the diaphragm edge portation and avoid the diaphragms been pull out.

3. Center place with O-ring design, enhance seal performance.


FAQ



1. Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity. Generally Speaking , 1-7 working day .

4. Q: What about package?
A: Cartons with foam inside & wooden case & Pallet

5. Q: How are the products delivered to us?
A: By International express or Sea.

6. Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
