Sulphuric Nitric Hydrochloric Acid Diaphragm Pump Air Driven 1 1/2" 118gpm

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

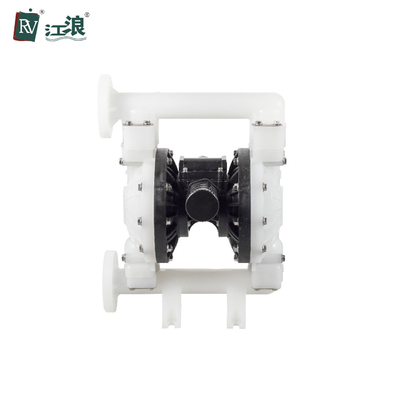

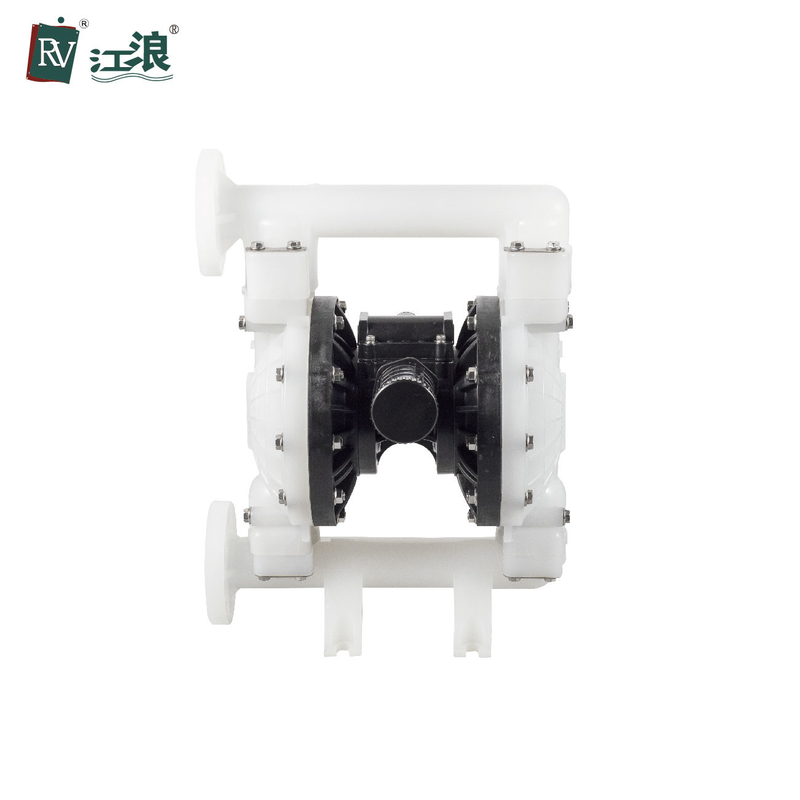

Sulphuric Nitric Hydrochloric Acid Diaphragm Pump Air Driven 1 1/2" 118gpm

Sulphuric Nitric Hydrochloric Acid Diaphragm Pump Air Driven 1 1/2" 118gpm
Sulphuric Nitric Hydrochloric Acid Diaphragm Pump Air Driven 1 1/2" 118gpm

Large Image :  Sulphuric Nitric Hydrochloric Acid Diaphragm Pump Air Driven 1 1/2" 118gpm

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-B2A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Sulphuric Nitric Hydrochloric Acid Diaphragm Pump Air Driven 1 1/2" 118gpm

Description
Name: Air Operated Diaphragm Pump Voltage: Pneumatic
Structure: Single Stage Pump Flow Rate: 446L/M
Weight: 18kgs Carton Size: 49*28*66cm
Size: 1 1/2 Inch Model: RVP-B2A11-F
Certification: CE ATEX ISO9001 Origin: Shanghai, China
High Light:

nitric acid diaphragm pump

,

diaphragm pump Air driven 1 1/2" 118gpm

,

1 1/2 diaphragm pump

1-1/2" Sulphuric Acid Air Operated Diaphragm Pump Used To Various Application



Air Operated Diaphragm Pump Characteristics:

  • air operated diaphragm pump have good suction lift characteristics, some are low pressure pumps with low flow rates; others are capable of higher flow rates, dependent on the effective working diameter of the diaphragm and its stroke length. They can handle sluges and slurries with a relatively high amount of grit and solid content.
  • air operated diaphragm pump design separates pump fluids from potentially sensitive internal pump parts
  • internal pump parts are often suspended and isolated within oil, to promote pump longevity
  • suitable for abrasive, corrosive solutions
  • have good dry running characteristics.
  • are used to make air operated diaphragm pumps for the filters on small tanks
  • can be up to 97% efficient.
  • have good self priming capabilities.
  •



Usage Air Pump
Max Flow Rate 118 gpm(446lpm)
Structure Air Diaphragm Pump
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.2 in(5mm)
Warranty 12 months
Air Inlet Size 1/2 in.npt(f)
Wetted End PP
Fluid Inlet Size 1 1/2 in.
Fluid Outlet Size 1 1/2 in.
Net Weight 15.6 KG





Sulphuric Nitric Hydrochloric Acid Diaphragm Pump Air Driven 1 1/2" 118gpm 0


Packing & Shipping:

Sulphuric Nitric Hydrochloric Acid Diaphragm Pump Air Driven 1 1/2" 118gpm 1Sulphuric Nitric Hydrochloric Acid Diaphragm Pump Air Driven 1 1/2" 118gpm 2
Our service


Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.

Company Introduction:



We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"

Connection type:
-Threaded connection: Plastic air diaphragm pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic air diaphragm pump from 1/2" to 3".



Sulphuric Nitric Hydrochloric Acid Diaphragm Pump Air Driven 1 1/2" 118gpm 3

FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
