Product Details:
|
| Product Name: | Air Operated Diaphragm Pump | Liquid Port: | DN40 |
|---|---|---|---|
| Type: | Acid Pump | Power Source: | Pneumatic |
| Applicantion: | Supplying And Circulating Chemicals In The Semiconductor Industry | Standard Or Non: | Standard |
| Diaphragm Material: | PTFE | Center Block: | Stainless Steel 304 |
| High Light: | Air operated Pneumatic Diaphragm Pump,Pneumatic Diaphragm Pump 1.5 Inch,Polypropylene 1.5 inch diaphragm pump |
||

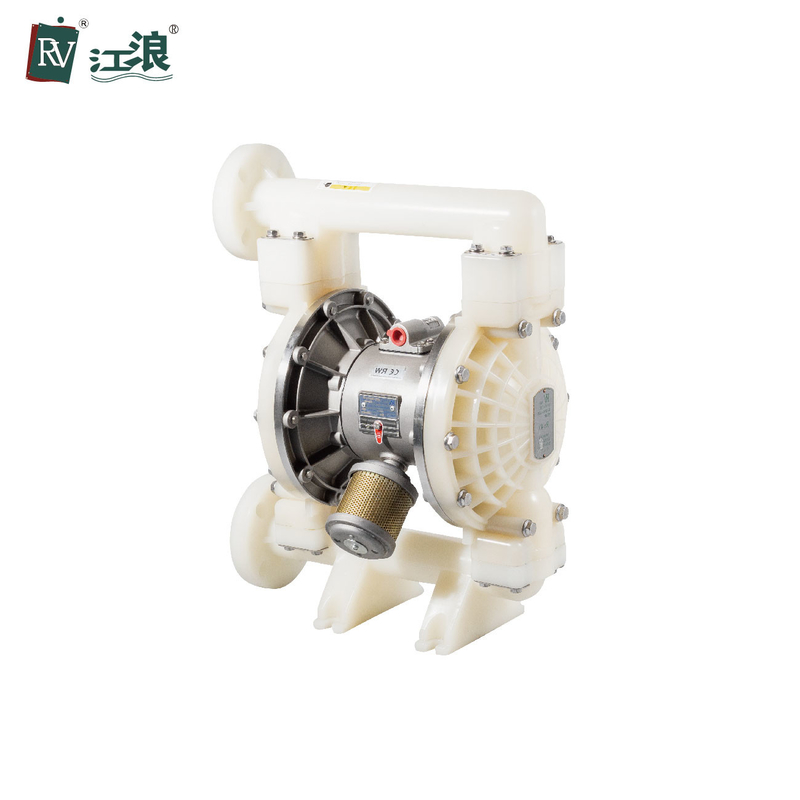

1.5 Inch Polypropylene Air Operated Diaphragm Pump For Circulating Chemicals
Air operated diaphragm pump is a type of a positive displacement pump that uses a combination of the reciprocating action of a rubber or PTFE diaphragm and suitable non-return check valves to pump a liquid.
Sometimes this type of air operated diaphragm pump is also called a membrane pump.
A double diaphragm pump or an Air Operated Diaphragm Pump (AODD) uses compressed air as a power source. It operates by forcing the air out of one chamber and into the next, this action is simultaneous and results in pumping the liquid out of one chamber and into the discharge piping while the other chamber is filling with liquid.
The main characteristics of a Air Operated Diaphragm Pump are;
-Low to moderate capacity
-Low to moderate pressure
-Very low efficiencies
-No seal
-High pulsation
| Max Working Pressure | 120 psi ( 0.8Mpa, 8.4bar) |
| Max Flow Rate | 90 gpm ( 340 lpm) |
| Max Reciprocating Speed | 200 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.2 in ( 5mm) |
| Max Air Consumption | 80 scfm ( 40 L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1-1/3 in. |
| Fluid Outlet Size | 1-1/2 in. |
| Center Block | Stainless Steel 304 |
Pump Casing Materials
Company Introduction:
Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.
Jianglang has established long term business relationship with famous enterprise. Its RV air operated diaphragm pump has been exported to more than 70 countries and regions.
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
FAQ
1. Q: What is MOQ for air operated diaphragm pump?
A: 1pc for regular air operated diaphragm pump. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment for air operated diaphragm pump?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time for air operated diaphragm pump?
A: Depend on the quantity.
4. Q: What about package for air operated diaphragm pump?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty for air operated diaphragm pump?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the air diaphragm pump can be made of different standard?
A: Of course yes. We could air diaphragm pump according to custom need.
