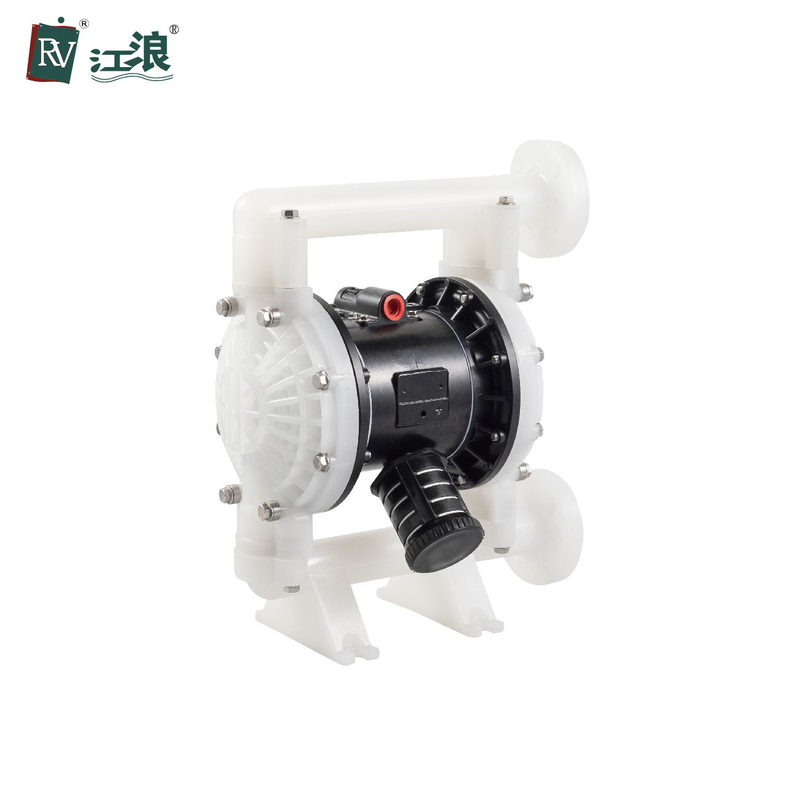

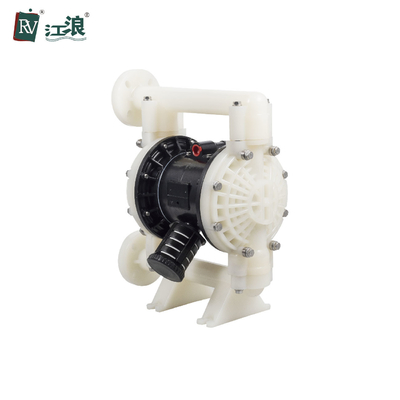

PTFE Membrane Diaphragm Pump Pneumatic Solvent Transfer 1" Plastic Center

PTFE Membrane Diaphragm Pump Pneumatic Solvent Transfer 1" Plastic Center
PTFE Membrane Diaphragm Pump Pneumatic Solvent Transfer 1" Plastic Center PTFE Membrane Diaphragm Pump Pneumatic Solvent Transfer 1" Plastic Center

Large Image :  PTFE Membrane Diaphragm Pump Pneumatic Solvent Transfer 1" Plastic Center

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-72A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

PTFE Membrane Diaphragm Pump Pneumatic Solvent Transfer 1" Plastic Center

Description
Product Name: Air Diaphragm Pump Max. Pressure: 125 Psi
Temperature: Lowest -40 F Highest Temperature: 350 F
Air Valve Material: PP Connection Type: FNPT / FBSP
Ball: PTFE Diaphragm: PTFE
High Light:

PTFE Membrane Diaphragm Pump

,

Membrane Diaphragm Pump For Solvent

,

pneumatic solvent transfer pump 1"

PTFE Membrane Diaphragm Pump pneumatic solvent transfer 1" Plastic Center



Air Driven Double Diaphragm Pump Advantages:

1. Explosion-proof, zero leak, simple operation.

2. Idling capability,Self suction, No complex control.

3. Diversity of material,no rotating parts,applicable to various erosive situations.

4. Diaphragm, ball and ball seat adopt imported materials with longer service life.

5. Modularization of main valve and air motor. No broken, easy to disassemble and repair.



Air Driven Double Diaphragm Pump Installation:



1. Be sure the mounting can support the weight of the pump, hoses, and accessories, as well as the stress during operation progress.

2. During installation, make sure that the pump has been fixed with bolts on the mounting feet.

3. In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the pump.

4. While fastening the pump, rubber pad can be padded to reduce the noise and vibration during operation.


Max Working Pressure 120 psi(0.8Mpa, 8.4bar)
Max Flow Rate 40 gpm(151lpm)
Max Reciprocating Speed 276 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.16 in(4mm)
Max Air Consumption 45scfm(22.5L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 1 in.
Fluid Outlet Size 1 in.
Net Weight PP pump 10kg




PTFE Membrane Diaphragm Pump Pneumatic Solvent Transfer 1" Plastic Center 0




Company Introduction:


Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities



PTFE Membrane Diaphragm Pump Pneumatic Solvent Transfer 1" Plastic Center 1PTFE Membrane Diaphragm Pump Pneumatic Solvent Transfer 1" Plastic Center 2



How Do Air Driven Diaphragm Pump Work



As the name implies, air driven double diaphragm pump use compressed air to operate, rather than an electrical motor. This unique operating characteristic allows them to be used in situations where an electrically powered pump would not be advisable (e.g., when pumping flammable liquids). By their very nature, though, these types of air operated diaphragm pumps must be installed and maintained properly to function as designed.



When these diaphragms are pushed away from (or toward) the center section, or air motor, a vacuum is created in the pump’s body, and fluid flows into one of the liquid chambers through an inlet port. When the diaphragms are subsequently pushed in the opposite direction back to their original positions, again via compressed air, the fluid is expelled from the liquid chamber via an outlet port.



FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air operated diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air operated diaphragm pump quality and service?

A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
