Product Details:
|
Name: | Pnuematic Diaphragm Pump | Structure: | Single Stage Pump |
---|---|---|---|
Max Solid Passage: | 0.37 In (9.4 Mm) | Max. Air Supply: | 8.4 Bar (12 Psi) |
Max. Flow Rate: | 1022 LPM | Balls / Size: | PTFE |
Size: | 3 Inch | Air Disctibution System: | Three-way Pilot Valve |
Pacing Dimension: | 840×480×940mm | ||
High Light: | Plastic Agricultural Diaphragm Pump,Agricultural Diaphragm Pump 3 Inch,3 inch diaphragm pump |

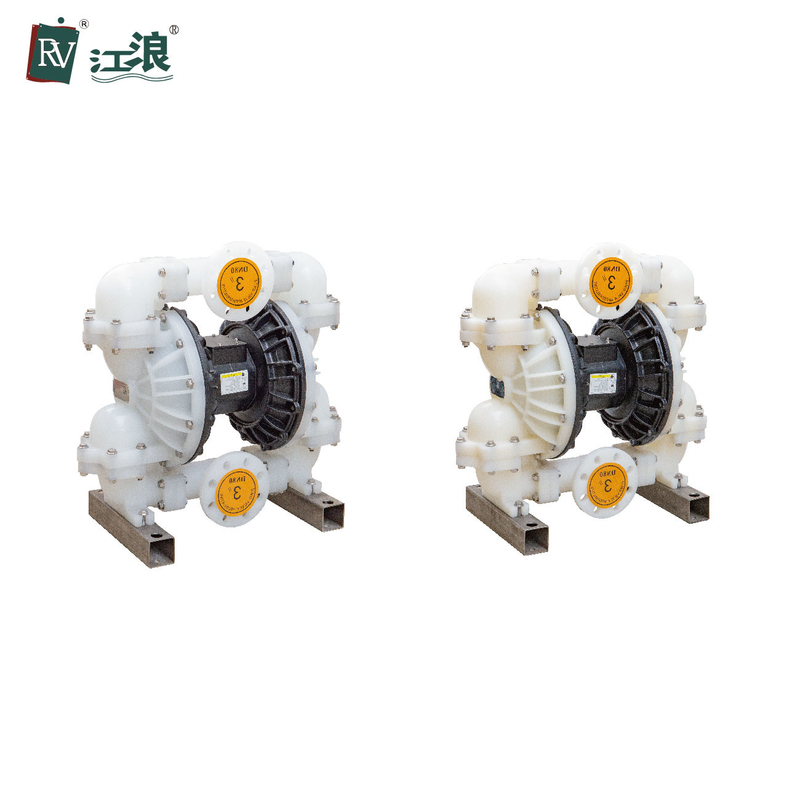

Plastic Agricultural Diaphragm Pump 3 Inch Irrigation Anti Corrosion
Plastic Pneumatic Diaphragm Pump Working Principle:
In the two symmetrical pump chamber equipped with a diaphragm, which is connected by a center couplet stem. Compressed air comes in from pump inlet valve, and enter into one cavity, push the diaphragm movement, and gases emitted from another cavity. Once to the destination, gas distribution components will automatically compressed air into another chamber, push the diaphragm to the opposite direction, thus make two diaphragm continuous synchronization to reciprocating movement.
Compressed air goes into the valve, make the diaphragm to the right movement, and chamber suction make medium enter into, push the ball into the room, ball valve shuts down due to inhalation, Mediums discharged by extrusion, and opened the ball valve and at the same time close the ball valve, prevent back flow, thus to make medium ceaseless from the entrance inhaled, exit eduction.
Main Advantages:
1, Due to the use of air power, the flow automatically changed according to export resistance. Which is suitable for high viscosity fluid.
2, In inflammable and explosive environment, the pneumatic diaphragm pump is reliable and low cost, won't produce spark and not overheat,
3, The pneumatic diaphragm pump volume is small, easy to move, no foundation needed, convenient installation and economy. Can be used as mobile conveying pump.
4, Where there are dangers, corrosive materials processing, pneumatic diaphragm pump can be separated completely with outside.
5, The pneumatic pump shearing force is low, physical effect to medium is small, can be used for conveying unstable chemistry fluid.
Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
Max Flow Rate | 270 gpm ( 1022lpm ) |
Max Reciprocating Speed | 135 cpm |
Max Suction Height (Dry Sucking) | 5m |
Max Permitted Grain | 0.37 in ( 9.4mm) |
Max Air Consumption | 180scfm(90L/s) |
Air Inlet Size | 3/4 in.npt(f) |
Air Outlet Size | 1 in.npt(f) |
Fluid Inlet Size | 3 in. |
Fluid Outlet Size | 3 in. |
Net Weight | PP 51 kg |
