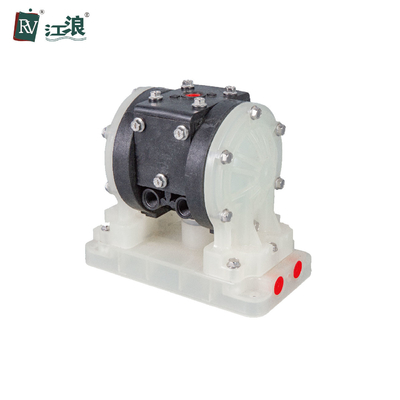

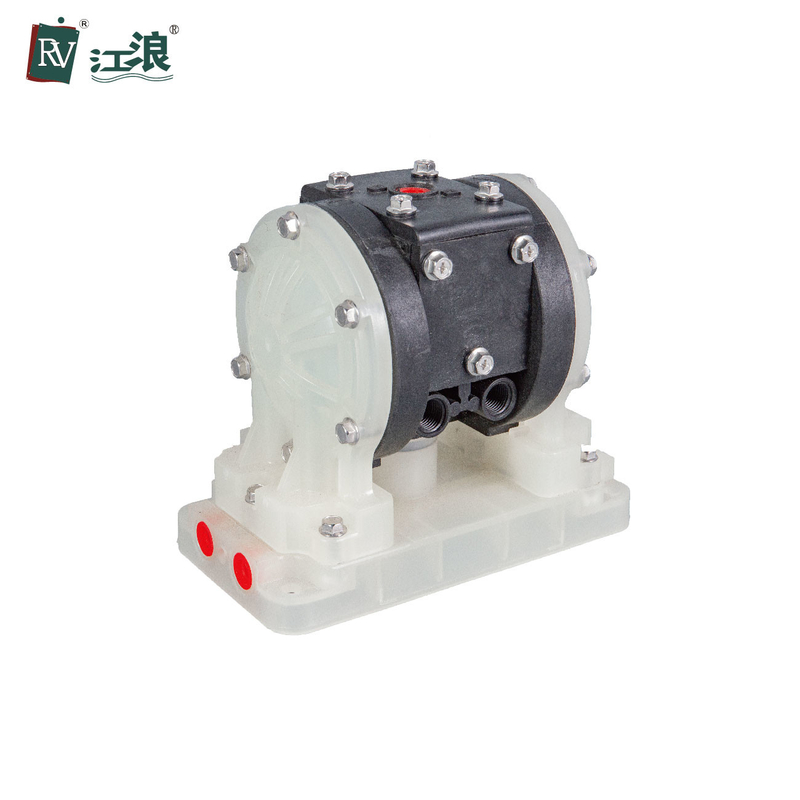

1/4 Inch PVDF Diaphragm Pump For Grease Diaphragm Chemical Metering Pump

1/4 Inch PVDF Diaphragm Pump For Grease Diaphragm Chemical Metering Pump
1/4 Inch PVDF Diaphragm Pump For Grease Diaphragm Chemical Metering Pump 1/4 Inch PVDF Diaphragm Pump For Grease Diaphragm Chemical Metering Pump

Large Image :  1/4 Inch PVDF Diaphragm Pump For Grease Diaphragm Chemical Metering Pump

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-15001-0
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1/4 Inch PVDF Diaphragm Pump For Grease Diaphragm Chemical Metering Pump

Description
Materal: PVDF Brand: RV
Color: White Flow Rate: 19L/M
Weight: 1.5kgs Carton Size: 21*16*20cm
Size: 1/4 Inch Model: RVP-15001-0
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

1/4 inch PVDF diaphragm pump

,

PVDF diaphragm pump for grease

,

Grease Diaphragm Chemical Metering Pump

1/4 Inch PVDF Diaphragm Pump For Grease Diaphragm Chemical Metering Pump



Air Driven Double Diaphragm Pump Advantages:

  • True-formed PTFE diaphragms for enhanced performance
  • Spring loaded checks allow the diaphragm pump to work in any orientation
  • Inlet and Outlet are interchangeable
  • Remote control option using an external controller
  • 1/4-in (6.35 mm) end-porting double diaphragm pump



Max Working Pressure 100 psi(0.7Mpa, 7bar)
Max Flow Rate 5.0 gpm(19lpm)
Max Reciprocating Speed 320 cpm
Max Suction Height (Dry Sucking) 3m
Max Permitted Grain 0.06 in(1.5mm)
Max Air Consumption 7.0scfm(3.5L/s)
Air Inlet Size 1/4 in.npt(f)
Air Outlet Size 1/4 in.npt(f)
Fluid Inlet Size 1/4 in.
Fluid Outlet Size 1/4 in.
Net Weight PP pump 1.1kg; PVDF pump 1.5kg



1/4 Inch PVDF Diaphragm Pump For Grease Diaphragm Chemical Metering Pump 0




Packing & Shipping:

1/4 Inch PVDF Diaphragm Pump For Grease Diaphragm Chemical Metering Pump 11/4 Inch PVDF Diaphragm Pump For Grease Diaphragm Chemical Metering Pump 2
Suction Lift


Suction lift curves are calibrated for pumps operating at 1,000’ (305 m) above sea level. This chart is meant to be a guide only. There are many variables which can affect your pump’s operating characteristics. The number of intake and discharge elbows, viscosity of pumping fluid, elevation (atmospheric pressure) and pipe friction loss all affect the amount of suction lift your pump will attain.


FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time for air diaphragm pump?
A: Depend on the quantity.

4. Q: What about package for air diaphragm pump?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty for air diaphragm pump?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
