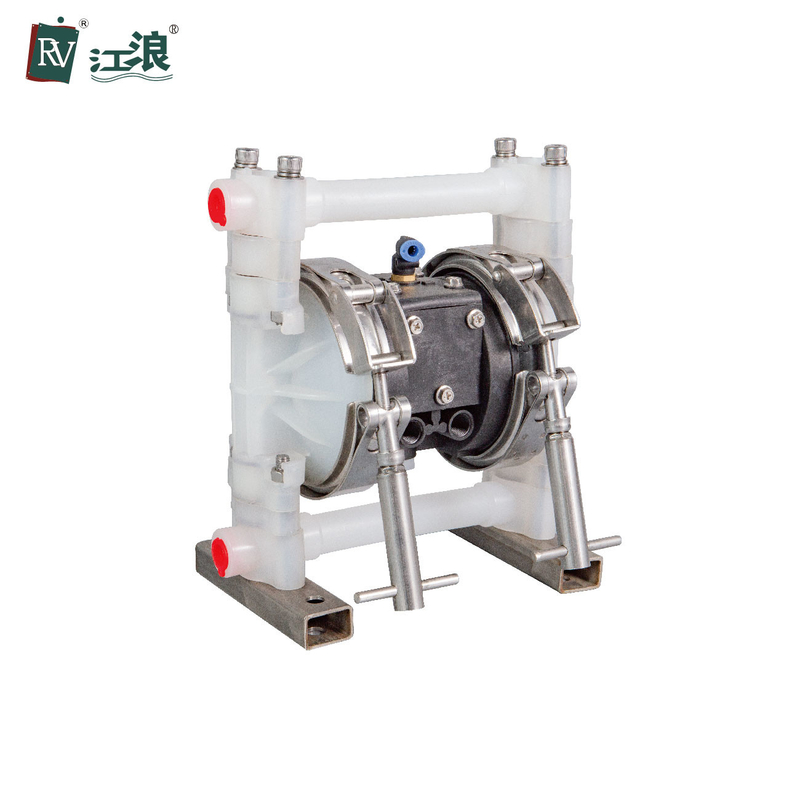

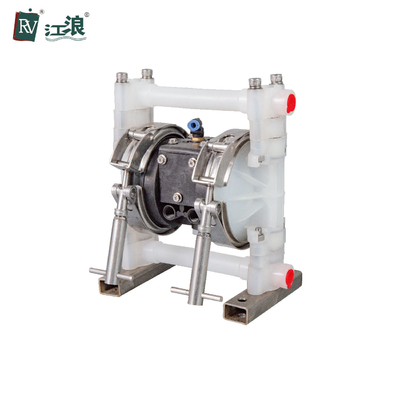

3/8 Inch Low Pressure Diaphragm Pump Air Operated Pneumatic

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

3/8 Inch Low Pressure Diaphragm Pump Air Operated Pneumatic

3/8 Inch Low Pressure Diaphragm Pump Air Operated Pneumatic
3/8 Inch Low Pressure Diaphragm Pump Air Operated Pneumatic 3/8 Inch Low Pressure Diaphragm Pump Air Operated Pneumatic

Large Image :  3/8 Inch Low Pressure Diaphragm Pump Air Operated Pneumatic

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-32A11-T(S)
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3/8 Inch Low Pressure Diaphragm Pump Air Operated Pneumatic

Description
Pump Housing: PP Brand: RV
Valve Seat: PVDF Valve Ball: PTFE
Diaphragm: PTFE Carton Size: 25*20*36cm
Size: 3/8 Inch Model: RVP-32A11-T(S)
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
Usage: Chemical, Water
High Light:

3/8 inch Low Pressure Diaphragm Pump

,

Low Pressure diaphragm pump air operated

,

low pressure diaphragm air pump

3/8 inch Low Pressure diaphragm pump air operated Pneumatic



Which Fluids can Polypropylene Diaphragm Pump:

  • Powders
  • Titanium Dioxide
  • Latex
  • Adhesives
  • Lacquers
  • Greases
  • Paints
  • Varnishes



Polypropylene Diaphragm Pump Advantages:



RV air operated diaphragm pumps are characterized by exceptional performance, power and strength, making them ideal for pumping liquids with high apparent viscosity even if containing suspended solids. The pneumatic system assures a safe air operated diaphragm pump running and it does not need lubricated air.





Type RV10
Inlet size 3/8"
Outlet size 3/8"
Air inlet size 1/4"
Suction lift (dry) 3m
Max. working pressure 7bar ; 0.7MPa
Max. flow rate 26.5 l/min(1.56m³/h)
Max. delivery lift 70m
Max. grain diameter 1.6mm
Weight PP: 3kgs
PVDF: 4kgs
Acetal: 4kgs
Available body material PP. Acetal. PVDF





3/8 Inch Low Pressure Diaphragm Pump Air Operated Pneumatic 0



Packing & Shipping:



3/8 Inch Low Pressure Diaphragm Pump Air Operated Pneumatic 1




Company Information:

Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

Air Operated Diaphragm Pump and Control Valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for air operated diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.

Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.


3/8 Inch Low Pressure Diaphragm Pump Air Operated Pneumatic 2


FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.


2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.


3. Q: What is the delivery time?
A: Depend on the quantity.


4. Q: What about package?
A: Cartons with foam inside & wooden case.


5. Q: How are the products delivered to us?
A: By International express.


6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)


7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
