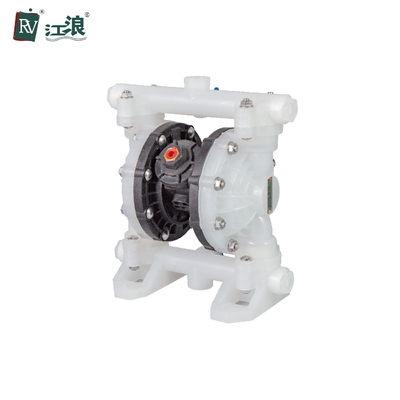

1/2" Double Diaphragm Slurry Pump 7 Bar Low Pressure

1/2" Double Diaphragm Slurry Pump 7 Bar Low Pressure
1/2" Double Diaphragm Slurry Pump 7 Bar Low Pressure 1/2" Double Diaphragm Slurry Pump 7 Bar Low Pressure

Large Image :  1/2" Double Diaphragm Slurry Pump 7 Bar Low Pressure

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-52A66-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1/2" Double Diaphragm Slurry Pump 7 Bar Low Pressure

Description
Type: Air Operated Diaphragm Pump Place Of Origin: Shanghai, China
Pressure: 7 Bar, Low Pressure Power: Pneumatic
OEM: Applicable Displacement Per Cycle (Liters): 0.15
Material Of Diaphragm: SP Santoprene Weight: 4.6kg
High Light:

1/2" double diaphragm slurry pump

,

double diaphragm slurry pump 7 bar

,

double waste oil diaphragm pump

1/2 inch Low Pressure Air Driven Double Diaphragm Pump For Water Treatment Industry



Air Driven Double Diaphragm Pump Function Application:


The air driven double diaphragm pumps use compressed air as power source, and it is the most advanced type of air driven double diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.



Air Driven Double Diaphragm Pump Function Description:



A Simple structure,reliable connection ,easy assembly and disassembly.
B Modular design,low air consumption,no dead spots and no need lubrication.
C Enhanced the chamber strength,has long_term durability.
D Bolts connection design,good seal.
E Adopt special grinding machine to process in high roundness and good seal.
F Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm.





Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
Max Capacity 15 gpm ( 57lpm )
Max Reciprocating Speed 400 cpm
Power Pnuematic
Max Permitted Grain 3/32 in ( 2.5mm )
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt (f)
Air Outlet Size 3/8 in.npt (f)
Fluid Inlet Size 1/2 in.
Fluid Outlet Size 1/2 in.
Net Weight 3.4kg

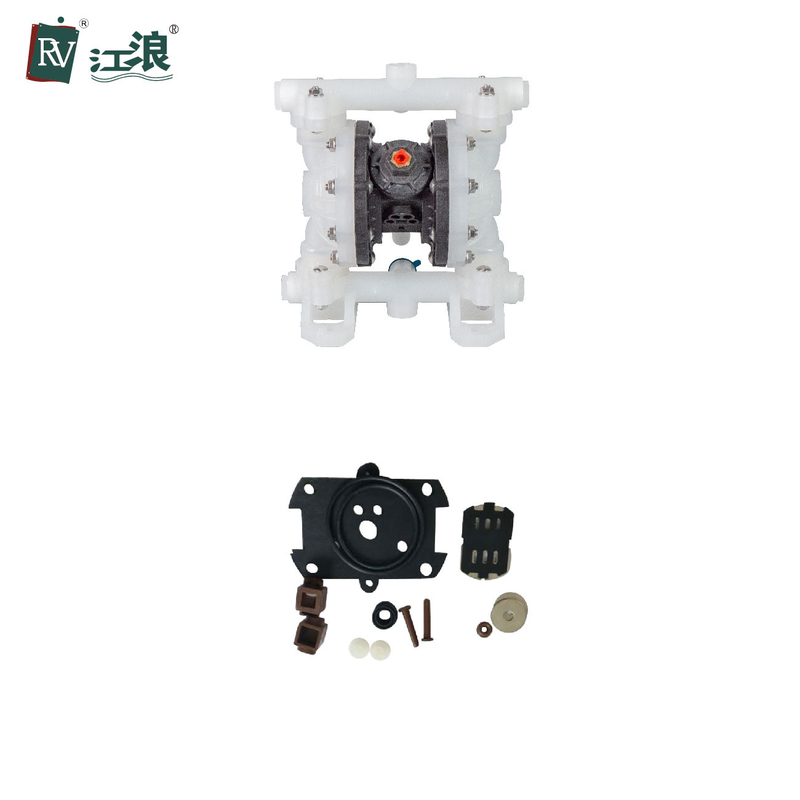

1/2" Double Diaphragm Slurry Pump 7 Bar Low Pressure 0



Packing & Shipping:



1/2" Double Diaphragm Slurry Pump 7 Bar Low Pressure 1


Company Information



Jianglang Technology Co.,Ltd headquartered in Jinshan District of Shanghai, with more than 120 employees and 2 manufacturing base. It has branch offices in Pudong District of Shanghai and Chengdu. It has been continuously granted as the “High-Tech Enterprise” and “Credit Company” every year.
We have department for independent design and innovation, we have skillful worker teams with strong ability for precision machining, we have tight cooperation with Shanghai universities.

we mainly produce Air Driven Double Diaphragm Pump, Electric Diaphragm Pump, and Pump Systems Complete, Regulating Valve, Control Valve, Sequencing Valve, ect.


FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air operated diaphragm pump have?

A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air operated diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air diaphragm pump quality and service?

A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
