Product Details:
|
| Product Name: | Air Diaphragm Pump | Type: | Fuel & Oil Transfer Pump |
|---|---|---|---|
| Pump Casting: | SS 316 | Model Type: | RVP-5L455-T |
| Lift: | 230 FT / 70meter | Application: | Commercial Buildings, Drinking Water Treatment |
| Structure: | Diaphragm Pump | Weight: | 8.9kg |
| High Light: | Air-Operated Double Diaphragm Pump 1/2 Inch,Double Diaphragm Pump 1/2 Inch Outlet,petrol diaphragm pump |
||

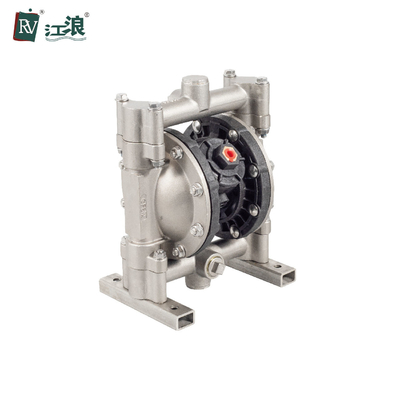

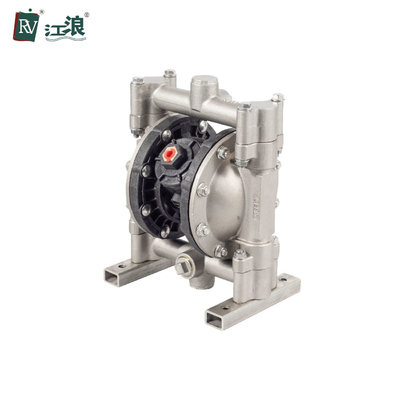

1/2'' Stainless Steel Double Diaphragm Pump For Pharmaceutical Solvent Transfer
Air Driven Double Diaphragm Pump Advantages:
1. Explosion-proof, zero leak, simple operation.
2. Idling capability,Self suction, No complex control.
3. Diversity of material,no rotating parts,applicable to various erosive situations.
4. Diaphragm, ball and ball seat adopt imported materials with longer service life.
5. Modularization of main valve and air motor. No broken, easy to disassemble and repair.
Air Driven Double Diaphragm Pump Installation:
1. Be sure the mounting can support the weight of the pump, hoses, and accessories, as well as the stress during operation progress.
2. During installation, make sure that the pump has been fixed with bolts on the mounting feet.
3. In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the pump.
4. While fastening the pump, rubber pad can be padded to reduce the noise and vibration during operation.
| Max Discharge Pressure | 100 psi ( 0.7Mpa, 7bar ) |
| Max Capacity | 15 gpm ( 57lpm ) |
| Max Reciprocating Speed | 400 cpm |
| Power | Pnuematic |
| Max Permitted Grain | 3/32 in ( 2.5mm ) |
| Advantages: | Explosion-proof |
| Air Inlet Size | 1/4 in.npt (f) |
| Air Outlet Size | 3/8 in.npt (f) |
| Fluid Inlet Size | 1/2 in. |
| Fluid Outlet Size | 1/2 in. |
| Net Weight | 8.9kg |
Packing & Shipping:
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Air diaphragm pump (AODD) pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, air diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic air diaphragm pumps, electric diaphragm pumps for a wide range customers.
Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of air diaphragm pump have?
A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.
Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
Air operated diaphragm pump can suck various toxin and flammable or volatility liquid etc.
Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How air operated diaphragm pump quality and service?
A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
