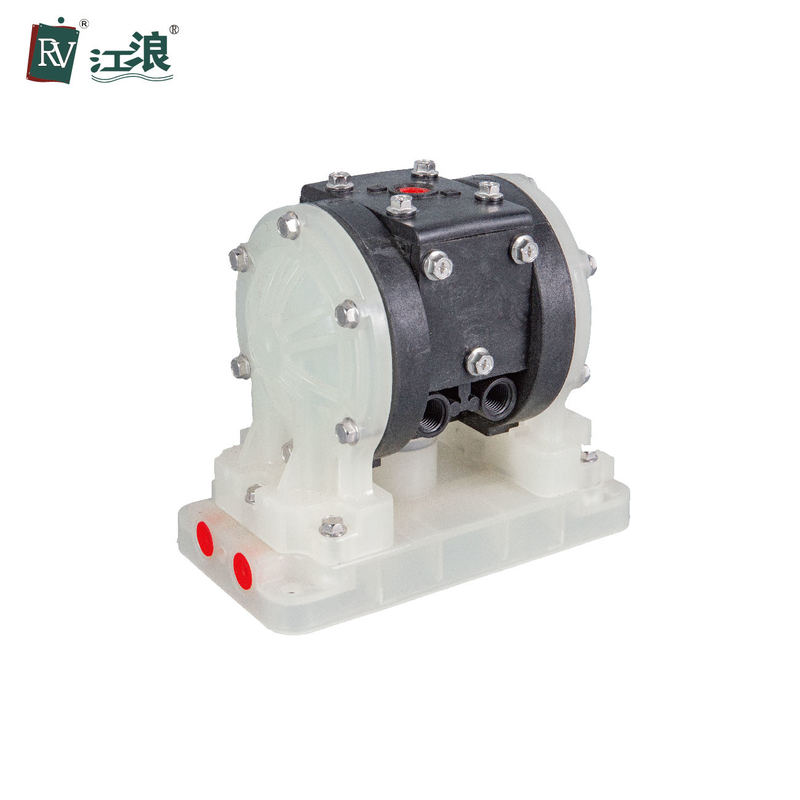

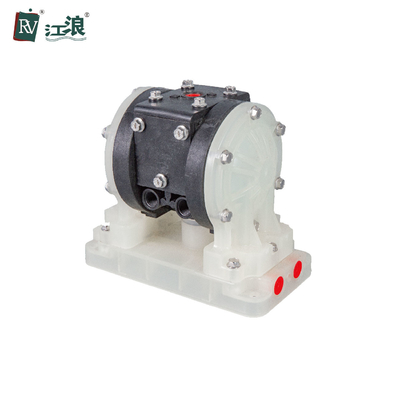

1/4 Inch Dual Diaphragm Pump For Acid Chemicals PVDF

1/4 Inch Dual Diaphragm Pump For Acid Chemicals PVDF
1/4 Inch Dual Diaphragm Pump For Acid Chemicals PVDF 1/4 Inch Dual Diaphragm Pump For Acid Chemicals PVDF

Large Image :  1/4 Inch Dual Diaphragm Pump For Acid Chemicals PVDF

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-15001-0
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1/4 Inch Dual Diaphragm Pump For Acid Chemicals PVDF

Description
Materal: PVDF Brand: RV
Color: White Flow Rate: 19L/M
Weight: 1.5kgs Carton Size: 21*16*20cm
Size: 1/4 Inch Model: RVP-15001-0
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
Highlight:

1/4 inch dual diaphragm pump

,

dual diaphragm pump for Acid

,

double membrane pump vacuum

1/4 inch PVDF Air Driven Diaphragm Pump for Strong Acid Chemicals



Air Driven Double Diaphragm Pump Specification:



Brand
RV
Material
PVDF
Color
White
Function
Fluid Handling, Pump Industrial Applications
Feature
1/4 inch end-porting, Spring check valves for superior priming in any mounting configuration
Usage
Wastewater chemical supply, Laundry chemicals and detergents handled



Air Driven Double Diaphragm Pump Description:



A Simple structure,reliable connection ,easy assembly and disassembly.
B Modular design,low air consumption,no dead spots and no need lubrication.
C Enhanced the chamber strength,has long_term durability.
D Bolts connection design,good seal.
E Adopt special grinding machine to process in high roundness and good seal.
F Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm.







Max Working Pressure 100 psi(0.7Mpa, 7bar)
Max Flow Rate 5.0 gpm(19lpm)
Max Reciprocating Speed 320 cpm
Max Suction Height (Dry Sucking) 3m
Max Permitted Grain 0.06 in(1.5mm)
Max Air Consumption 7.0scfm(3.5L/s)
Air Inlet Size 1/4 in.npt(f)
Air Outlet Size 1/4 in.npt(f)
Fluid Inlet Size 1/4 in.
Fluid Outlet Size 1/4 in.
Net Weight PP pump 1.1kg; PVDF pump 1.5kg



1/4 Inch Dual Diaphragm Pump For Acid Chemicals PVDF 0




Packing & Shipping:

1/4 Inch Dual Diaphragm Pump For Acid Chemicals PVDF 11/4 Inch Dual Diaphragm Pump For Acid Chemicals PVDF 2
Our service


* All of the enquiry will be replied within 24 working hours
* Professional air diaphragm pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service


Company Introduction:



We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are air diaphragm pump and control valves, including: Air Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Air Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

The air diaphragm pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.




FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time for air diaphragm pump?
A: Depend on the quantity.

4. Q: What about package for air diaphragm pump?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty for air diaphragm pump?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
