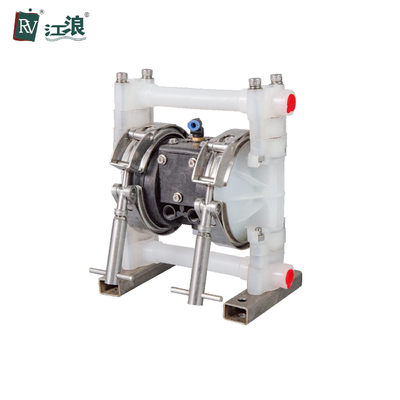

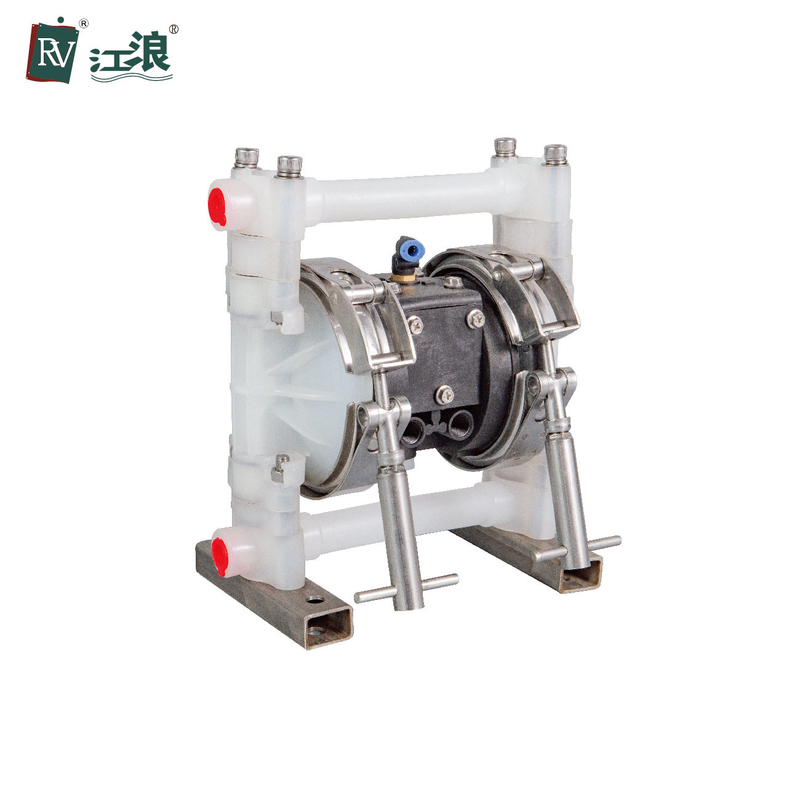

3/8in Double Diaphragm Fuel Transfer Pump 26.5 L/Min Polypropylene Mini

3/8in Double Diaphragm Fuel Transfer Pump 26.5 L/Min Polypropylene Mini
3/8in Double Diaphragm Fuel Transfer Pump 26.5 L/Min Polypropylene Mini 3/8in Double Diaphragm Fuel Transfer Pump 26.5 L/Min Polypropylene Mini

Large Image :  3/8in Double Diaphragm Fuel Transfer Pump 26.5 L/Min Polypropylene Mini

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-32911-T(S)
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3/8in Double Diaphragm Fuel Transfer Pump 26.5 L/Min Polypropylene Mini

Description
Pump Housing: PP Brand: RV
Valve Seat: PP Valve Ball: PTFE
Diaphragm: PTFE Carton Size: 25*20*36cm
Size: 3/8 Inch Model: RVP-32911-T(S)
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
Usage: Chemical, Water
High Light:

3/8in double diaphragm fuel transfer pump 26.5 l/min

,

double diaphragm fuel transfer pumps 26.5 l/min

,

double aod pump 26.5 l/min

3/8'' Polypropylene Mini Water Air Driven Diaphragm Pump

Air Driven Double Diaphragm Pump Advantages:



Idling ,Self-priming , Submerse capability.

Provide stall-free, ice-free zero leak operation.

Epoxy-coated air section for tough environmental conditions.

Bolt joint design provides even sealing pressure for optimal performance.

Diversity of material,no rotating parts,applicable to various erosive situations.

Modular air valve,low pulsation operation,providing smooth and rapid changeover.

No electricity . It's safe and realiable while using in the flammable and explor place .

Can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.



Air Driven Double Diaphragm Pump Application:



The pumps are widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.





Type RV10
Inlet size 3/8"
Outlet size 3/8"
Air inlet size 1/4"
Suction lift (dry) 3m
Max. working pressure 7bar ; 0.7MPa
Max. flow rate 26.5 l/min(1.56m³/h)
Max. delivery lift 70m
Max. grain diameter 1.6mm
Weight PP: 3kgs
PVDF: 4kgs
Acetal: 4kgs
Available body material PP. Acetal. PVDF



3/8in Double Diaphragm Fuel Transfer Pump 26.5 L/Min Polypropylene Mini 0
3/8in Double Diaphragm Fuel Transfer Pump 26.5 L/Min Polypropylene Mini 1

Company Information:

Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

Air Operated Diaphragm Pump and Control Valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for air operated diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.

Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.


3/8in Double Diaphragm Fuel Transfer Pump 26.5 L/Min Polypropylene Mini 2


FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
