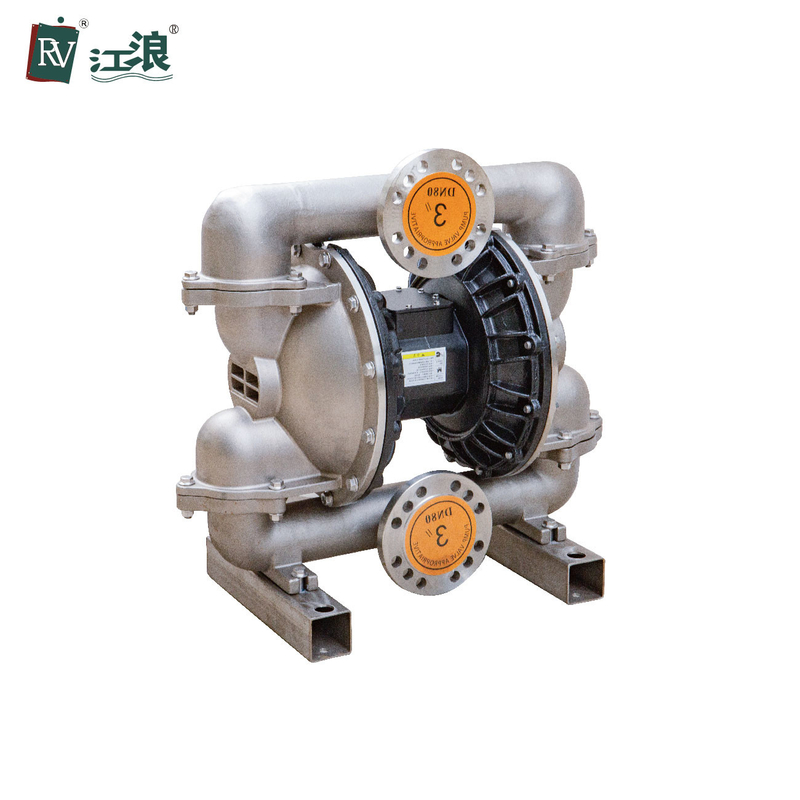

3 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316

3 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316
3 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316 3 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316

Large Image :  3 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-K4311-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316

Description
Pump Materal: Stainless Steel 304 Certification: ATEX
Form Of Pipe: ANSI FLANGE Diaphragm Material: PTFE
Ball Material: PTFE Wooden Case Packing: 840×480×940mm
Size: 3 Inch Noise Level: Lower Than 75 Db
Theory: Air Diaphragm Pump
High Light:

3 double diaphragm pump

,

double diaphragm pump High Flow

,

double diaphragm pump air operated

3 inch Stainless Steel High Flow Air Driven Diaphragm Pump

Air Driven Double Diaphragm Pump Application:


Air Driven Double Diaphragm Pumps are widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc.

Air Driven Double Diaphragm Pump Advantage:

  • Idling ,Self-priming , Submerse capability.
  • Provide stall-free, ice-free zero leak operation.
  • Epoxy-coated air section for tough environmental conditions.
  • Low shear force , not easy to damage the material structure.
  • Bolt joint design provides even sealing pressure for optimal performance
  • Modular air valve,low pulsation operation,providing smooth and rapid changeover.
  • Diversity of material,no rotating parts,applicable to various erosive situations.
  • No electricity . It's safe and realiable while using in the flammable and explor place .
  • Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
  • Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.




Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 270 gpm ( 1022lpm )
Max Reciprocating Speed 135 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37 in ( 9.4mm)
Max Air Consumption 180scfm(90L/s)
Air Inlet Size 3/4 in.npt(f)
Air Outlet Size 1 in.npt(f)
Fluid Inlet Size 3 in.
Fluid Outlet Size 3 in.
Net Weight Stainless Steel 122 kg



Type of Diaphragm IMAGE Typical Usage
PTFE 3 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316 0 Excellent choice when pumping highly aggressive fluids such as aromatic or chlorinated hydrocarbons, acids, caustics, ketones and acetates.
Temperature range +4°C to +104 C (+40 F to +220F)


3 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316 1

3 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316 23 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316 3

VERSATILITY

This air diaphragm pump handles viscous fluids, slurries, solid laden fluids, no priming needed, no foaming of fluid pumped, no stall damages, portable

3 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316 43 Inch Double Diaphragm Pump High Flow Air Driven Stainless Steel 316 5

INSTALLATION

Be sure the mounting can support the weight of the air diaphragm pump, hoses, and accessories, as well as the stress during operation progress.

During installation, make sure that the air diaphragm pump has been fixed with bolts on the mounting feet.

In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the air diaphragm pump.

While fastening the air diaphragm pump, rubber pad can be padded to reduce the noise and vibration during operation.
