Product Details:
|
Type: | Air Operated Diaphragm Pump | Place Of Origin: | Shanghai, China |
---|---|---|---|
Pressure: | 7 Bar, Low Pressure | Power: | Pneumatic |
OEM: | Applicable | Valve Ball Material: | PTFE |
Material Of Diaphragm: | PTFE Santoprene | Weight: | 4.6kg |
High Light: | air operated double diaphragm aodd pump,double diaphragm aodd pump 1/2 inch,air-operated double diaphragm pump |

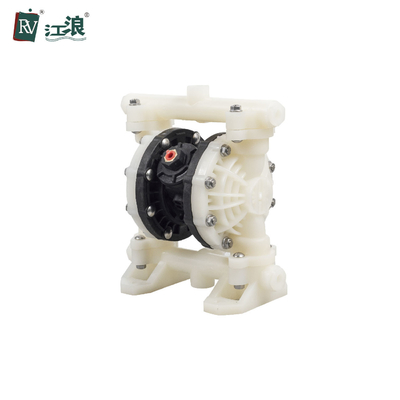

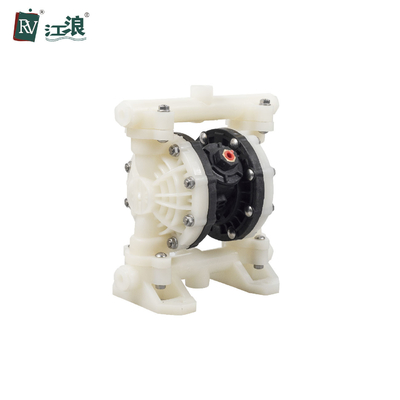

1/2 inch PVDF Air Driven Diaphragm Pump for Chemical Liquid
Idling ,Self-priming , Submerse capability.
Provide stall-free, ice-free zero leak operation.
Epoxy-coated air section for tough environmental conditions.
Bolt joint design provides even sealing pressure for optimal performance.
Diversity of material,no rotating parts,applicable to various erosive situations.
Modular air valve,low pulsation operation,providing smooth and rapid changeover.
No electricity . It's safe and realiable while using in the flammable and explor place .
Can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
Max Discharge Pressure | 100 psi ( 0.7Mpa, 7bar ) |
Max Capacity | 15 gpm ( 57lpm ) |
Max Reciprocating Speed | 400 cpm |
Power | Pnuematic |
Max Permitted Grain | 3/32 in ( 2.5mm ) |
Advantages: | Explosion-proof |
Air Inlet Size | 1/4 in.npt (f) |
Air Outlet Size | 3/8 in.npt (f) |
Fluid Inlet Size | 1/2 in. |
Fluid Outlet Size | 1/2 in. |
Net Weight | 3.4kg |
How Do Air Driven Diaphragm Pump Work
As the name implies, air operated diaphragm pump (AODD) use compressed air to operate, rather than an electrical motor. This unique operating characteristic allows them to be used in situations where an electrically powered pump would not be advisable (e.g., when pumping flammable liquids). By their very nature, though, these types of air operated diaphragm pumps must be installed and maintained properly to function as designed.
When these diaphragms are pushed away from (or toward) the center section, or air motor, a vacuum is created in the pump’s body, and fluid flows into one of the liquid chambers through an inlet port. When the diaphragms are subsequently pushed in the opposite direction back to their original positions, again via compressed air, the fluid is expelled from the liquid chamber via an outlet port.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of air operated diaphragm pump have?
A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.
Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
Air operated diaphragm pump can suck various toxin and flammable or volatility liquid etc.
Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How air diaphragm pump quality and service?
A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
