Product Details:
|
| Type: | Air Operated Diaphragm Pump | Place Of Origin: | Shanghai, China |
|---|---|---|---|
| Pressure: | 7 Bar, Low Pressure | Power: | Pneumatic |
| OEM: | Applicable | Material Of Valve Seat: | PVDF |
| Material Of Diaphragm: | PTFE (Santoprene As Backup) | Weight: | 4.6kg |
| High Light: | 1/2 inch air driven double diaphragm pump,air driven double diaphragm pump fuel,air-operated double diaphragm oil pump |
||

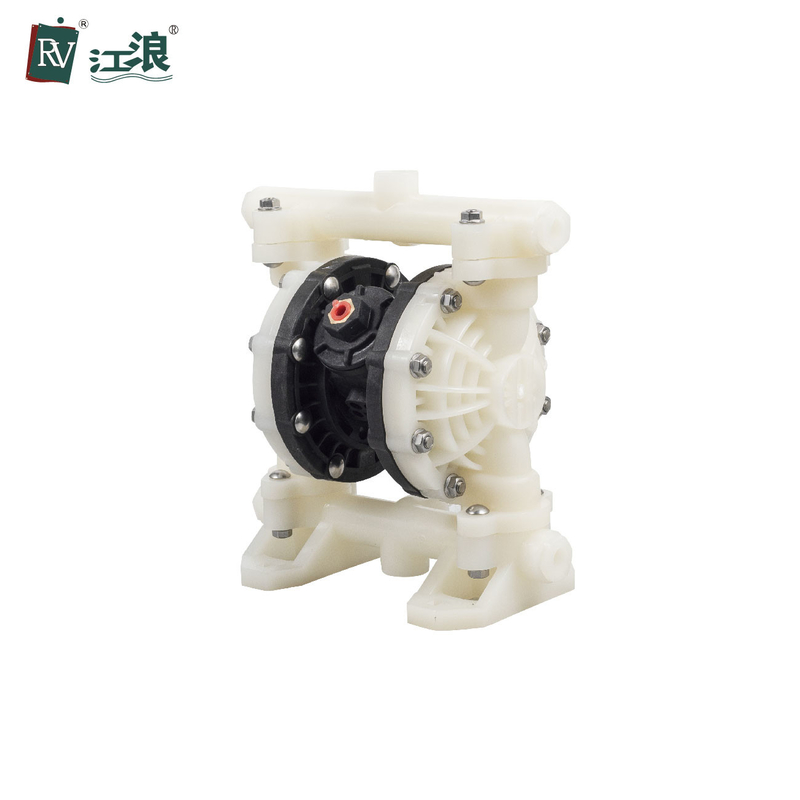

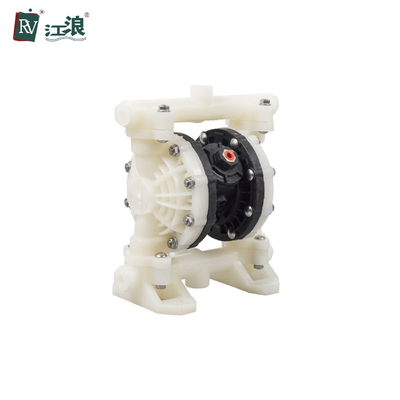

1/2 inch PVDF Air Driven Diaphragm Pump for Water Treatment Industry
Air Driven Double Diaphragm Pump Function Description:
| A | Simple structure,reliable connection ,easy assembly and disassembly. |
| B | Modular design,low air consumption,no dead spots and no need lubrication. |
| C | Enhanced the chamber strength,has long term durability. |
| D | Bolts connection design,good seal. |
| E | Adopt special grinding machine to process in high roundness and good seal. |
| F | Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm. |
| Max Discharge Pressure | 100 psi ( 0.7Mpa, 7bar ) |
| Max Capacity | 15 gpm ( 57lpm ) |
| Max Reciprocating Speed | 400 cpm |
| Power | Pnuematic |
| Max Permitted Grain | 3/32 in ( 2.5mm ) |
| Advantages: | Explosion-proof |
| Air Inlet Size | 1/4 in.npt (f) |
| Air Outlet Size | 3/8 in.npt (f) |
| Fluid Inlet Size | 1/2 in. |
| Fluid Outlet Size | 1/2 in. |
| Net Weight | 3.4kg |
Company Information
Jianglang Technology Co.,Ltd headquartered in Jinshan District of Shanghai, with more than 120 employees and 2 manufacturing base. It has branch offices in Pudong District of Shanghai and Chengdu. It has been continuously granted as the “High-Tech Enterprise” and “Credit Company” every year.
We have department for independent design and innovation, we have skillful worker teams with strong ability for precision machining, we have tight cooperation with Shanghai universities.
we mainly produce Pneumatic Diaphragm Pump, Electric Diaphragm Pump, and Pump Systems Complete, Regulating Valve, Control Valve, Sequencing Valve, ect.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of air operated diaphragm pump have?
A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.
Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
Air operated diaphragm pump can suck various toxin and flammable or volatility liquid etc.
Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How air diaphragm pump quality and service?
A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
