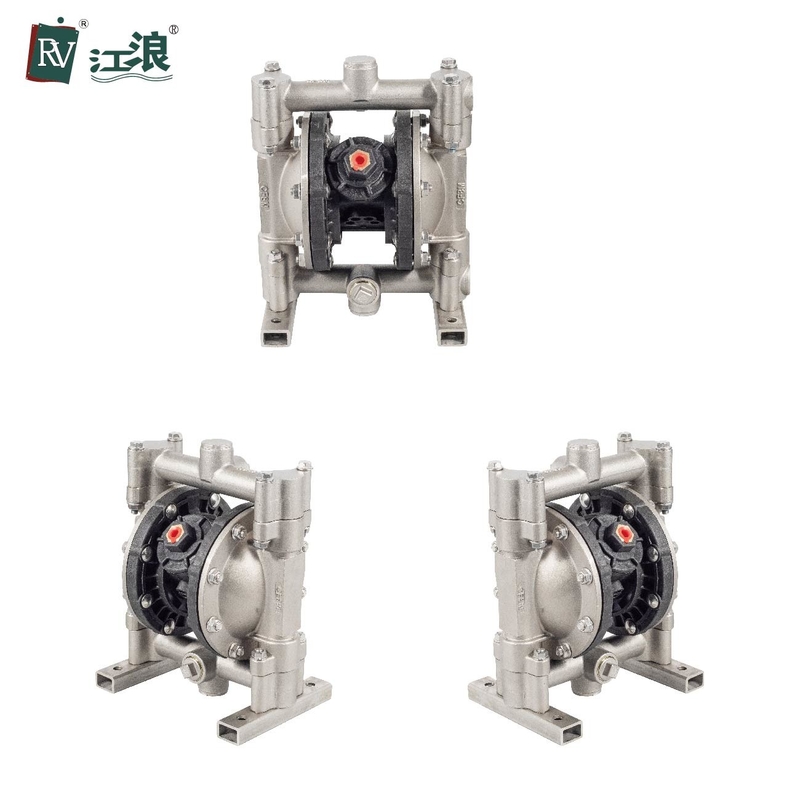

Explosion Proof Stainless Steel Air Diaphragm Pump 1/2" Acid Chemical Dosing

Explosion Proof Stainless Steel Air Diaphragm Pump 1/2" Acid Chemical Dosing
Explosion Proof Stainless Steel Air Diaphragm Pump 1/2" Acid Chemical Dosing

Large Image :  Explosion Proof Stainless Steel Air Diaphragm Pump 1/2" Acid Chemical Dosing

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVS-5L411-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Explosion Proof Stainless Steel Air Diaphragm Pump 1/2" Acid Chemical Dosing

Description
Product Name: Pneumatic Diaphragm Pump Type: Chemical Transfer Pump
Pump Casting: SS 316 Model Type: RVS-5L411-T
Lift: 230 FT / 70meter Application: Commercial Buildings, Drinking Water Treatment
Structure: Diaphragm Pump Weight: 6.8 Kg
High Light:

explosion proof air diaphragm pump

,

Stainless Steel air diaphragm pump 1/2

,

air operated dosing pump

Explosion Proof Stainless Steel Air Diaphragm Pump 1/2" Acid Chemical Dosing



Pneumatic Diaphragm Pump Application:



1. The pneumatic diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
2. The
pneumatic diaphragm pump can suck the paint, pigment, glue and adhesive etc.
3. The
pneumatic diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The
pneumatic diaphragm pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The
pneumatic diaphragm pump can suck various toxin and flammable or volatility liquid etc.
6. The
pneumatic diaphragm pump can suck various wedge water, cement slurry and mortar etc.
7. The
pneumatic diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step tranmission device of the solid and liquid separation equipment.





 Pneumatic Diaphragm Pump Installation:



1. Be sure the mounting can support the weight of the pump, hoses, and accessories, as well as the stress during operation progress.

2. During installation, make sure that the pneumatic diaphragm pump has been fixed with bolts on the mounting feet.

3. In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the pump.

4. While fastening the pneumatic diaphragm pump, rubber pad can be padded to reduce the noise and vibration during operation.





Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
Max Capacity 15 gpm ( 57lpm )
Max Reciprocating Speed 400 cpm
Power Pnuematic
Max Permitted Grain 3/32 in ( 2.5mm )
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt (f)
Air Outlet Size 3/8 in.npt (f)
Fluid Inlet Size 1/2 in.
Fluid Outlet Size 1/2 in.
Net Weight 6.8kg






Explosion Proof Stainless Steel Air Diaphragm Pump 1/2" Acid Chemical Dosing 0

Packing & Shipping:



Explosion Proof Stainless Steel Air Diaphragm Pump 1/2" Acid Chemical Dosing 1




Pneumatic Diaphragm Pump Introduction



RV pneumatic diaphragm pump can not only pump fluid liquids and day powders, but also some mediums that usually hard to flow. It possesses the advantages of self-priming pump, submerged pump, shielding pump, slurry pump, impurity pump and other transportation machines.





1. No need to pilot water, suction lift up to 7m, pump head up to 80m, outlet pressure ≥ 0.8 MPa.

2. Spacious flowing way with good through-pass performance, the largest size of particles allowed can be up to 9.4mm. While pumping slurry and impurity, the abrasion is very low.

3. The pump head and capacity can be adjusted via the pressure of air source (between 0.1~0.84 MPa).

4. Temperature range of working environment: 5~65℃

5. The pneumatic diaphragm pump has no rotating parts and shaft seals. The diaphragms separate the pumped medium from moving part and working medium absolutely, so that the pumped medium does not leak to outside. So there are no risks of environment pollution and personal injury while pumping poisonous, volatile or corrosive media.




FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of pneumatic diaphragm pump have?

A: pneumatic operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Pneumatic operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Pneumatic operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Pneumatic operated  diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Pneumatic operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How pneumatic diaphragm pump quality and service?

A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
