Product Details:
|
| Product Name: | Air Diaphragm Pump | Horese Power: | 8.4 Bar |
|---|---|---|---|
| Pressure: | Low Pressure | Ourlet Size: | 1"inch |
| Maximum Reciprocating Speed: | 276 Cpm | Certificateion: | ISO 9001 , CE , ATex |
| Valve Ball: | Santoprene | Diaphragm: | Santoprene |
| High Light: | dual diaphragm air pump,1 Inch double diaphragm air pump design,1 Inch Dual Double Diaphragm Air Pump |
||

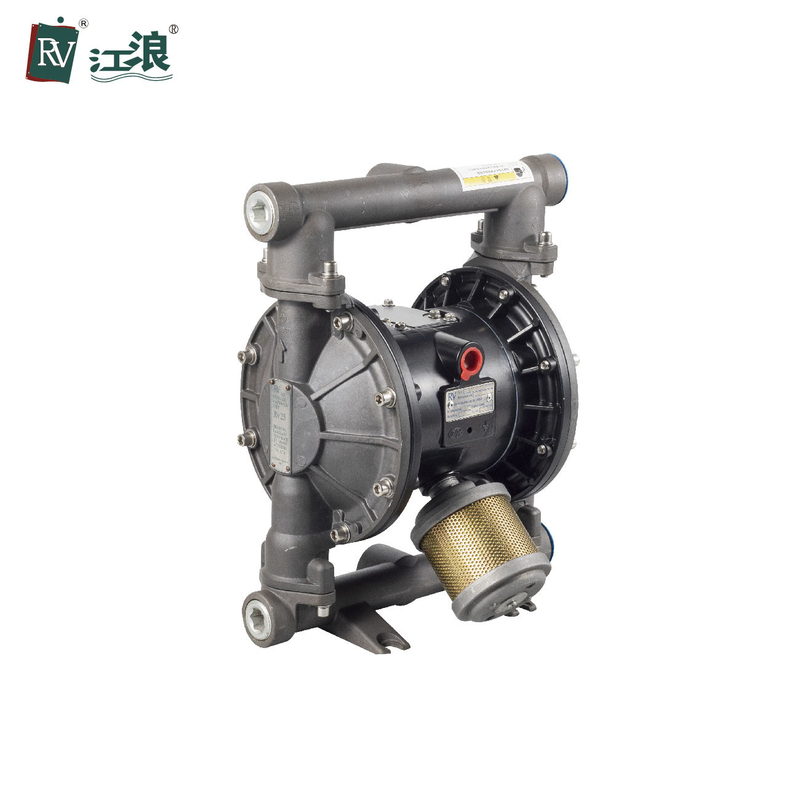

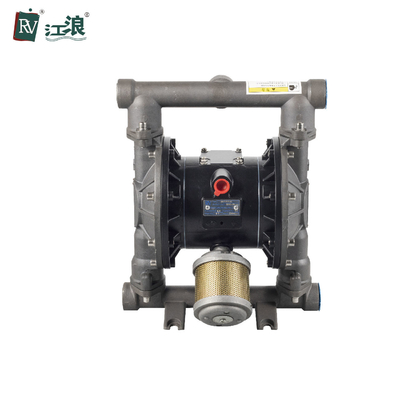

Air Driven Double Diaphragm Pump Water Treatment Industry
1.Iding capability,self suction,no comples control.
2.Bolt joint design provides even sealing pressure for optimal performance.
3.Diversity of material,no rotating parts,applicable to various erosive situatons.
4.Diaphragm,ball and ball seat adopt imported materials with longer service life.
5.Modular air valve for stall-free,low pulsation operation,providing smooth and rapid changeover.
6.The delivery lift and flow can pass the pneumatic valve open to realize the stepless adiustment.
MAXIMUM LIQUID TEMPERATURE FOR RUBBER PARTS
| Buna N | 180°F (82°C) |
| Santoprene | 180°F (82°C) |
| PTFE | 212°F (100°C) |
| Hytrel | 248°F (120°C) |
| 248°F (120°C) | |
| Max Air Consumption | 45scfm(22.5L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Net Weight |
Aluminum 8.2kg |
Air Driven Double Diaphragm Pump Application
Mud Treatment "Water" is by means of physical, chemical, biological, and removal of a number of production, Life of harmful substances do not need to process. Diaphragm pump also play an important role in environmental protection ,mud treatment industry protecting the diaphragm pump in the waste water treatment industry transport all kinds of waste water ,lime syrup,soft sediments, sewage and chemical waste water.
FAQ
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
