2 Inch Metal Diaphragm Pump Leak Detection Failure 8.4 Bar

2 Inch Metal Diaphragm Pump Leak Detection Failure 8.4 Bar
2 Inch Metal Diaphragm Pump Leak Detection Failure 8.4 Bar 2 Inch Metal Diaphragm Pump Leak Detection Failure 8.4 Bar

Large Image :  2 Inch Metal Diaphragm Pump Leak Detection Failure 8.4 Bar

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-DFP-73311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

2 Inch Metal Diaphragm Pump Leak Detection Failure 8.4 Bar

Description
Product Name: Air Operated Diaphragm Pump With Diaphragm Failure Detector Horese Power: 8.4 Bar
Type: Leak Detector Monitors Pump Accessories: Sensor
Compatibility: CE Compliant Control Box: Optional
Diaphragm: PTFE Backup Diaphragm: Santoprene
High Light:

2 Inch Metal Diaphragm Pump

,

Metal Diaphragm Pump 8.4 Bar

,

diaphragm pump failure detection

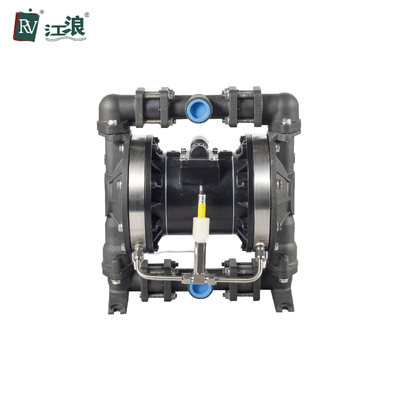

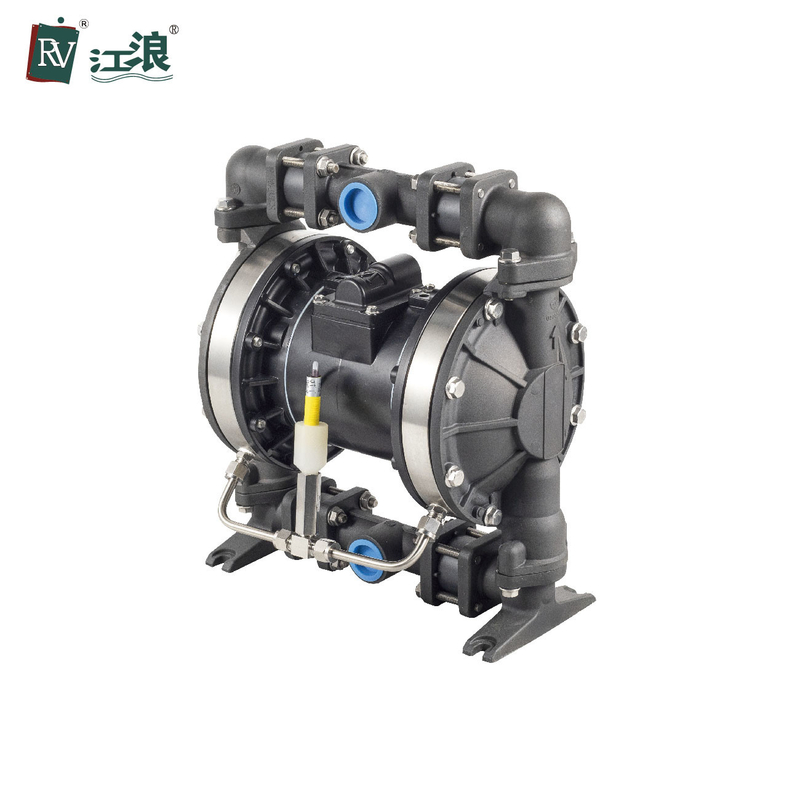

2" inch Metal Air Operated Diaphragm Pump With Leak Detection System



OVERVIEW OF AIR OPERATED DIAPHRAGM PUMPS

For traditional pump, when diaphragm broken, it’s hard to be found on time, air operated diaphragm pump usually continue working, fluid will leak into center block, it’ll damage inner spare parts, at last the whole air operated diaphragm pump will be damaged.

RV series air operated diaphragm pump with diaphragm failure protection, with double diaphragms, with alarm devices & detector devices, can alarm as soon as rubber diaphragm broken, air operated diaphragm pump will stop working automatically as once.

It’s great safety and protection for air operated diaphragm pump. It also reduce maintains cost, end-user just need to replace broken diaphragm, rather than replace a whole pump.





Place of Origin Shanghai, China
Power Source Pneumtic
Structure Air Operated Diaphragm Pump
Power Driven Compressed air
Max Permitted Grain 0.2 in(5mm)
Certification CE, ISO: 9001
Air Inlet Size 1/2 in.npt(f)
Wetted End Aluminum
Fluid Inlet Size 1 in.
Fluid Outlet Size 1 in.


2 Inch Metal Diaphragm Pump Leak Detection Failure 8.4 Bar 0

Main Applications:

1. Chemical industry: Acids, alkalis, solvents, suspended solids, decentralized system.

2. Petrochemical industry: crude oil, heavy oil, grease, mud, sludge, etc.
3. Coatings Industry: resins, solvents, coloring agent, paint, etc.
4. Cosmetic industry: detergent, shampoo, lotion, emulsion, camphor ice, surface active agents.
5. Ceramics: mud, slurry pottery, lime milk, clay slurry.
6. Mining industry: coal slurry, magma, mud, mortar and explosives, lubricant, etc.

7. Water treatment: lime milk, soft sediments, sewage, chemicals, waste water.
8. The food industry: liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood.

9. Beverage industry: yeast, sugar syrup, concentrations, gas-liquid mixture, wine, fruit juice, corn pulp, etc.
