Product Details:
|
| Type: | Air Operated Diaphragm Pump | Place Of Origin: | Shanghai, China |
|---|---|---|---|
| Pressure: | 7 Bar, Low Pressure | Power: | Pneumatic |
| OEM: | Applicable | Displacement Per Cycle (Liters): | 0.15 |
| Material Of Diaphragm: | PTFE Santoprene | Weight: | 3.0kgs |
| High Light: | river wave chemical diaphragm pump,chemical diaphragm pump 8 bar,Chemical air operated diaphragm pump |
||

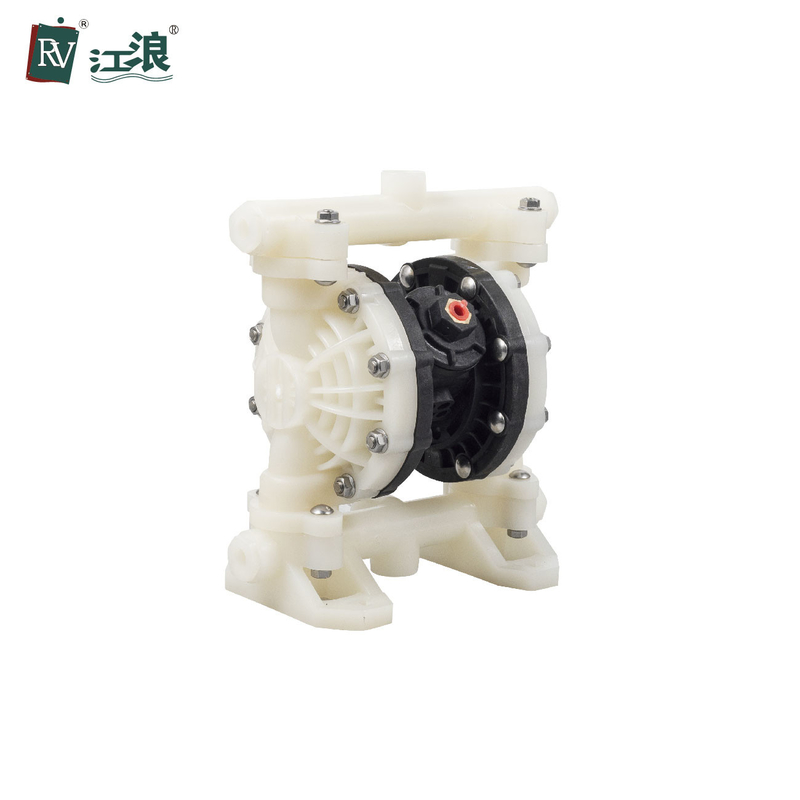

River Wave Chemical Diaphragm Pump 316 8 Bar 15 Gallon
Typical Applications
• Machine lubrication servicing
• Drum evacuation
• Plating and dip tanks
• Water treatment
| Max Discharge Pressure | 100 psi ( 0.7Mpa, 7bar ) |
| Max Capacity | 15 gpm ( 57lpm ) |
| Max Reciprocating Speed | 400 cpm |
| Power | Pnuematic |
| Max Permitted Grain | 3/32 in ( 2.5mm ) |
| Advantages: | Explosion-proof |
| Air Inlet Size | 1/4 in.npt (f) |
| Air Outlet Size | 3/8 in.npt (f) |
| Fluid Inlet Size | 1/2 in. |
| Fluid Outlet Size | 1/2 in. |
| Net Weight | 3.0kg |
How Do Air Operated Diaphragm Pump Work
As the name implies, air operated diaphragm pump (AODD) use compressed air to operate, rather than an electrical motor. This unique operating characteristic allows them to be used in situations where an electrically powered pump would not be advisable (e.g., when pumping flammable liquids). By their very nature, though, these types of air operated diaphragm pumps must be installed and maintained properly to function as designed.
When these diaphragms are pushed away from (or toward) the center section, or air motor, a vacuum is created in the pump’s body, and fluid flows into one of the liquid chambers through an inlet port. When the diaphragms are subsequently pushed in the opposite direction back to their original positions, again via compressed air, the fluid is expelled from the liquid chamber via an outlet port.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of air operated diaphragm pump have?
A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.
Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
Air operated diaphragm pump can suck various toxin and flammable or volatility liquid etc.
Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How air diaphragm pump quality and service?
A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
