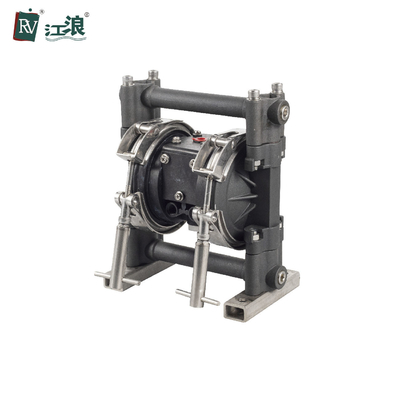

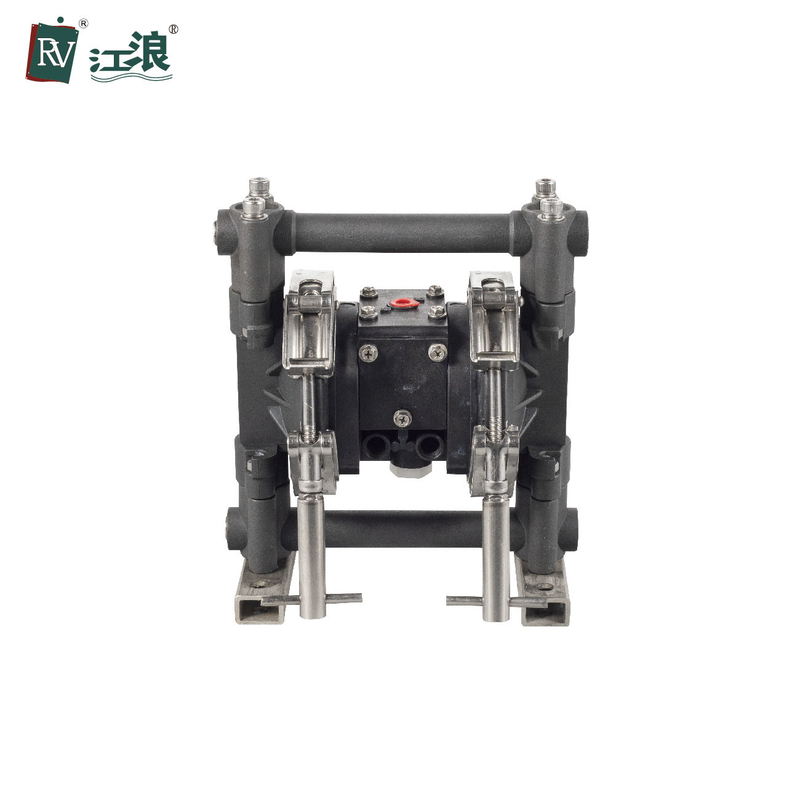

3/8" Ink Diaphragm Pump Air Operated

3/8" Ink Diaphragm Pump Air Operated
3/8" Ink Diaphragm Pump Air Operated 3/8" Ink Diaphragm Pump Air Operated

Large Image :  3/8" Ink Diaphragm Pump Air Operated

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-33311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3/8" Ink Diaphragm Pump Air Operated

Air Inlet: 1/4" Name: Air Diaphragm Pump
Inlet Diameter: 3/8" Outlet Diameter: 3/8"
Max. Gallon Per Min (GPM) (See Pump Curve For Your Duty Point Estimates): 9 Maxinum Total Head: 230 Feet @ 100 PSI PRESSURE Inlet / Outlet
Maximum Air Pressure (PSI): 120 Model: RVP-33311-T
Approvement: CE ATEX ISO9001
High Light:

3/8" ink diaphragm pump


ink diaphragm pump air operated


3/8 diaphragm pump

Customized Compressed Air Diaphragm Pump, Ink Diaphragm Pump


General Description


RV series air diaphragm pump are distinguished obviously by the structure of the air-distributing valve from other air diaphragm pumps. This air-distributing valve replaces the traditional O-ring and cylindrical structure with a three-direction pilot-operated structure, eliminating consequently the dead center of valve and shutdown phenomenon of pumps. It provides an accurate and reliable reversing signal to avoid downtime and realize faster reversing, so that air diaphragm pump have greater flow and the transportation is more stable, with lower pulse.


Air Motor Kit 1010 O-ring Buna-N 2
1011 O-ring Tailgate Hydrogenated Buna-N 2
1012 Commutation Pin O-ring Buna-N 2
1013 Commutation Pin   2
1014 O-ring POM 2
1015 Air valve cover gasket POM 1
1016 Air-guide switch 1
1018 Air-guide valve board gasket Buna-N 1
1019 O-ring Buna-N 1
1020 V-ring POM 2
1021 Piston POM 1



Main Applications:

1. Paper industry: adhesives, resins, paints, inks, paints, hydrogen peroxide, etc.

2. Electronics industry: solvent, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acid, corrosive acid, polishing liquid.
3. Textile solution: chemical dyes, resins, rubber, etc.
4. Construction industry: grout, ceramic tile adhesives, rock slurry, ceiling finish, etc.
5. Automotive industry: polishing emulsion, oil, coolant, automotive priming, oil emulsion paint, varnish, varnish additives, degreasing fluid, paint, etc.
6. Furniture industry: adhesives, varnishes, decentralized system, solvents, color agent, sapwood glue, epoxy resins, starch binder.
7. Metallurgy, casting and dyeing industry: metal slurry, hydroxides and carbide slurry, dust cleaning slurry.


3/8" Ink Diaphragm Pump Air Operated 0


1. Q: What is MOQ?
A: 1pc for regular air diaphragm pump. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment for air diaphragm pump?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time for air diaphragm pump?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case for each air diaphragm pump.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty for air diaphragm pump?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the air diaphragm pump can be made of different standard?
A: Of course yes. We could air diaphragm pump product according to custom need.
