Product Details:
|
| Materal: | Aluminum Alloy | Certification: | CE ISO |
|---|---|---|---|
| Place Of Origin: | Shanghai | Liquid: | Solvent, Paint And Coating |
| Application: | Painting And Coating Industry | Carton Size: | 520×350×650mm |
| Size: | 2 Inch | Noise Level: | Lower Than 75 Db |
| Theory: | Air Diaphragm Pump | ||
| High Light: | double diaphragm oil pump,2 air operated diaphragm pump,air diaphragm transfer pump |
||

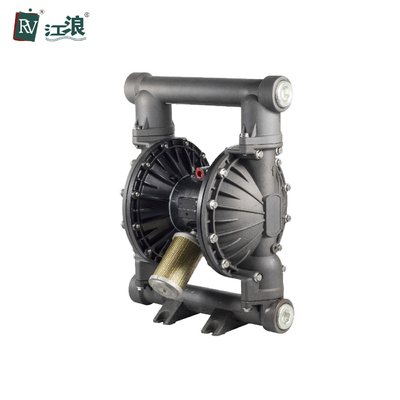

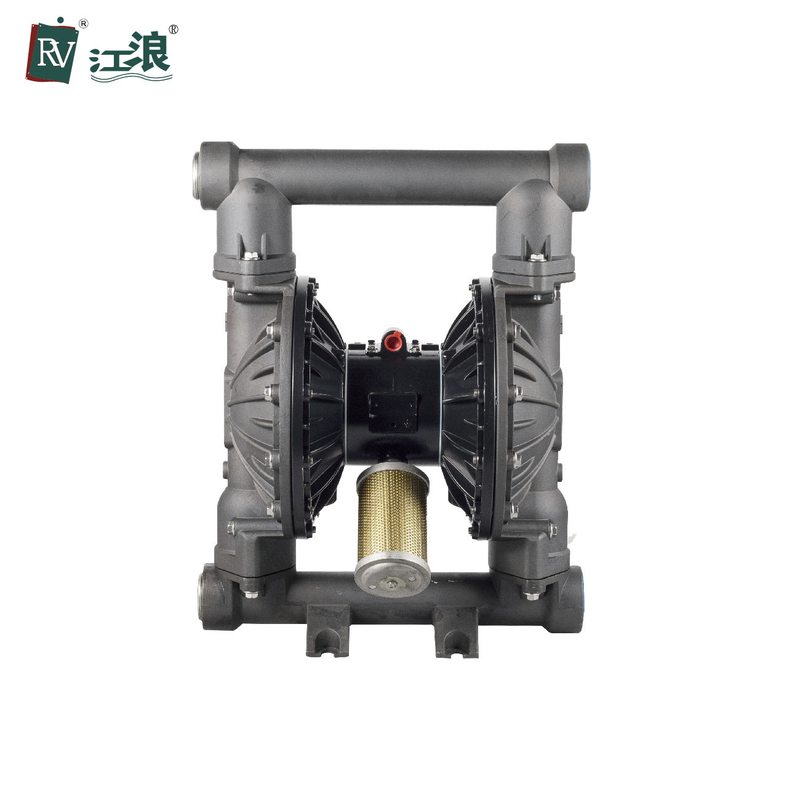

2" Air double diaphragm oil transfer pump Transfer General Fluid 150gpm
INTRODUCTION
RV air operated double diaphragm pumps (air diaphragm pump) are designed for general fluid transfer. Our air diaphragm pumps reliably transfer a wide variety of fluids, from clean, light viscosity to medium viscosity. They can pump large particles without damage.
Metal air diaphragm pump casings can easily handle corrosive and abrasive fluids. Most air diaphragm pump are ATEX certifiede (CE Ex11 2GD X).
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 150 gpm (570 lpm) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.24 in (6mm) |
| Max Air Consumption | 140 scfm ( 70L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in. |
| Net Weight | Aluminum 29 kg |
| Type of Diaphragm | IMAGE | Typical Usage |
| PTFE | |
Excellent choice when pumping highly aggressive fluids such as aromatic or chlorinated hydrocarbons, acids, caustics, ketones and acetates. Temperature range +4°C to +104 C (+40 F to +220F) |
Packing & Shipping:
Our service
Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Air diaphragm pump (AODD) pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, air diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic air diaphragm pumps, electric diaphragm pumps for a wide range customers.
Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample air diaphragm pump preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm pump order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the air diaphragm pumps?
A: Yes, we offer 1 years warranty to our air diaphragm pumps, except easy wear spare parts.
