Product Details:
|
| Product Name: | Air Powdered Double Diaphragm Pump | Max. Discharge: | 570 Liters / Minute |
|---|---|---|---|
| Size, Material: | 2 ”inch , Ductile Iron | Application: | Underground Water |
| Type: | Diaphragm Air Pump | Suction Height (Dry Suction): | 5 M |
| Max. Reciprocating Speed: | 145 Cpm | Wetted End: | Ductile Iron |
| Warranty: | 12 Month | ||
| High Light: | diaphragm air operated positive displacement pump,positive displacement double diaphragm pump 2 inch,2 inch Ductile cast iron diaphragm pump |
||

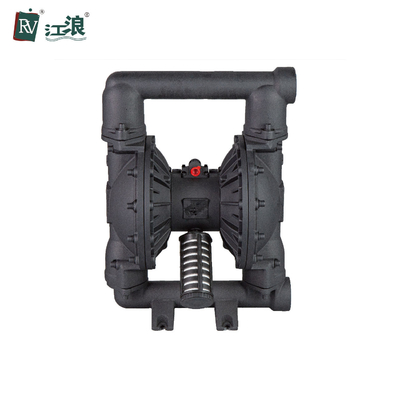

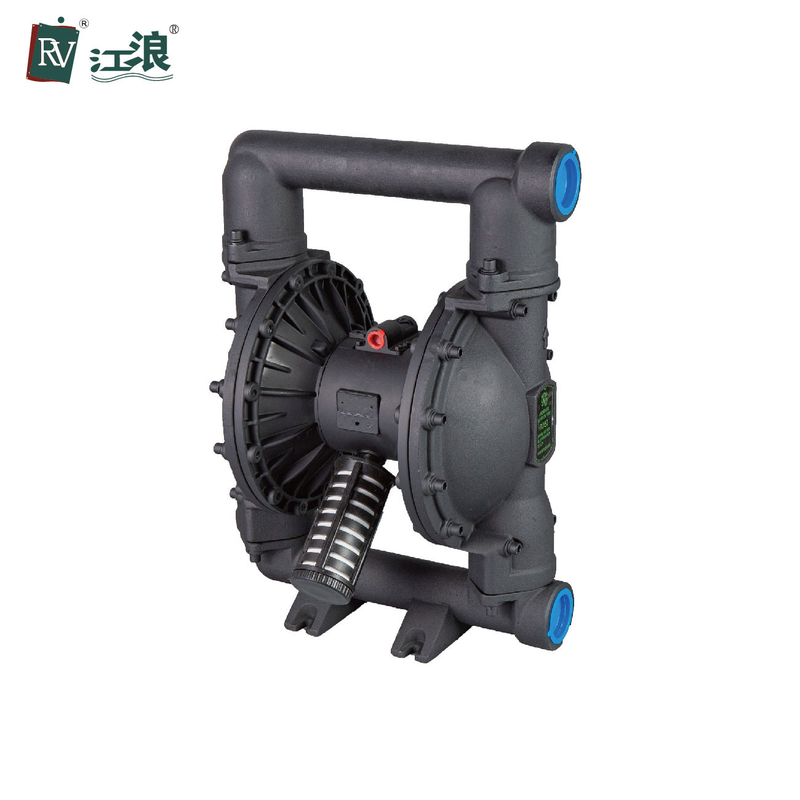

positive displacement double diaphragm pump 2 inch Ductile cast iron diaphragm pump
HIGH LEVEL TECHNICAL SUPPORT & AIR DIAPHRAGM PUMP SERVICING
For the toughest outdoor and underground duty, Ductile iron air diaphragm pump are ideal. All air diaphragm pump shown here have Mining ATEX explosion proof ratings. Application include removal of underground water / drift water from mine sites, transfer of muck, slime and slurry, oil transfer and general utility use.
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 150 gpm (570 lpm) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.24 in (6mm) |
| Max Air Consumption | 140 scfm ( 70L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in. |
| Net Weight | Ductile Iron 58 kg |
| Quantity (pieces) | 1-10 | 11-50 | 51-100 |
＞100
|
| Est. Time (days) | 3 | 5 | 10 |
To be negotiated
|
Packing & Shipping:
Our service
Air diaphragm pump use a flexible diaphragm mounted on either side of the air diaphragm pump’s central chamber to air diaphragm pump fluids into and out of the air diaphragm pump’s body.
Company Introduction:
Jianglang's Cast Iron air diaphragm pump are constructed out of a special tough spheroidal graphite Iron, to withstand the toughest duty outdoors. They are primarily designed for use in underground mining atmospheres. All air diaphragm pumps have a ATEX approval. They employ a special version of the air valve system, so as to be compatible with mining regulations. All air diaphragm pump options are available, including the popular BunaN and Hytrel versions.
Skid mounting, inlet strainer bases and frames are all available. Applications include removal of underground water / drift water from mine sites, transfer of muck, slime and slurry and oil transfer and utility use.
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time for air diaphragm pump?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm pump order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6 :
1.The air diaphragm pump can suck the peanut,pickles,tomato slurry,red sausage,chocolate,hops and syrup etc.
2.The air diaphragm pump can suck the paint,pigment,glue and adhesive etc.
3.The air diaphragm pump can suck various glazed slurries of tile,porcelain,brick and chinaware etc.
4.The air diaphragm pump can suck various toxin and flammable or volatility liquid etc.
5.The air diaphragm pump can suck various strong acid,alkali and corrosive liquid etc.
