Product Details:
|
Product Name: | Air Diaphragm Pump | Liquid Port Size: | 1 Inch |
---|---|---|---|
Liquid Connection Types:: | FNPT, FBSP | Standard Suction Port:: | Side |
Standard Discharge Port:: | Side | Air Inlet Connection Size: | 1/2 In. FNPT |
Air Exhaust Connection Size:: | 3/4 In. FNPT | Valve Ball: | PTFE |
Highlight: | PVDF diaphragm pump air consumption 150 lpm,kynar diaphragm pump,pvdf diaphragm pump |

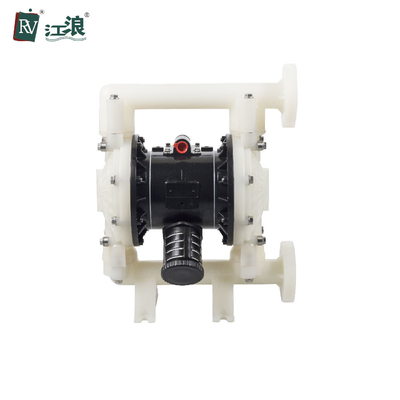

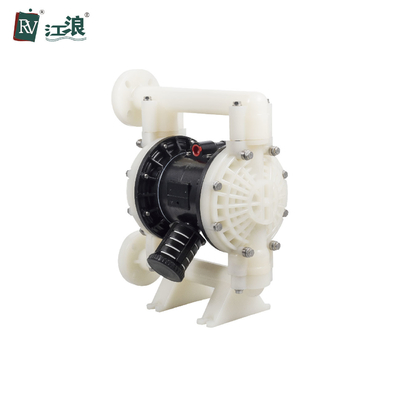

40 GPM Capacity DN25 Fluid Port Kynar PVDF Air Diaphragm Pump
1" FLUID PORT
RV25 Series air diaphragm pump provide a maximum flow rate of 40 gallons per minute. Pumps are available in aluminum, stainless steel (304/ 316), Kynar (PVDF), groundable acetal, and polypropylene construction.
Technicial Parameter |
Unit | Date |
Maximum air inlet pressure | Mpa | 0.84 |
Maximum flow rate | liter per minute | 150 lpm |
Maximum lift | Meter | 70 m |
Maximum outlet pressure | Mpa | 0.84 |
Maximum particle size | mm | 4 |
weight | kg | 15.7 |
Noise level | db | < 70 |
Maximum Applied Temperature Limits (Diaphragm/ Ball/ Seal Material)
Acetal ....................................................................40° - 150 ° F (4.4 - 65.5 °C)
Santoprene ........................................................... -40° - 225 ° F (-40 ° - 107.2 °C)
Nitrile ................................................................... 10° -180 ° F ( -12° -82 °C)
.................................................................... -40° -350 ° F ( -40° - 176.6 °C)
Hytrel................................................................... -20° -150° F (-12°- 93 °C)
Kynar...................................................................10° - 200 °F (-28.9° - 65.5 °C)
Polypropylene .....................................................32° - 175 ° F (0-79.4 °C)
FAQ
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our air diaphragm pump.
