Product Details:
|
| Product Name: | Air Diaphragm Pump | Inlet/ Outlet: | 1 " |
|---|---|---|---|
| Flow Rate: | 40GPM / 150LPM | Max. Working Pressure: | 120psi ( 0.84 Mpa , 8.4bar) |
| Maximum Permitted Grain: | 0.16in (4mm) | Certificateion: | ISO 9001 , CE , ATex |
| Elastomer: | Buna N | Seat O Ring: | PTFE |
| High Light: | 1" air diaphragm pump for bleach,1" air diaphragm pump 151lpm,1 inch air operated diaphragm pump |
||

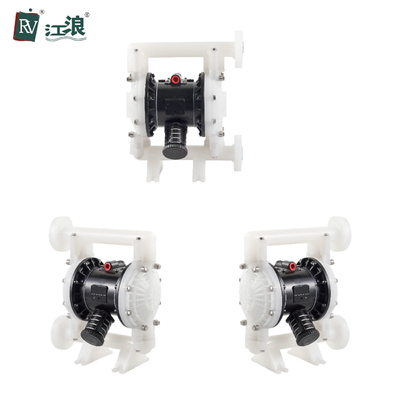

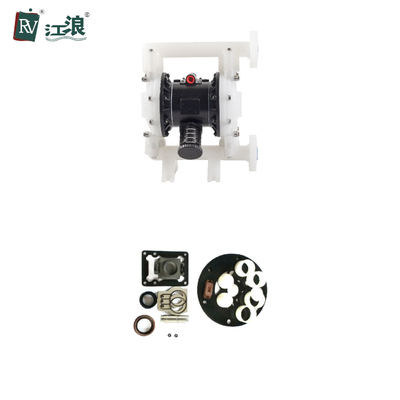

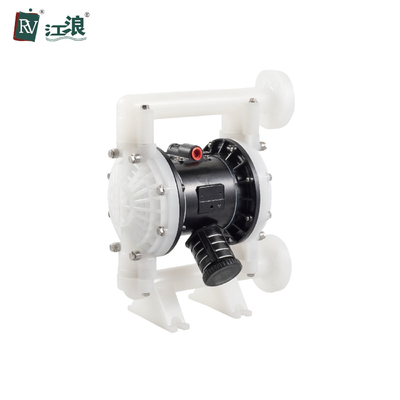

1" Inlet / Outlet Air Diaphragm Pump With Nitrile Elastomer PTFE Ball Valve
Features:
• 1 in (25.4 mm) ANSI end-porting
• High flow – 40 gpm (151 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Epoxy-coated center section
• External controller for optional remote operation
• PP center section for corrosive applications
Typical Applications:
• Drum fluid transfer
• Unloading fluids
• Transferring high temperature acids
• Chemical evacuation
• Tank and sump drainage
• Circulating plating chemical tank
Air Diaphragm Pump Advantages:
- Never deadstop (three-way pilot type air-distributing valve)
- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts imported from USA
- Easy maintenance
- Lube free
Air Diaphragm Pump Information:
- Name: Air Diaphragm Pump
- Model Type: RVP-F2A77-F
- Wetted Parts: Plastic
- Valve Seat: Plastic
- Valve Ball: Buna N
- Diaphragm / Membrane: Buna N
- Connection: Flange or threaded
| Max Working Pressure | 120 psi(0.8Mpa, 8.4bar) |
| Max Flow Rate | 40 gpm(151lpm) |
| Max Reciprocating Speed | 276 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.16 in(4mm) |
| Max Air Consumption | 45scfm(22.5L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Net Weight | PP pump 10kg |
Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
Company Introduction:
Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.
Jianglang has established long term business relationship with famous enterprise such as BASF,Bayer,SAMSUNG ect. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".
FAQ
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our air diaphragm pump.
