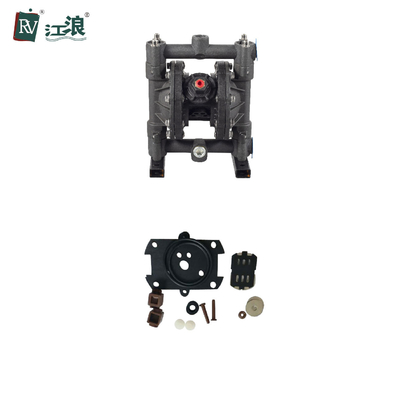

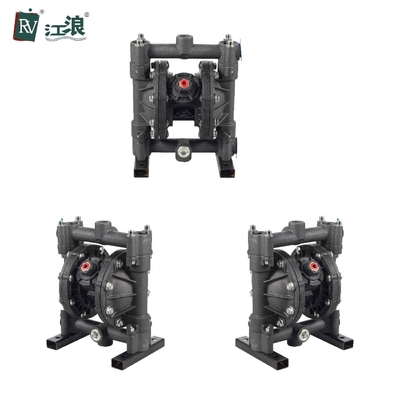

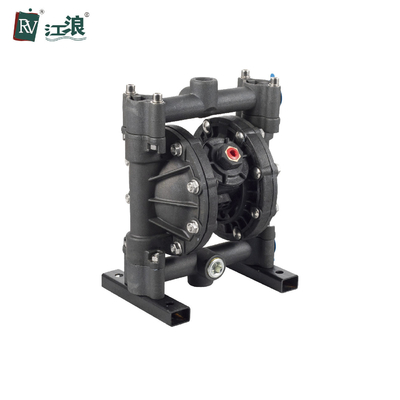

Product Details:
|
| Product Name: | Air Diaphragm Pump | Inlet/ Outlet: | 3/ 4" |
|---|---|---|---|
| Max. Flow Rate: | 15GPM / 57LPM | Max. Discharge Pressure: | 100psi ( 0.7 Mpa , 7bar) |
| Lift: | 230 FT / 70meter | Certificateion: | ISO 9001 , CE , ATex |
| Material Of Diaphragm: | PTFE Santoprene | Weight: | 4.6kg |
| High Light: | 3/4 air operated diaphragm pump 7 bar,3/4 air operated diaphragm pump 400cpm,15 gpm diaphragm pump 7 bar |
||
CE Certification Air Diaphragm Pump For Petrochemical industry Industry
Pneumatic Diaphragm Pump Advantages:
Air Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free
| Max Working Pressure | 100 psi(0.7Mpa, 7bar) |
| Max Flow Rate | 15 gpm(57lpm) |
| Max Reciprocating Speed | 400 cpm |
| Max Suction Height (Dry Sucking) | 4.5m |
| Max Permitted Grain | 3/32 in(2.5mm) |
| Max Air Consumption | 20scfm(10L/s) |
| Air Inlet Size | 1/4 in.npt(f) |
| Air Outlet Size | 3/8 in.npt(f) |
| Fluid Inlet Size | 3/4 in. |
| Fluid Outlet Size | 3/4 in. |
| Net Weight | PP pump 2.8kg; PVDF pump 3.7kg |
Air Diaphragm Pump HS CODE : 8413501090
Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
Company Introduction:
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

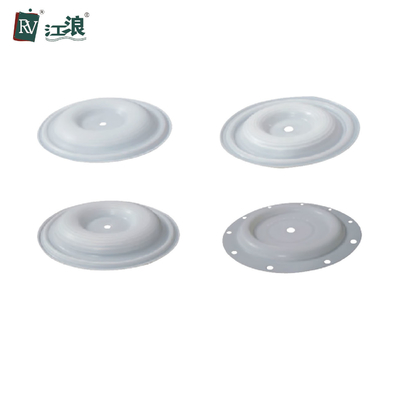

Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of products have?
A: The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
The pump can suck the paint, pigment, glue and adhesive etc.
The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
The pump can suck various toxin and flammable or volatility liquid etc.
The pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How product quality and service?
A: Our pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
