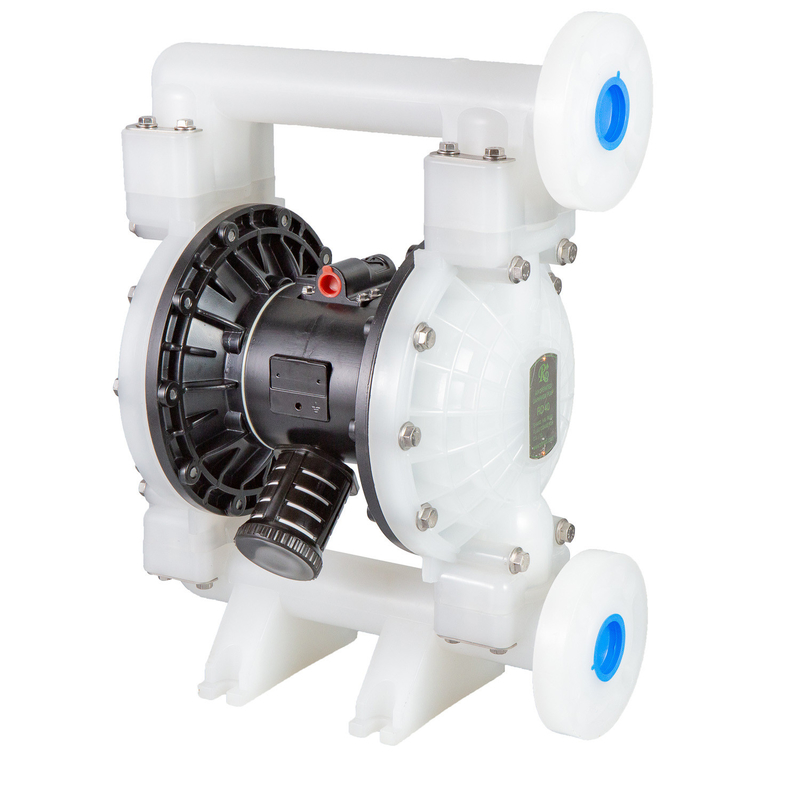

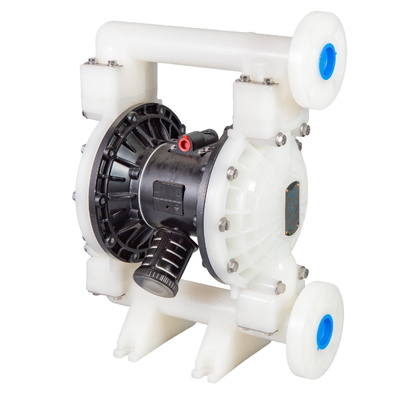

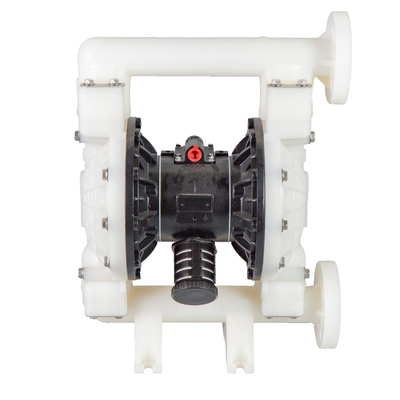

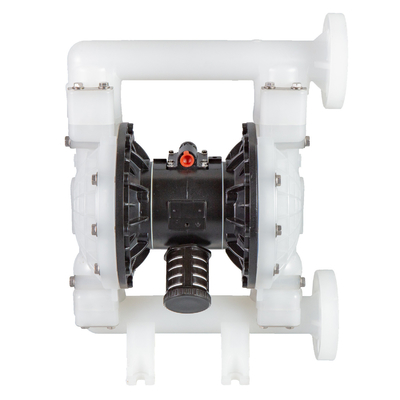

PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation

PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation
PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation

Large Image :  PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-B2A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation

Description
Materal: PP Brand: RV
Color: White Flow Rate: 446L/M
Weight: 18kgs Carton Size: 49*28*66cm
Size: 1 1/2 Inch Model: RVP-B2A11-F
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

PP plastic air diaphragm pump 1 1/2 inch

,

plastic air diaphragm pump Double 1 1/2 inch

,

1 1/2 inch aodd operation

PP plastic air diaphragm pump Double 1 1/2 inch aodd operation



Diaphragm Pump Advantages:


- Never deadstop (three-way pilot type air-distributing valve)
- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts imported from USA
- Easy maintenance
- Lube free


Diaphragm Pump Information:


- Name: Air Operated Diaphragm Pump
- Model Type:
RVP-B2A11-F
- Wetted Parts: PP
- Seat: PVDF
- Ball: PTFE
- Diaphragm: PTFE
- Back-up: Santoprene

-Connection: Flange or threaded

Diaphragm Pump HS CODE : 8413501090

Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free

PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation 0PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation 1

Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 118 gpm(446lpm)
Max Reciprocating Speed 200 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.2 in(5mm)
Max Air Consumption 80scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 1 1/2 in.
Fluid Outlet Size 1 1/2 in.
Net Weight PP pump 16kg; PVDF pump20kg



Packing & Shipping:

PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation 2PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation 3
Our service


* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:



Shanghai Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.



Shanghai Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.

Shanghai Jianglang has established long term business relationship with famous enterprise such as BASF,Bayer,SAMSUNG ect. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.

We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"

Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".

PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation 4PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation 5PP Plastic Air Diaphragm Pump Double 1 1/2 Inch Aodd Operation 6

FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
