2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

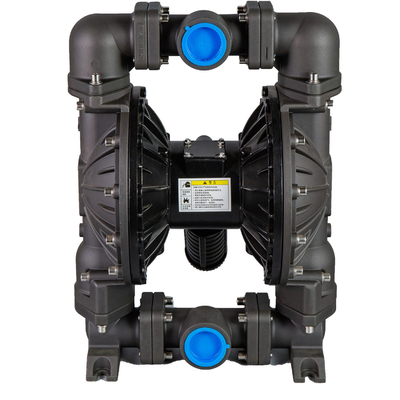

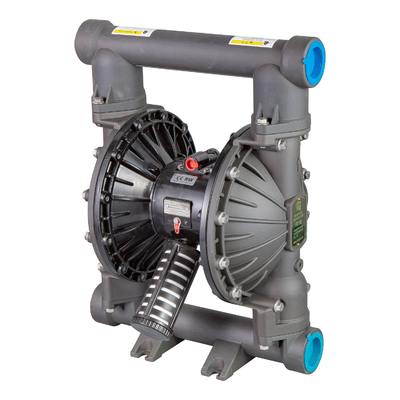

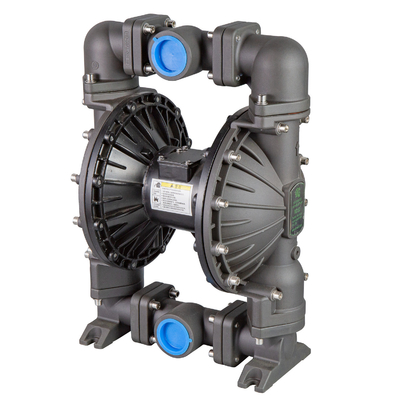

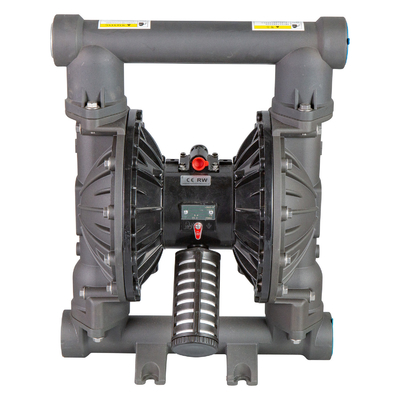

2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum

2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum
2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum 2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum 2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum 2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum

Large Image :  2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-F3411-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum

Description
Materal: Aluminum Brand: RV
Color: Black Flow Rate: 568L/M
Weight: 32kgs Carton Size: 52*35*65cm
Size: 2 Inch Model: RVA-F3411-T
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

AODD air powered diaphragm pump for paint

,

2 inch AODD air powered diaphragm pump

,

aod pump

2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum

Diaphragm Pump Information:
- Name: Air Operated Diaphragm Pump AODD Pump
- Model Type: RVA-F3411-T
- Wetted Parts: Aluminum
- Seat: SS304
- Ball: PTFE
- Diaphragm: PTFE
- Back-up: Santoprene

-Connection: Threaded

Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 150 gpm(568 lpm)
Max Reciprocating Speed 145 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 6.3mm
Max Air Consumption 140 scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 1/2 in.npt(f)
Fluid Inlet Size 2 in.npt(f)
Fluid Outlet Size 2 in.npt(f)
Weight AL pump 29kg; SST pump 47kg


Diaphragm Pump HS CODE : 8413501090
Diaphragm Pump Packing Status:

- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free

2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum 02 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum 1


Packing & Shipping:
2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum 22 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum 3

Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
Company Introduction:


Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are AODD pump, diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The AODD pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.

Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.
Jianglang has established long term business relationship with famous enterprise such as BASF,Bayer,SAMSUNG ect. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".

2 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum 42 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum 52 Inch AODD Air Powered Diaphragm Pump For Paint Transfer High Flow Aluminum 6
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.


2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.


3. Q: What is the delivery time?
A: Depend on the quantity.


4. Q: What about package?
A: Cartons with foam inside & wooden case.


5. Q: How are the products delivered to us?
A: By International express.


6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)


7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
