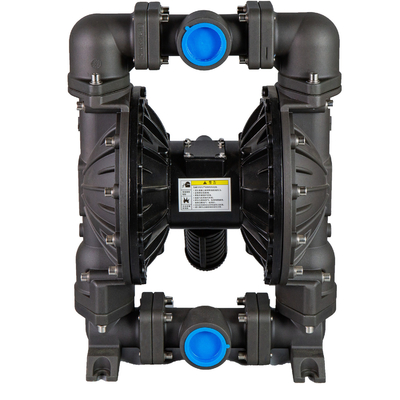

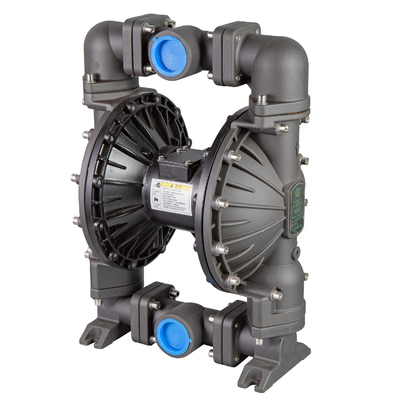

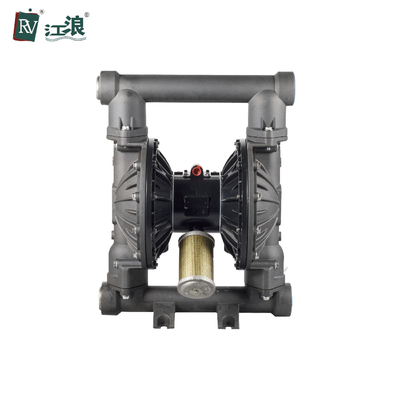

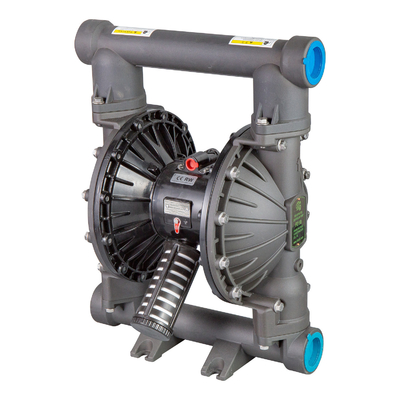

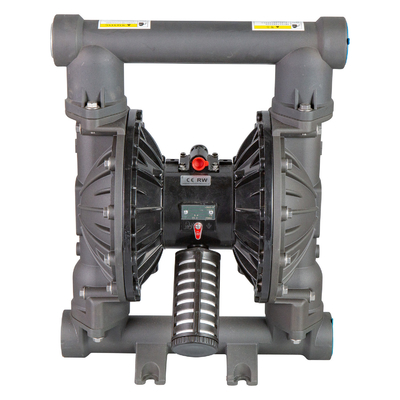

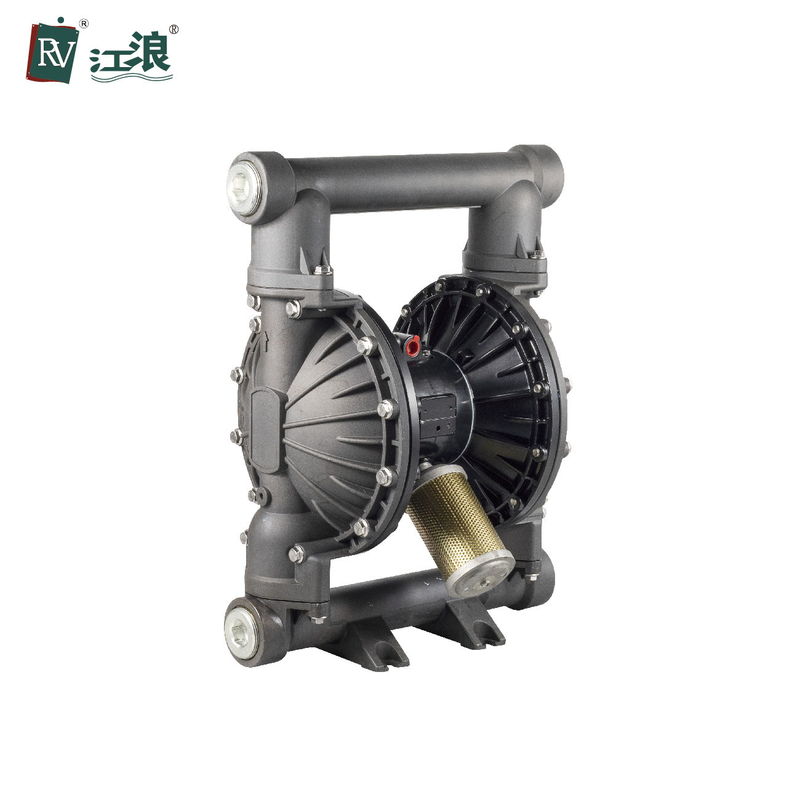

Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum

Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum
Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum

Large Image :  Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-F3411-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum

Description
Materal: Aluminum Brand: RV
Color: Black Flow Rate: 568L/M
Weight: 32kgs Carton Size: 52*35*65cm
Size: 2 Inch Model: RVA-F3411-T
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

Pneumatic Air Double Diaphragm Pump

,

Air Double Diaphragm Pump 2 Inch

,

double head diaphragm pump

Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum



Diaphragm Pump Advantages:


- Never deadstop (three-way pilot type air-distributing valve)
- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts imported from USA
- Easy maintenance
- Lube free


Diaphragm Pump Information:


- Name: Air Operated Diaphragm Pump
- Model Type: RVA-F3411-T
- Wetted Parts: Aluminum
- Seat: SS304
- Ball: PTFE
- Diaphragm: PTFE
- Back-up: Santoprene

-Connection: Threaded

Diaphragm Pump HS CODE : 8413501090

Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free

Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum 0Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum 1

Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 150 gpm(568 lpm)
Max Reciprocating Speed 145 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 6.3mm
Max Air Consumption 140 scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 1/2 in.npt(f)
Fluid Inlet Size 2 in.npt(f)
Fluid Outlet Size 2 in.npt(f)
Weight AL pump 29kg; SST pump 47kg

Packing & Shipping:

Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum 2Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum 3
Our service


* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service


Company Introduction:



Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.


We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"




Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum 4Pneumatic Air Double Diaphragm Pump 2 Inch Oil Aluminum 5

FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
