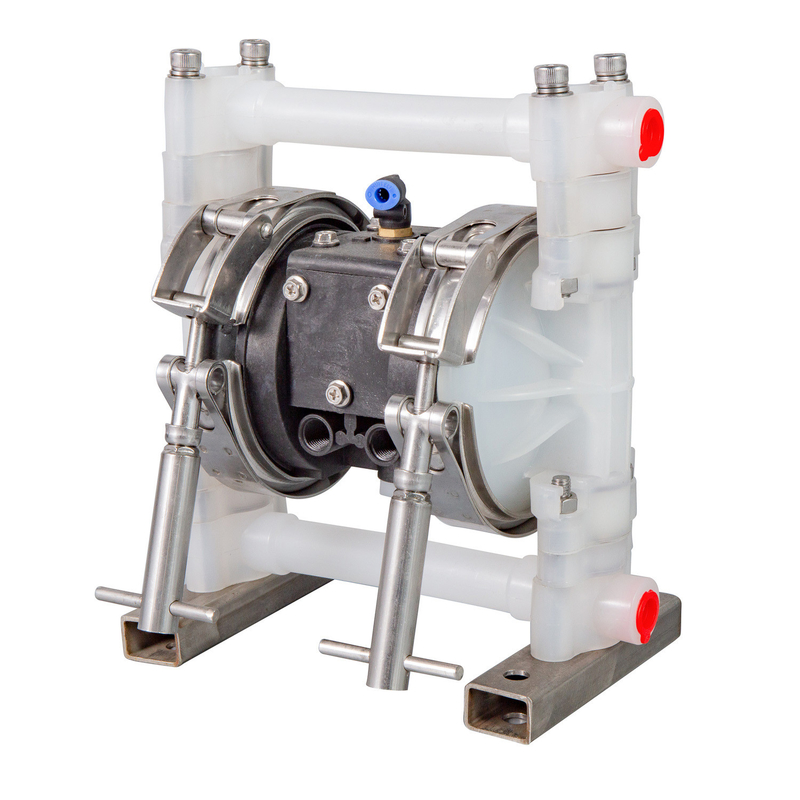

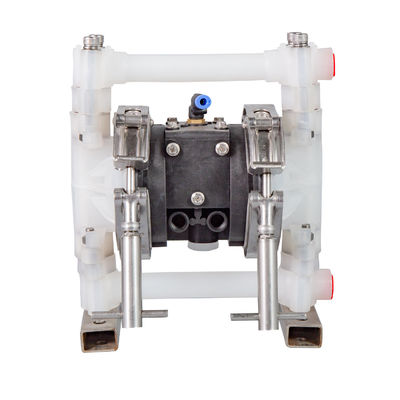

3/8" Dual Double Air Diaphragm Pump Pneumatic PP

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

3/8" Dual Double Air Diaphragm Pump Pneumatic PP

3/8" Dual Double Air Diaphragm Pump Pneumatic PP
3/8" Dual Double Air Diaphragm Pump Pneumatic PP 3/8" Dual Double Air Diaphragm Pump Pneumatic PP

Large Image :  3/8" Dual Double Air Diaphragm Pump Pneumatic PP

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-32911-T(S)
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3/8" Dual Double Air Diaphragm Pump Pneumatic PP

Description
Materal: PP Brand: RV
Color: White Flow Rate: 38L/M
Weight: 3.1kgs Carton Size: 25*20*36cm
Size: 3/8 Inch Model: RVP-32911-T(S)
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

Dual Double Air Diaphragm Pump 3/8"

,

Air Diaphragm Pump Pneumatic 3/8"

,

3/8 double diaphragm pump

3/8" dual double air diaphragm pump Pneumatic PP



Diaphragm Pump Advantages:


- Never deadstop (three-way pilot type air-distributing valve)
- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts imported from USA
- Easy maintenance
- Lube free


Diaphragm Pump Information:


- Name: Air Operated Diaphragm Pump
- Model Type: RVP-32911-T(S)

- Wetted Parts: Polypropylene
- Seat: Polypropylene
- Ball: PTFE
- Diaphragm: PTFE
- Back-up: Santoprene

-Connection:Threaded

Diaphragm Pump HS CODE : 8413501090

Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free

3/8" Dual Double Air Diaphragm Pump Pneumatic PP 0

3/8" Dual Double Air Diaphragm Pump Pneumatic PP 1

Type RD10
Inlet size 3/8"
Outlet size 3/8"
Air inlet size 1/4"
Suction lift (dry) 3m
Max. working pressure 7bar ; 0.7MPa
Max. flow rate 26.5 l/min(1.56m³/h)
Max. delivery lift 70m
Max. grain diameter 1.6mm
Weight PP: 3kgs
PVDF: 4kgs
Acetal: 4kgs
Available body material PP. Acetal. PVDF

Packing & Shipping:

3/8" Dual Double Air Diaphragm Pump Pneumatic PP 23/8" Dual Double Air Diaphragm Pump Pneumatic PP 3
Our service


* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:



Shanghai Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.



Shanghai Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.

Shanghai Jianglang has established long term business relationship with famous enterprise such as BASF,Bayer,SAMSUNG ect. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.

We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"

Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".

3/8" Dual Double Air Diaphragm Pump Pneumatic PP 43/8" Dual Double Air Diaphragm Pump Pneumatic PP 53/8" Dual Double Air Diaphragm Pump Pneumatic PP 6

FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
