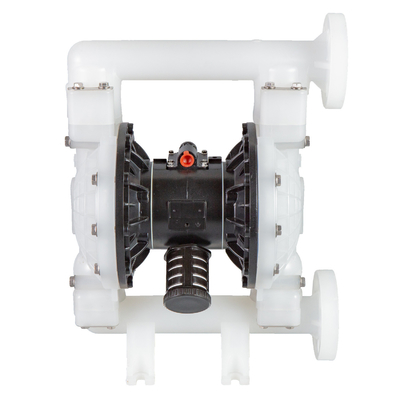

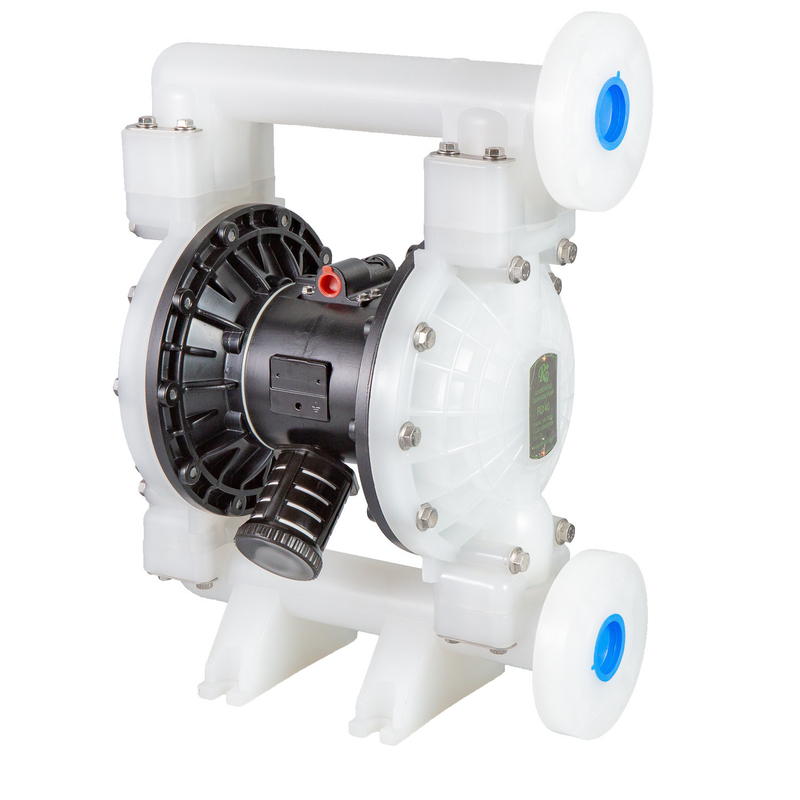

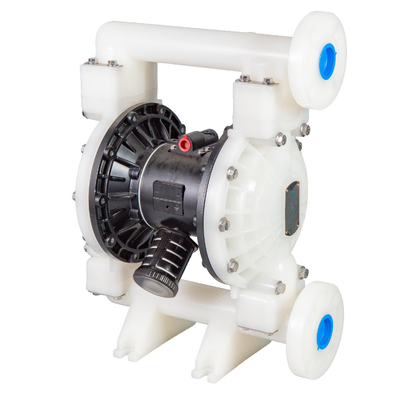

Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic

Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic
Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic

Large Image :  Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-B5A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic

Description
Materal: PVDF Brand: RV
Color: White Flow Rate: 340 L/M
Weight: 18kgs Carton Size: 49*28*66cm
Size: 1 1/2 Inch Model: RVA-B5A11-F
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

polypropylene Plastic Diaphragm Pump 70L/S

,

Plastic Diaphragm Pumps 70L/S

,

Plastic pneumatic diaphragm pump 70L/S

Polypropylene Plastic Diaphragm Pump 70L/s 1 1/2 Inch Fluid Handling Pneumatic



Plastic Diaphragm Pump Advantages:


- Never deadstop (three-way pilot type air-distributing valve)
- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts in superior quality
- Easy maintenance
- Lube free


Plastic Diaphragm Pump Information:


- Name: Air Operated Diaphragm Pump
- Model Type: RVA-B5A11-F
- Wetted Parts: PVDF
- Seat: PVDF
- Ball: PTFE
- Diaphragm: PTFE
- Back-up: Santoprene

-Connection: Flange or threaded

Diaphragm Pump HS CODE : 8413501090

Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free

Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic 0Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic 1

Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 90 gpm(340lpm)
Max Reciprocating Speed 200 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.2 in(5mm)
Max Air Consumption 80scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 1 1/2 in.
Fluid Outlet Size 1 1/2 in.
Net Weight PP pump 16kg; PVDF pump20kg



Packing & Shipping:

Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic 2Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic 3
Our service


* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service


Company Introduction:



Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.





Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic 4Polypropylene Plastic Diaphragm Pump 70L/S 1 1/2 Inch Fluid Handling Pneumatic 5

FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
