Stainless Steel Pneumatic Piston Drum Pump for Chemical Liquid Transfer (2:1)

Product Description

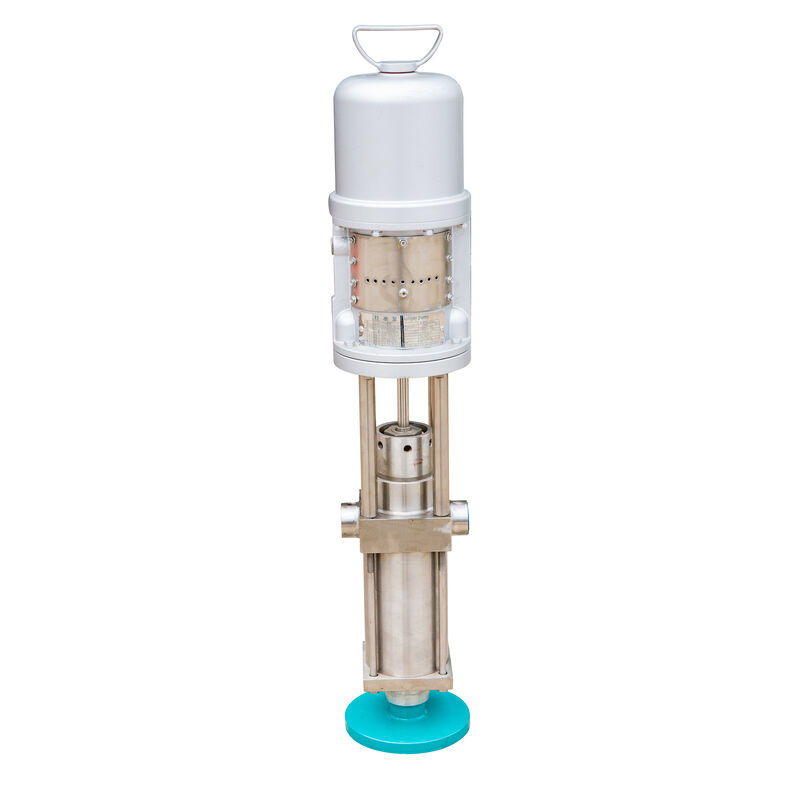

2:1 Stainless Steel Pneumatic Piston Drum Pump for Chemical Liquid Transfer

This pneumatic piston drum pump is engineered for reliable, high-efficiency transfer of low to medium viscosity liquids such as chemicals, solvents, lubricants, and water-based fluids. Constructed with an SS304/316 stainless steel body, it delivers excellent corrosion resistance and long service life in demanding industrial environments.

Key Features:

• High Pressure: Max working pressure of 290 psi (2.0 MPa / 20 bar) for powerful, consistent discharge
• High Flow: Max flow rate of 36 gpm (75 L/min) for fast, efficient liquid transfer
• Strong Suction: Max suction lift of 6 m for reliable self-priming performance
• Solid Handling: Handles particles up to 3.0 mm without clogging
• Corrosion-Resistant Construction: SS304/316 stainless steel body resists rust and chemical attack
• Pneumatic Drive: Air-operated design is safe for flammable or explosive environments; no electric motor required
• Easy Installation: 1-1/2" fluid inlet and 1" fluid outlet for quick, secure connections

Typical Applications: Suitable for transferring chemicals, paints, inks, solvents, oils, and other liquids in chemical processing, manufacturing, automotive, and general industrial applications.
