RV80 Stainless Steel Diaphragm Pump with 120psi Max Working Pressure and 275 gpm Max Flow Rate

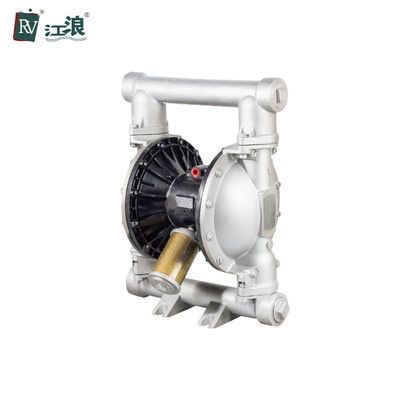

Large Image : RV80 Stainless Steel Diaphragm Pump with 120psi Max Working Pressure and 275 gpm Max Flow Rate

Product Details:

Contact Now

RV80 Stainless Steel Diaphragm Pump with 120psi Max Working Pressure and 275 gpm Max Flow Rate

Description

Max Working Pressure:	120psi(0.84Mpa ,8.4bar)	Max Flow Rate:	275 Gpm(1041 Lpm)
Max Reciprocating Speed:	135cpm	Max.Suction Height (Dry Sucking):	5m
Max.permitted Grain:	9.4mm	Max Air Consumption:	180scfm(90L/s)
Air Inlet Size:	3/4 In.npt(f)	Air Outlet Size:	1 In.npt(f)
Fluid Inlet Size:	3 In.npt(f)	Fluid Outlet Size:	3 In.npt(f)
Weight:	Aluminum Pump 77kg; Stainless Steel 110.0kg; Ductile Iton 180kg
Highlight:	stainless steel diaphragm pump , RV80 diaphragm pump with warranty , industrial stainless steel diaphragm pump

RV80 Diaphragm Pump (Stainless Steel)

High-performance industrial pump engineered for demanding applications, ensuring reliable fluid transfer for a wide range of viscous materials. Heavy-duty construction and large flow paths provide exceptional performance and longevity, minimizing downtime and maximizing operational efficiency.

Internally Threaded ANSI Center-Porting
Bolted Leak-Free Flanged Connections
Large Flow Paths for High Viscosities
Easy Air Valve Maintenance
Heavy-Duty Construction

Typical Applications: Chemical transfers, Filter press-feed, Dewatering.

Key Performance Attributes

Fluid Flow

Up to 275 GPM (1040 LPM)

Porting Size

3 in (76.2 mm) ANSI Center-Porting

Thread Type

Internal 3" NPT or BSPT

Connection Type

Bolted Flanged Connections

Technical Specifications

Parameter	Value
Max Working Pressure	120 psi (0.84 Mpa, 8.4 bar)
Max Flow Rate	275 gpm (1041 lpm)
Max Reciprocating Speed	135 cpm
Max Suction Height (Dry Sucking)	5 m
Max Permitted Grain	9.4 mm
Max Air Consumption	180 scfm (90 L/s)
Air Inlet Size	3/4 in. NPT (f)
Air Outlet Size	1 in. NPT (f)
Fluid Inlet Size	3 in. NPT (f)
Fluid Outlet Size	3 in. NPT (f)
Weight	Aluminum pump: 77kg; Stainless steel: 110.0kg; Ductile Iron: 180kg
